635nm 5mw Seiko Very fine red line laser High stable industrial positioning

635nm 5mw Seiko Very fine red line laser High stable industrial positioning



[Specifications]:
Wavelength: 635nm
Output power: 0.4-5mW（Can be customized）
Class Level: class II
Working voltage: DC 2.8-5.2 (V)
Working current: ≤45mA

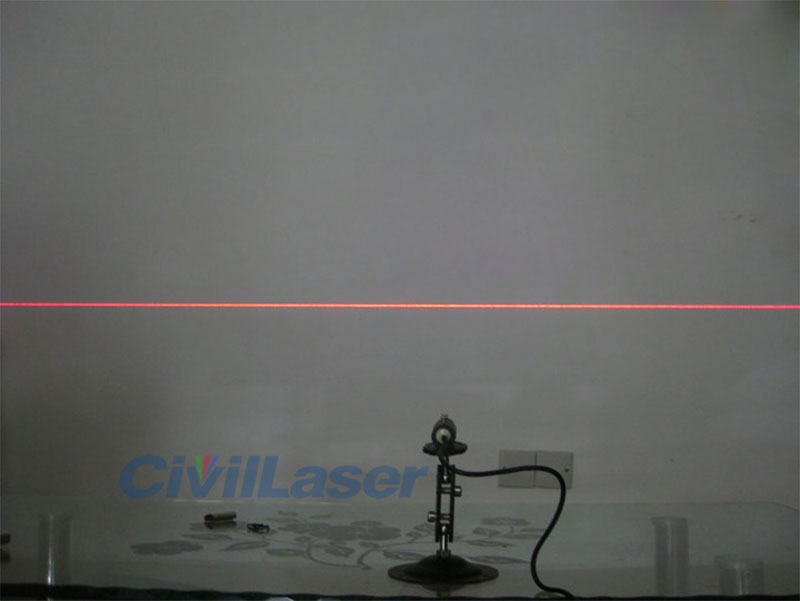

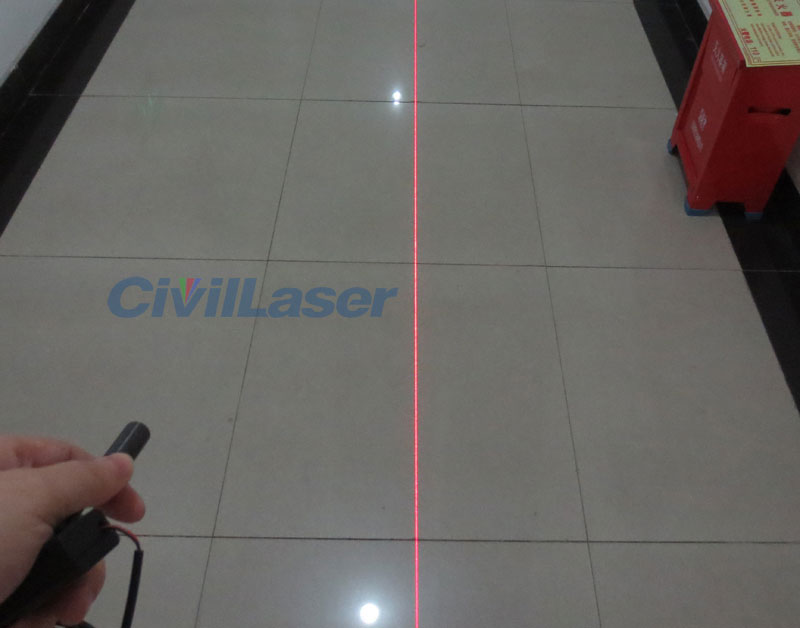

Laser Shape:Line

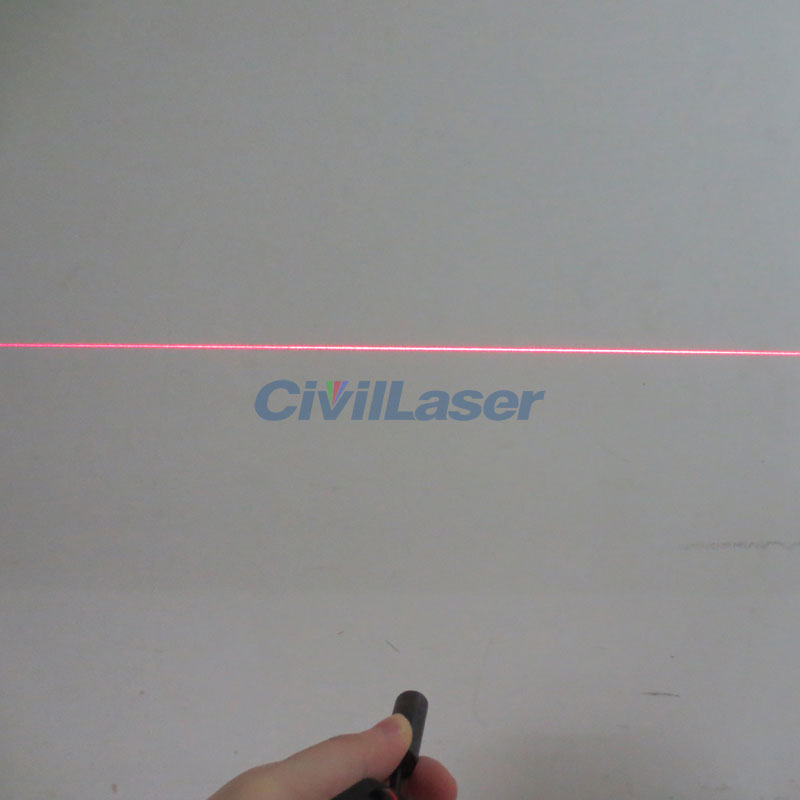

Line width: 0.5mm linewidth at 1.5m working distance, 1.5mm line width at 5m working distance

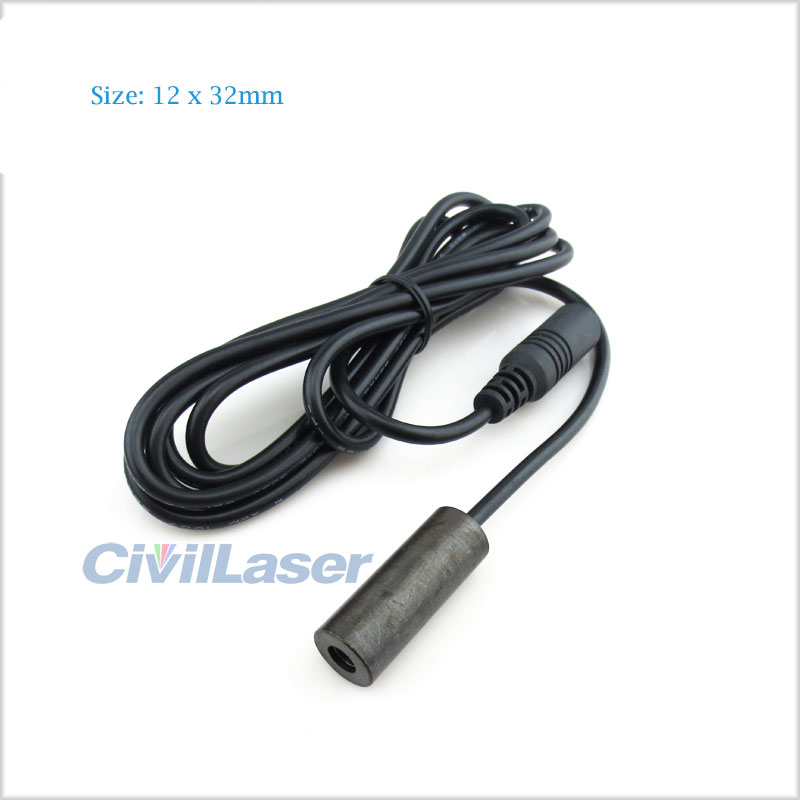

Dimension: φ12*32mm
Operation mode: Continuous laser
Incentive method: Electrically excited laser
Working medium: semiconductor laser
Structural features:High quality laser diode + metal shell + high quality lens + constant power circuit board + wire



Advantage：
1, Line width 0.5mm at 1.5m distance 1.5mm at 5m distance;

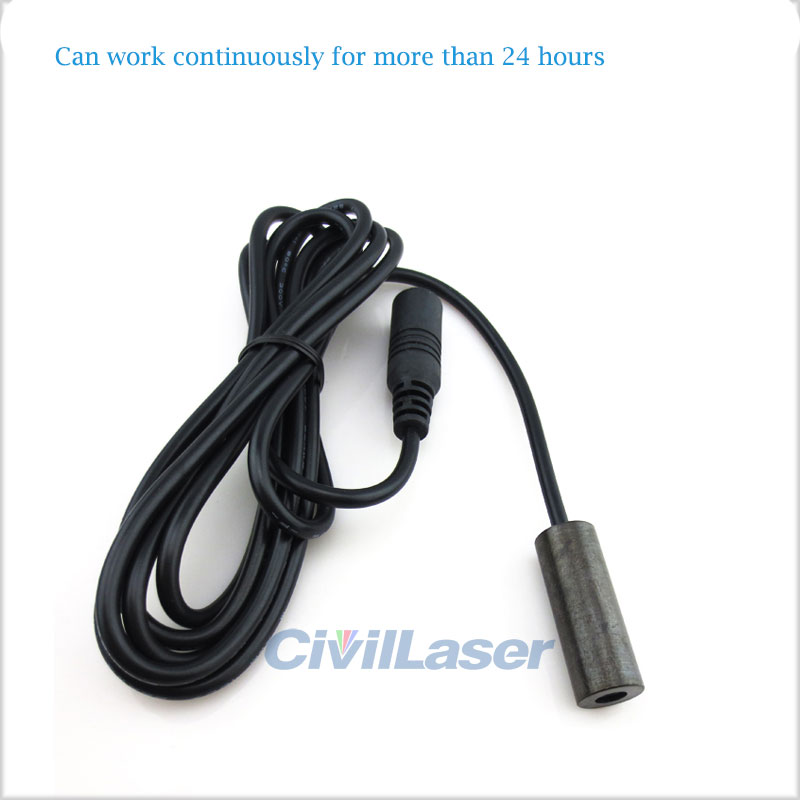

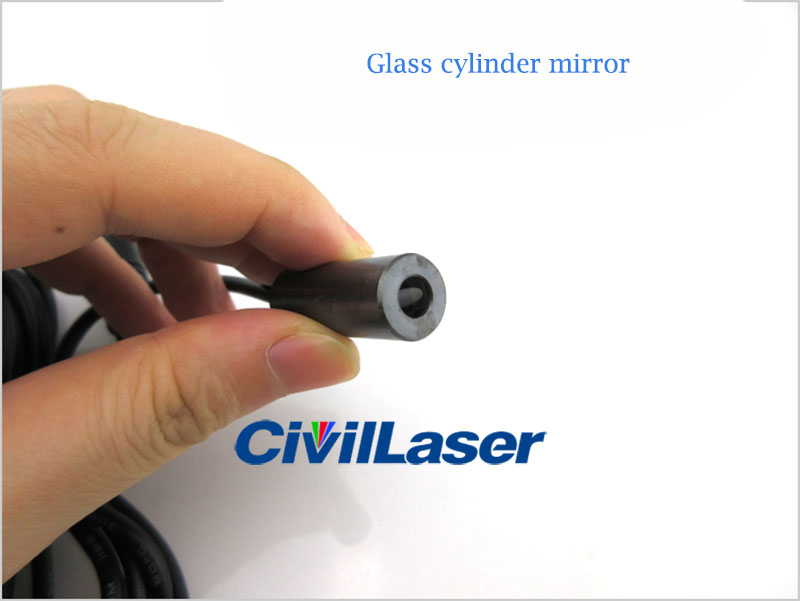

2, The new imported tube core high-quality glass cylindrical mirror can continuously working for 24 hours a day;
3, The interior is filled with heat dissipating silica gel and AB glue, which can fully heat dissipating, shock proof and fall resistant;
4, The shell is aviation aluminum coated with insulating paint, which can not only fully dissipate heat, but also prevent shock, fall and static electricity;

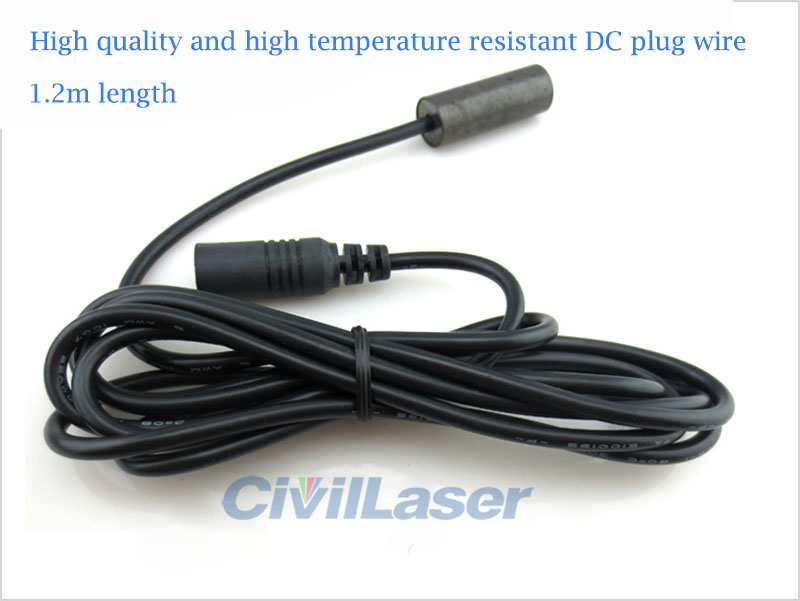

5, High temperature and corrosion resistant DC plug line is suitable for all-weather environment.
