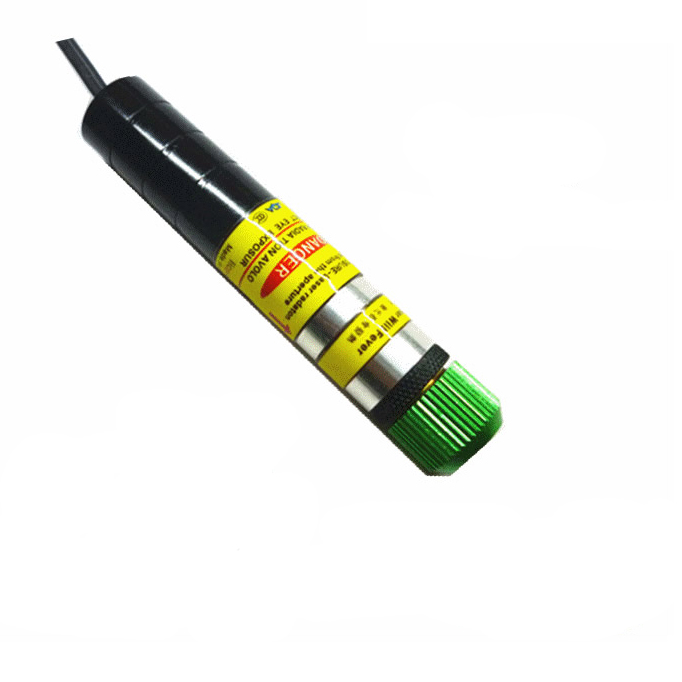

Red Green Blue line laser module 3D Scan Visual inspection Powell Lens No brightened dot

Specifications:
Wavelength and output power: 650nm/100mw, 520nm/50mw, 450nm/100mw
Working voltage: DC 2.8-5.2 (V), customizable
Working current: ≤ 500mA
Facula mode: uniform and straight line (customizable)
Line width: Adjustable

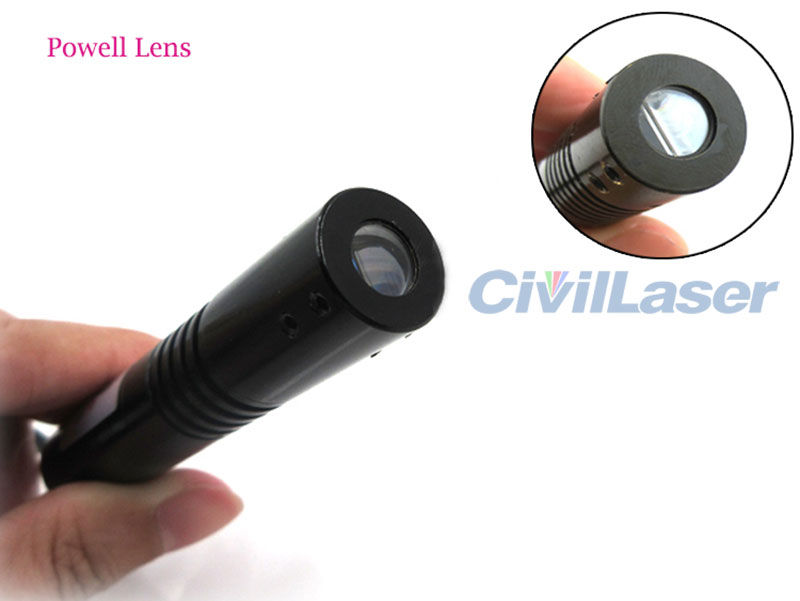

Optical lens: imported Powell Lens(no brightened dot)
Fan angle: 90 ° (customizable)

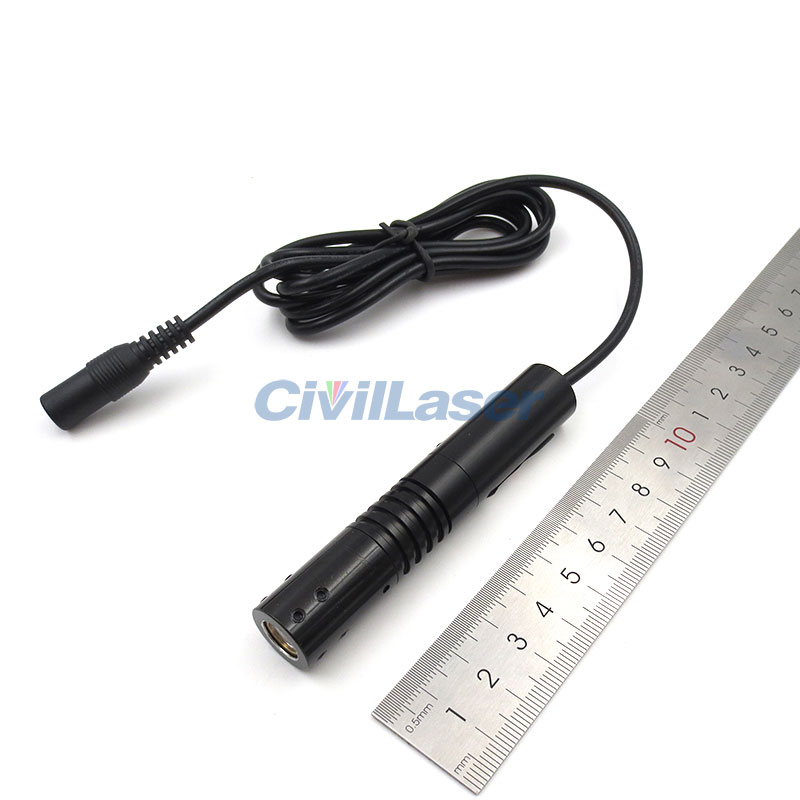

Dimension: φ16*90mm (customizable)

Advantage:

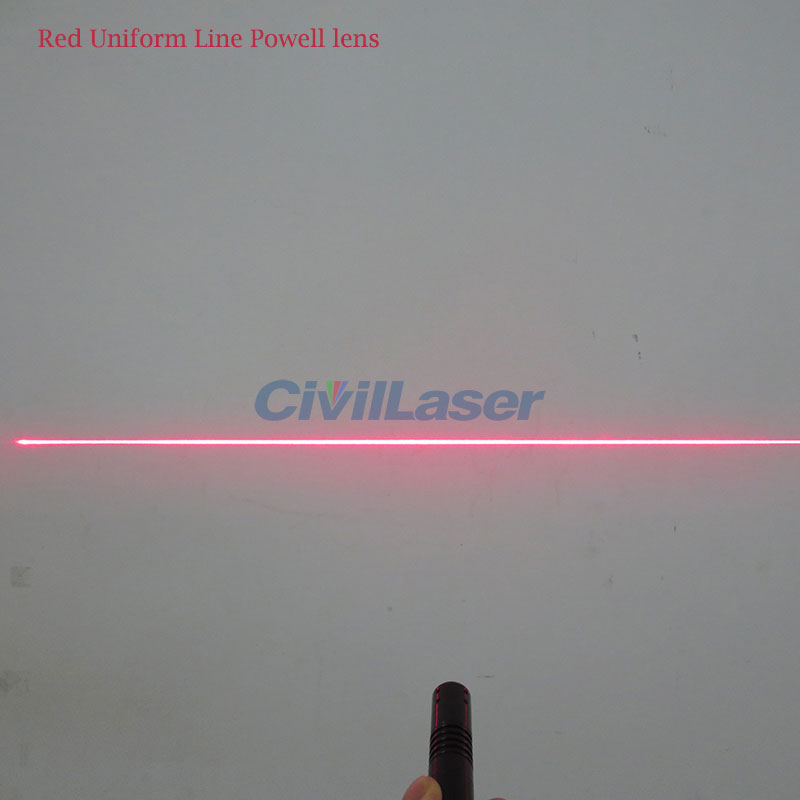

1, Original imported Powell prism is used to make a uniform line without bright spots at both ends;

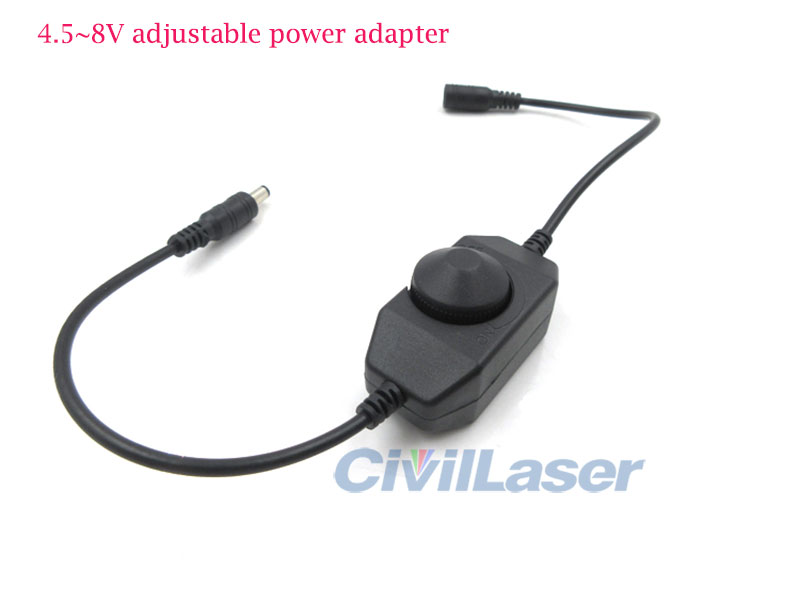

2, DC 4.5-8V adjustable power supply, you can adjust the laser's brightness;
3, The linewidth can be adjusted from 0.4mm to several centimeters to meet your different use requirements;
4, The laser light is clear and bright, soft and not dazzling;
5,  the shell is aviation aluminum coated with insulating paint, which can not only fully dissipate heat, but also prevent shock, fall and static electricity;
6, Germany imported laser diode, laser diode directly illuminated, with high stability and can be operated 24 hours a day;
7, Intelligent drive board with imported IC can supply power in 2.8-5.2v ultra wide range, and other voltages can be customized;
8, high temperature and corrosion resistant DC plug wire, suitable for all-weather and all-environment use;

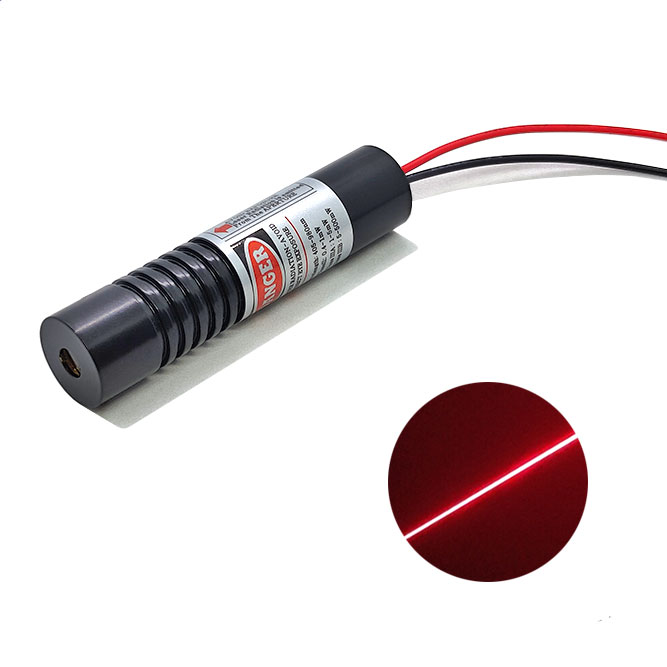

Color: Red
Installation height: 0~10m
Line Length:

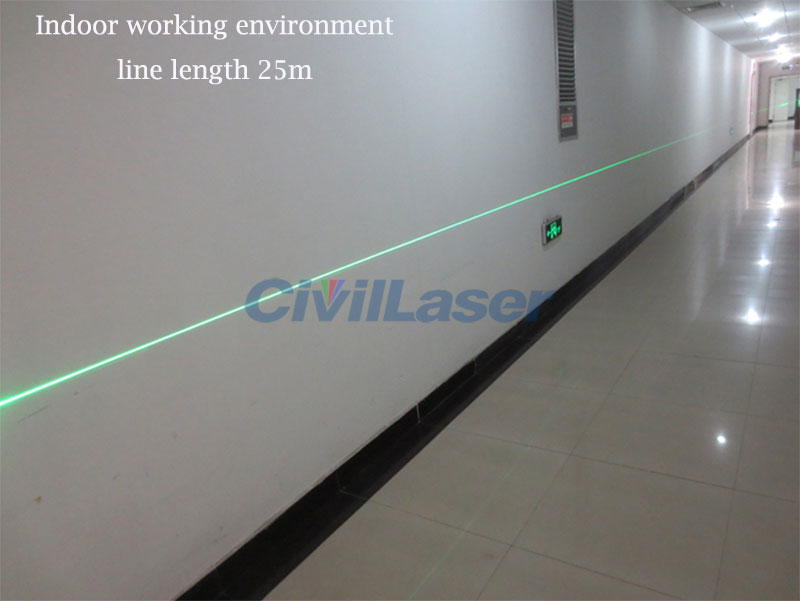

1, The indoor working environment can reach more than 25m;
2, Semi outdoor (non direct sunlight) working environment can reach 6m.

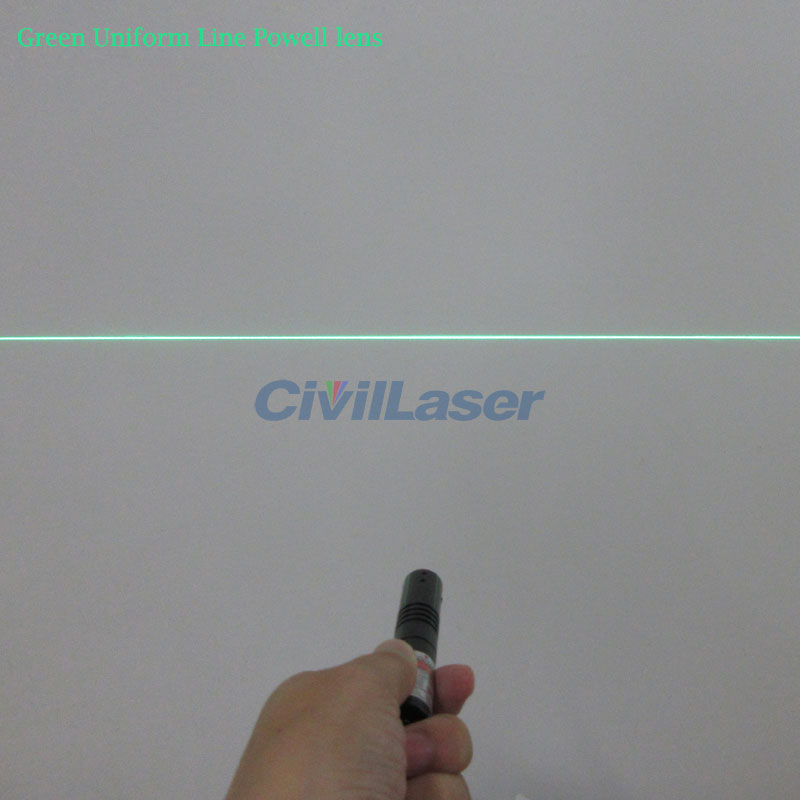

Color: Green
Installation height: 0~10m
Line Length:
1, The indoor working environment can reach more than 12m;
2, Outdoor (direct sunlight) working environment can reach 5m.

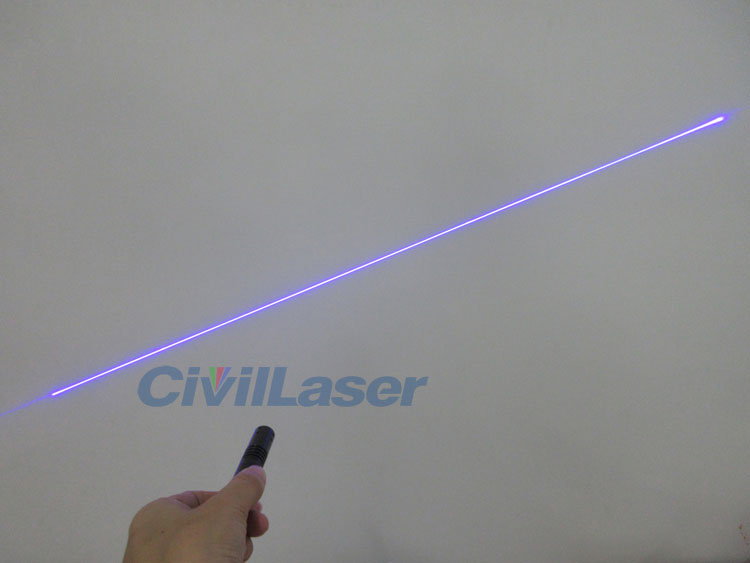

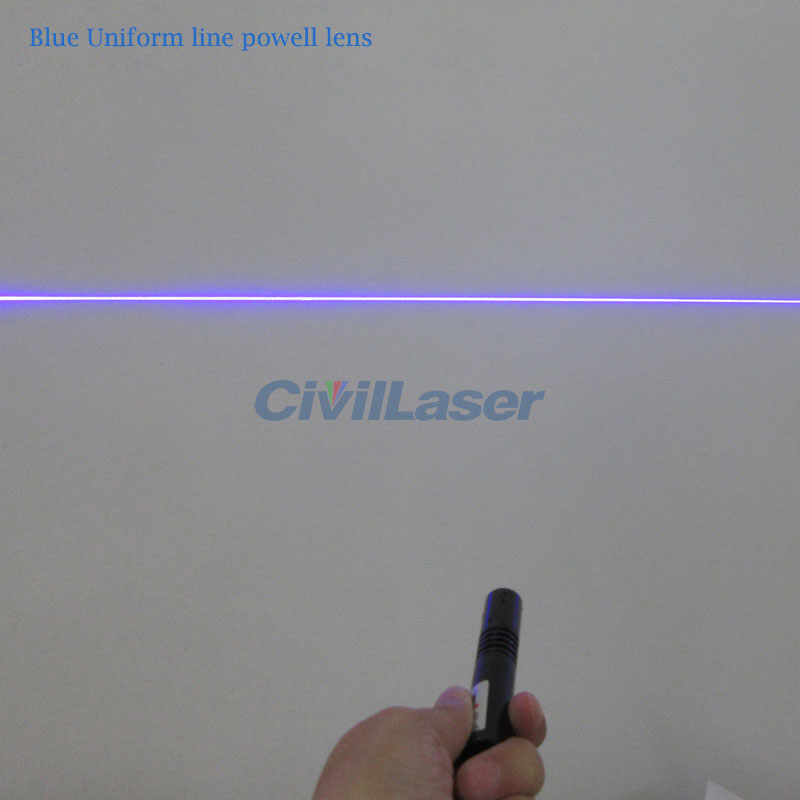

Color: Blue
Installation height: 0~10m
Focus: adjustable(working distance 0~5m)
Line Length:

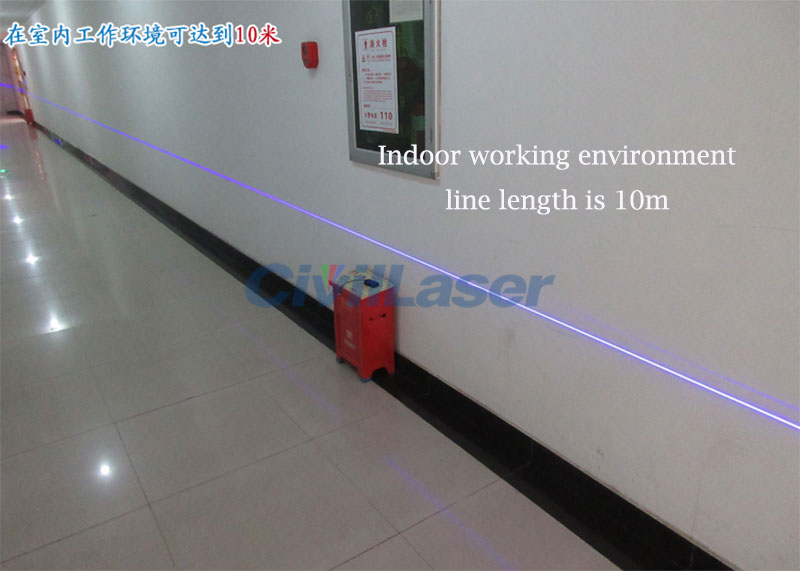

1, The indoor working environment can reach more than 10m;
2, Semi outdoor (non direct sunlight) working environment can reach 5m.
