520nm 5mW~80mW Laser Diode Module Line Crosshair Green Focus Adjustable

Starting at: $45.00

Please Choose:





Add to Cart:


520nm 5mW~80mW Laser Diode Module Line Crosshair Green Focus Adjustable

[Specifications]

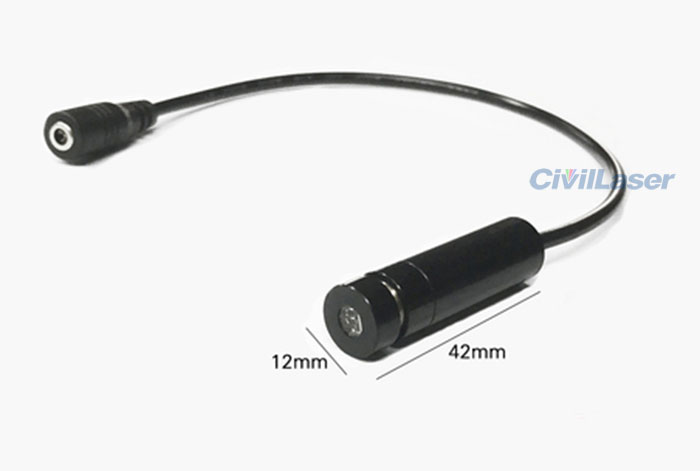

Product Name: 520nm laser mdoule
Wavlength: 520nm ± 10nm
Output Power: 50mW / 10mW / 30mW / 50mW / 80mW (Choose)

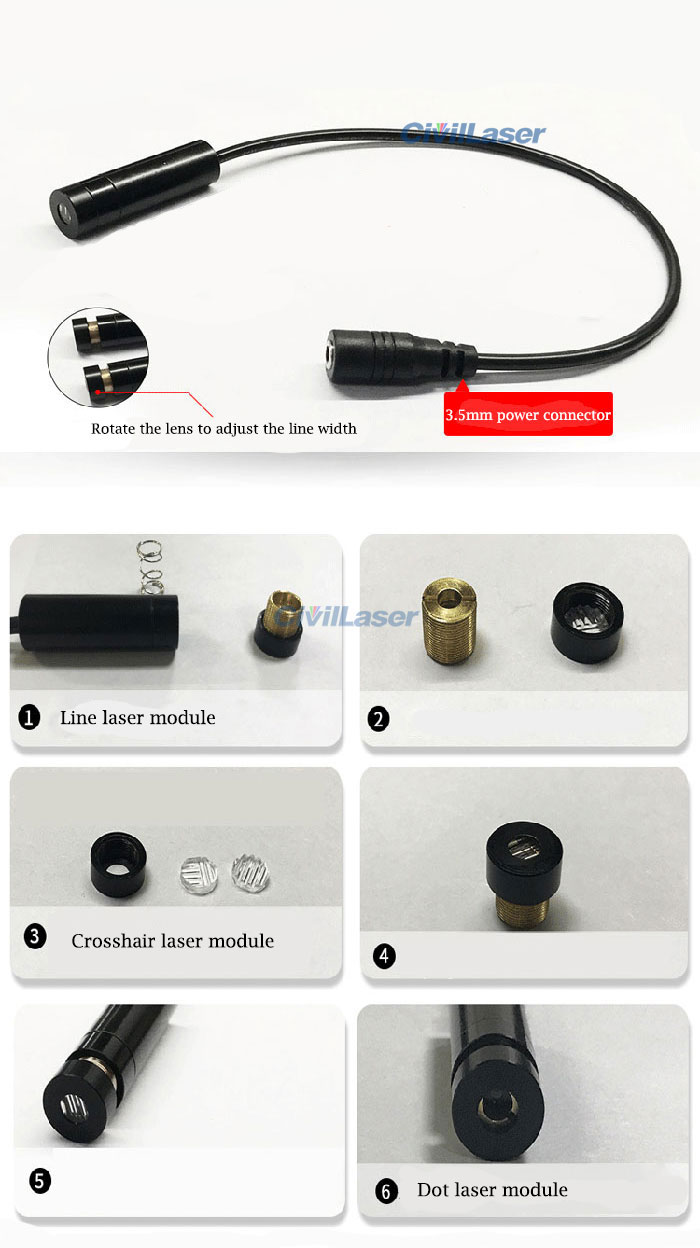

Laser Shape: Line / Crosshair (Choose)
Working Mode: CW
Material: Environmental protection aluminum
Lens Material: Acrylic lens
Surface Treatment: Fog black oxidation
Linewidth(at one meter): <3mm
Divergence Angle(Line Length): Line--88° (at 1m: line length is adout 2m)
Divergence Angle(Line Length): Cross--50° (at 1m: line length is adout 1m)
Operating Voltage: 3V
Max. Operating Current -- 5mW: <80mA
                                       -- 10mW: <80mA
                                       -- 30mW: <180mA
                                       -- 50mW: <200mA
                                       -- 80mW: <240mA
Operating Temperature: -10℃~+70℃
Storage Temperature: -40℃~+85℃
Service Life: >10000 Hrs

[Package List]

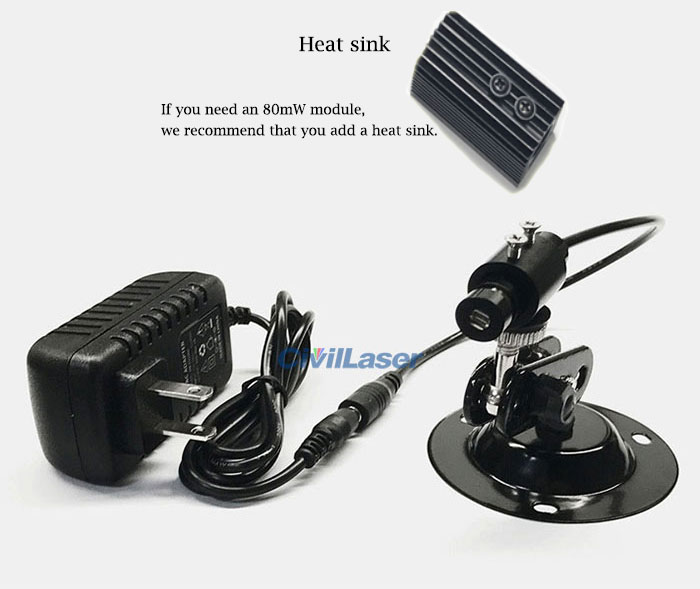

1 * Laser module
1 * Power supply
1 * Laser Holder



520nm laser module

520nm laser module

520nm laser module
