SMA905 Double-clad High Power Fiber Cables for Welding Machine

Starting at: $145.00

Please Choose:





Add to Cart:

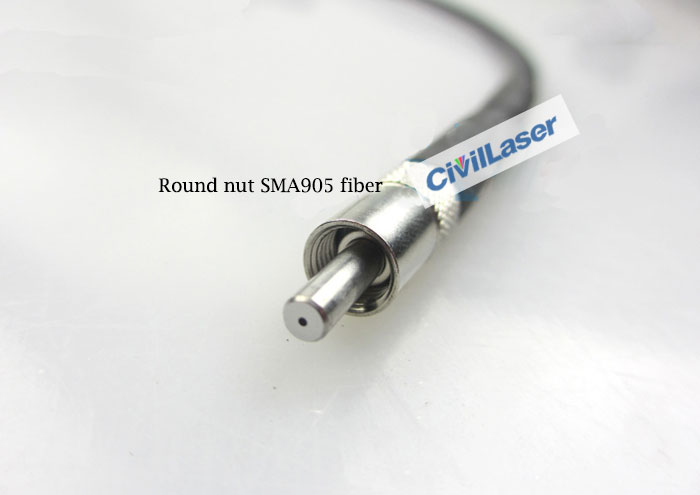

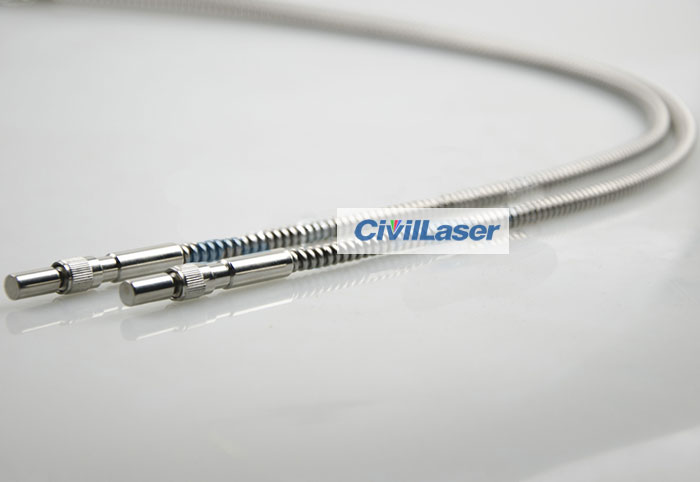

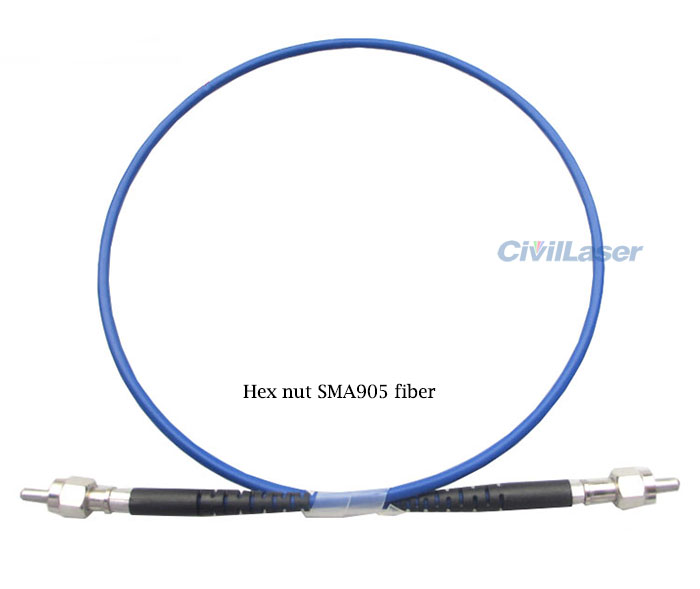

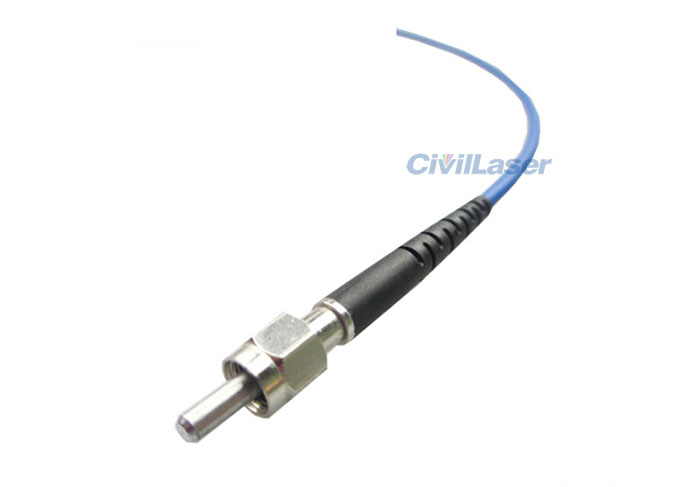

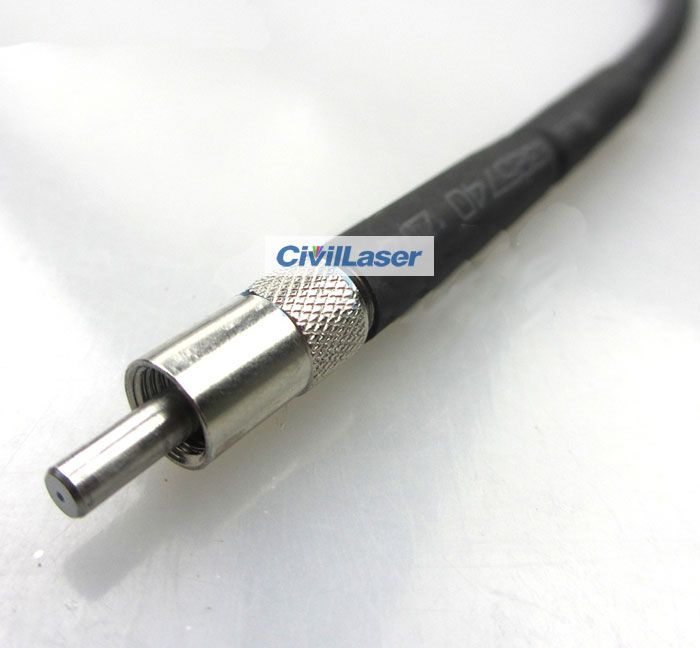

SMA905 Double-clad High Power Fiber Cables for Welding Machine

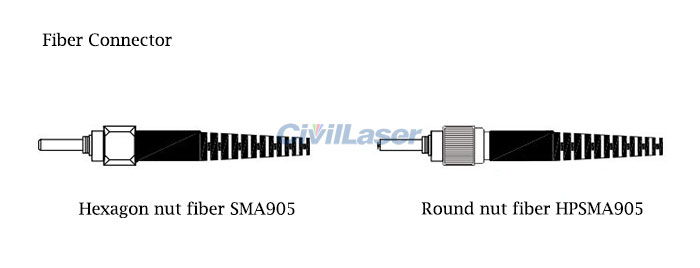

High-precision SMA905 fiber optic connector or modified SMA905 metal connector with air gap protection at the end, equipped with large-core energy fiber with end face fine grinding, laser transmission power up to 600W. Can meet the output energy of semiconductor laser / YAG laser Laser transmission. The inside of the connector adopts a ring-free protection process of the glueless process to improve the heat dissipation effect and service life of the energy fiber, and meet the requirements of higher power transmission and use such as laser welding and cutting.

[Features]
High quality imported fiber core
Good coupling and high light transmission rate
Good fatigue resistance
Large core diameter high energy double-clad fiber
High power up to 600W laser transmission power

[Applications]
Laser welding, laser cutting
Industrial robot
Industrial control, factory automation
Optical application experiments, research measurements, etc.
Medical light detecting device
Industrial silicon wafer, liquid, spectrum detection
Food safety testing
UV light for skin cosmetic applications
Automotive and aircraft as well as military applications

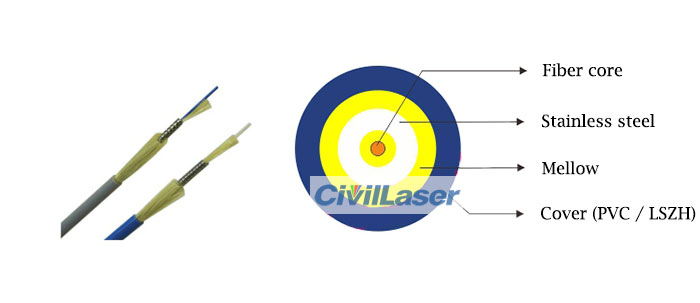

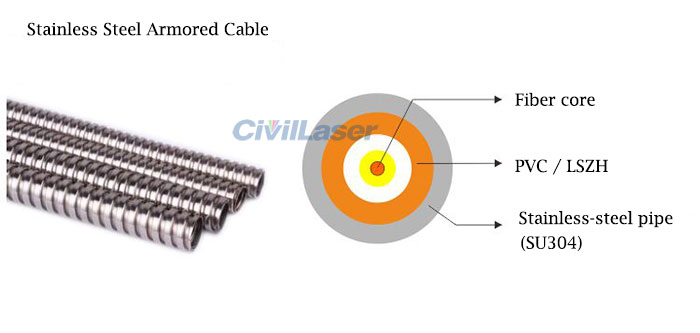

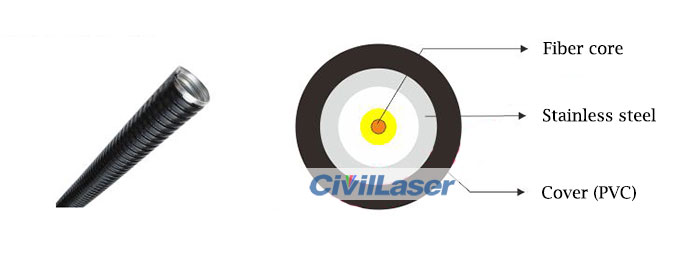

[Cable Properties]
Minimum Bend Radius: 30mm
Cable Tension: 200N
Cable Under Pressure(N/50mm): 3000
Operating Temperature: -40~+85℃

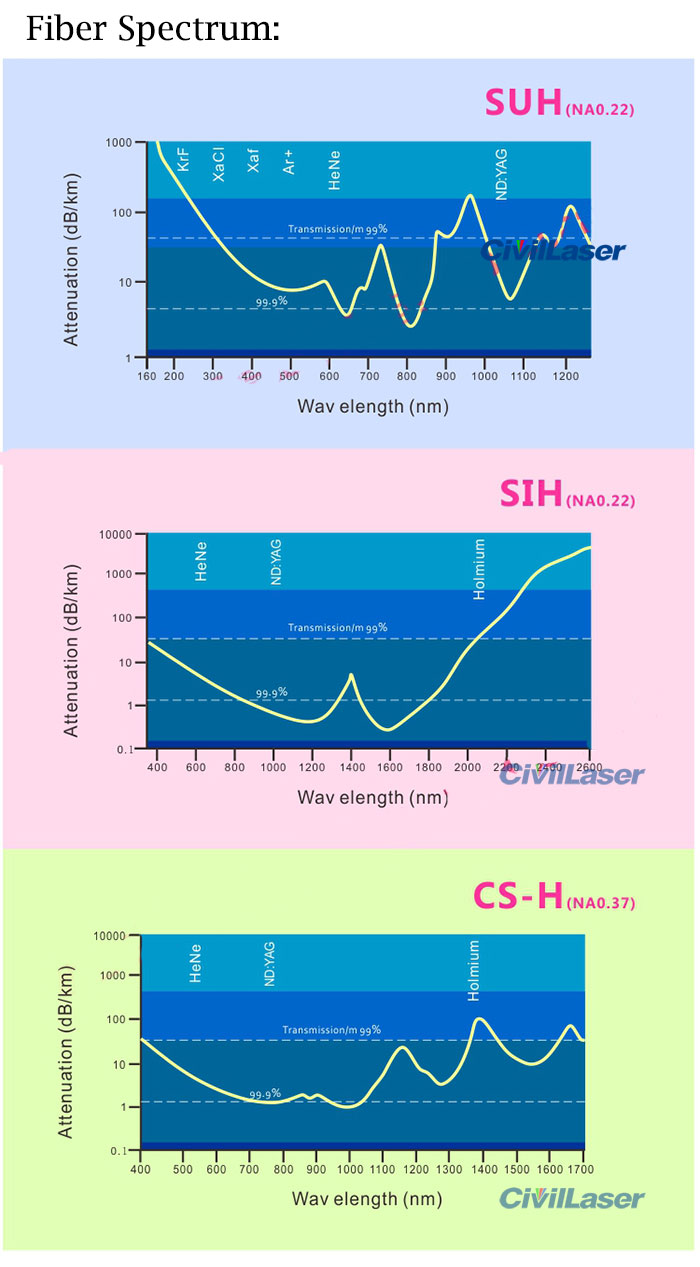

[Transmission Rate(%/m)]
UV(0.20~0.4μm): 85~98%
Visible(0.4~0.7μm): 97~99%
Near Infrared(0.76~1.6μm): 99%
He-Ne(0.6328μm): 98%
YAG(1.06μm): 98%
Argon(0.5145μm): 98%

[Specifictaion]

Parameters

200 (NA0.22)

200 (NA0.37)

SI400

SI600

SI1000

Fiber Core Diameter(μm)

200

200

400

600

1000

Cladding Diameter(μm)

220

230

500

750

-

Fiber Core Material

Pure quartz

Fiber Cladding Material

Fluorine-doped quartz

Fluorine-doped plastic

Quartz

Quartz

Fluorine-doped plastic

Coating Material

Double layer UV curable acrylic resin

ETFE

Silicone resin

Silicone resin

Silicone resin

Minimum Bending Radius

22mm

13.8mm

<300D(D=core)

<300D(D=core)

<60D(D=core)

Core: Cladding

1:1.1

1:1.15

1:1.25

1:1.25

1:1.05 / 1:1.4

Numerical Aperture(NA)

0.22

0.37

0.20

0.20

0.20~0.37

Wavelength(nm)

200~1200 / 400~2200

400~2200

400~2200

400~2200

400~2200

Fiber Length (m)

1m /2m (Customizable)

Operating Temperature (℃)

-40 ~ +85℃

Note: Core diameter 500μm can be customized.
