D80 Connectors High-Power Delivery Fiber 200μm~600μm ranging 400nm~2400nm

This fiber is matched with air gap and sapphire-protected high-precision D80 connector for high-power laser flexible transmission of single-fiber 600W and below. The transmission efficiency is over 90%, and the working performance is stable. The inside of the connector adopts a ring-free protection process of the glueless process to improve the heat dissipation effect and service life of the energy fiber, and meet the requirements of higher power transmission and use such as laser welding and cutting.

[Features]

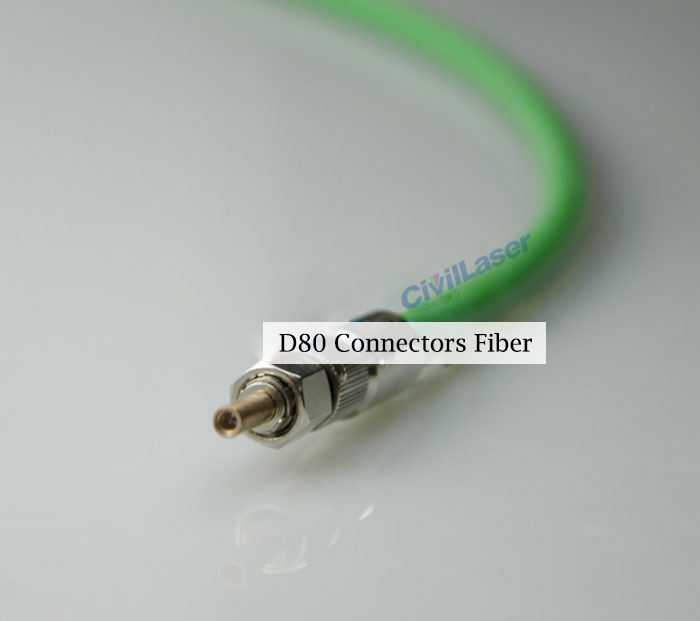

Sapphire protection connector
With air, no glue process

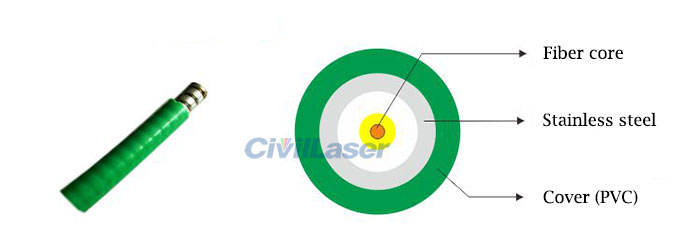

High quality stainless steel armored hose protection

[Applications]
High power laser flexible transmission
Laser welding, cutting
Laser Marking
Laser cleaning

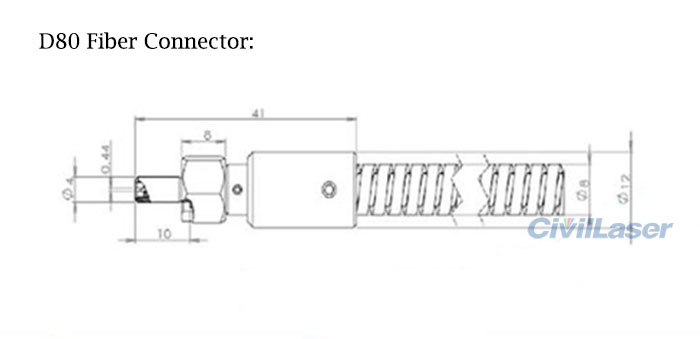

[Connector Properties]
Connector Type: D80
Connector Ferrule Diameter: 4mm
Connector Peripheral Diameter: 10mm
Connector Concentricity: <6μm

[Cable Properties]
Cable Outer Diameter: 7.0mm
Minimum Bend Radius: 5.0mm
Cable Tension: 200N
Cable Under Pressure(N/50mm): 3000


[Specifictaion]

Parameters

ST200E

ST300E

ST400E

ST600F

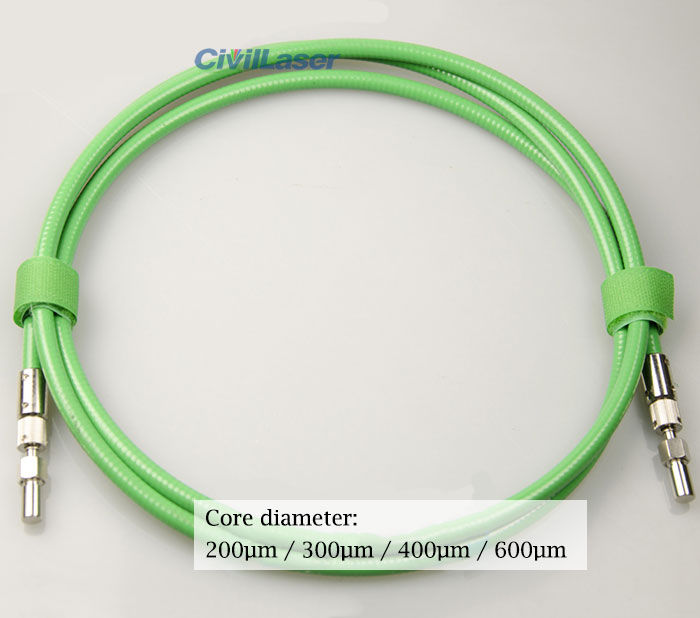

Fiber Core Diameter(μm)

200

300

400

600

Cladding Diameter(μm)

500

500

500

750

Cover Diameter(μm)

780

780

780

1100

Sheath Diameter(μm)

1300

1300

1300

1700

Cable Protection Tube Diameter (mm)

8.0

Fiber Core Material

Low-OH quartz

Fiber Inner Cladding Material

Fluorine-doped quartz

Fiber Outer Cladding Material

Fluorine-doped resin material

Sheath Material

ETFE

Numerical Aperture (NA)

0.22

Light Receiving Angle

25.4°

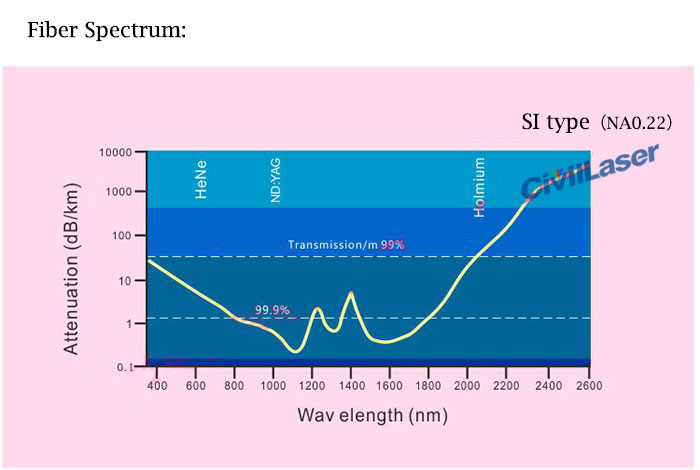

Working Wavelength (nm)

400~2500nm

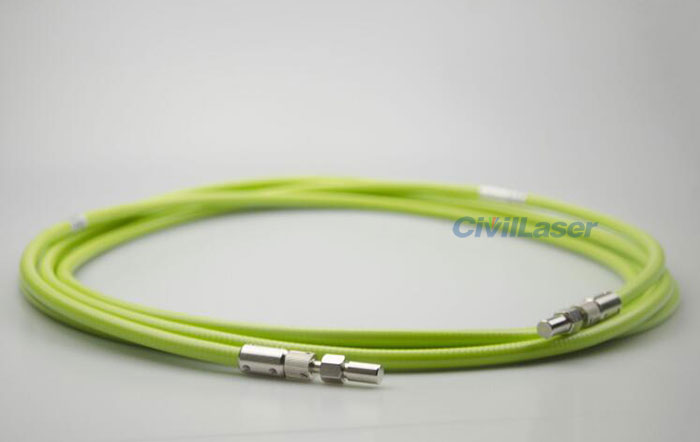

Fiber Length (m)

3m / 5m (Customizable)

Operating Temperature (℃)

-40 ~ +85
