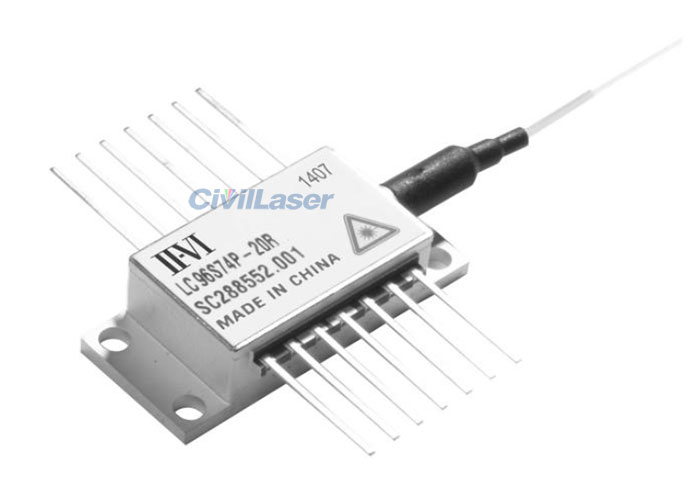

II-VI 976nm KFP=400mW DFB Laser Diode LC96Z400-76 14PIN with SM Fiber

$448.00

Add to Cart:


II-VI 976nm KFP=400mW DFB Laser Diode LC96Z400-76 14PIN with SM Fiber

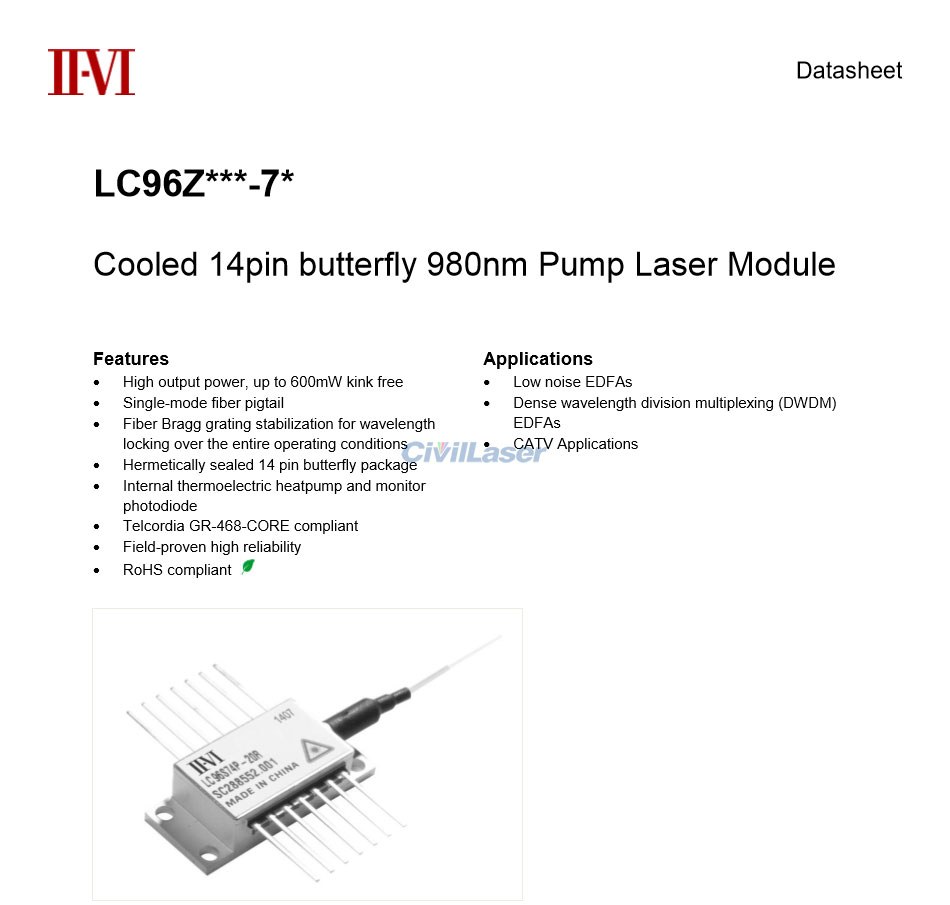

[Features]
High output power, up to 600mW kink free.
Single mode fiber pigtailed.
Fiber bragg grating stabilization for wavelength locking over entire operating condition.
Interal thermoelectric heatpump and monitor photodiode.
Hermetically sealed 14 pin butterfly package.
Telcordia GR-468-CORE compliant.
Filed-proven high reliablity.
RoHS compliant.

[Applicaitions]
Low noise EDFAs
Dense wavelength division Multiplexing (DWDM) EDFAs
CATV applications

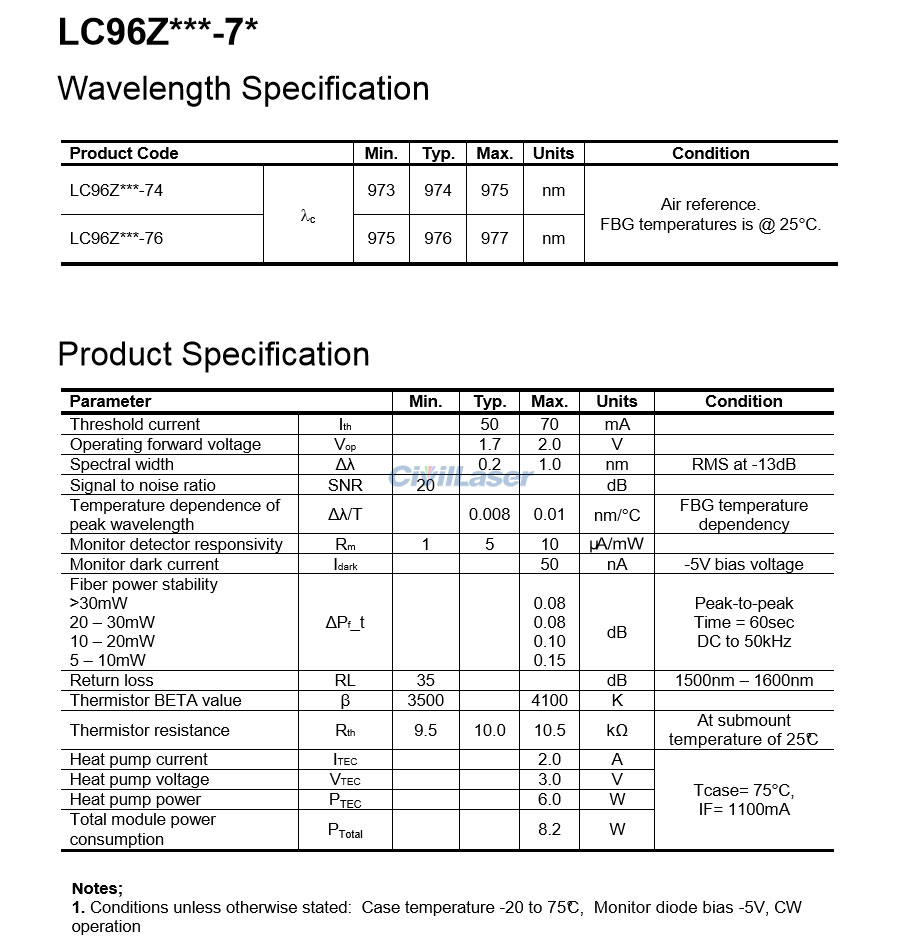

[Specification]
Product Name: II-VI 976nm 400mW DFB Laser Diode
Centre Wavelength: 976nm
Thresold Current: 50mA
Operating Forward Voltage: 1.7~2.0V
Spectral Width: 0.2~1.0nm
Signal to Noise Ratio(SNR): 20dB
Heat Pump Current: 2.0A
Heat Pump Voltage: 3.0V
Heat Pump Power: 6W

976nm 400mW DFB Laser Diode

976nm 400mW DFB Laser Diode

976nm 400mW DFB Laser Diode

976nm 400mW DFB Laser Diode
