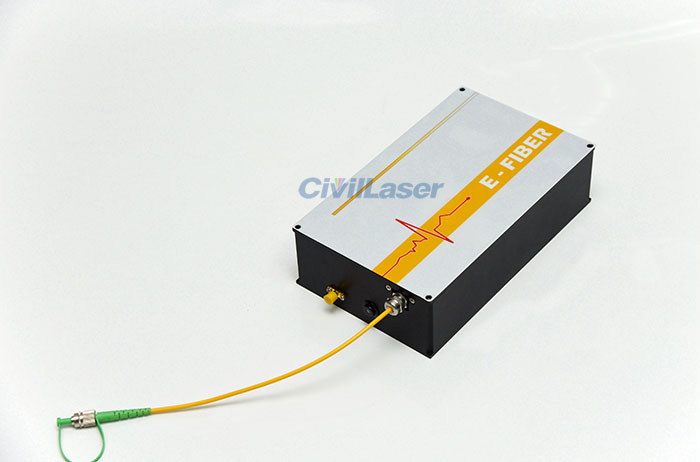

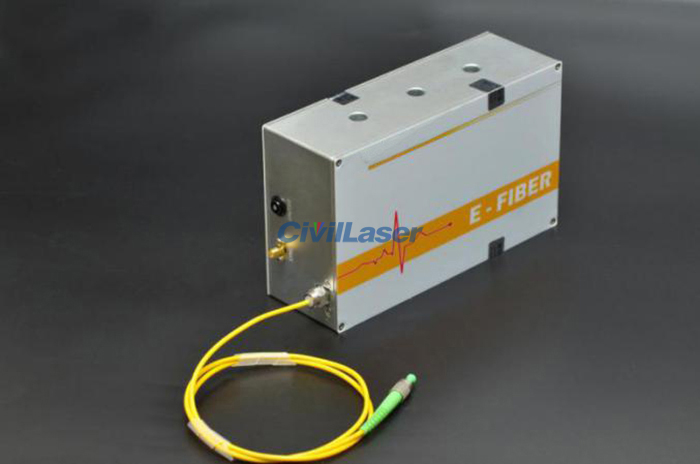

Ultra-Fast Laser 1560nm Femtosecond Pulse Fiber Laser PM Fiber FSPL-1560-90-100-80-PM-M65
The 1560nm band ultrafast laser integrates the latest femtosecond laser technology, uses high-performance rare earth optical fiber as the working medium, and combines high-precision dispersion compensation technology and active servo system to achieve stable output of 1560nm band femtosecond pulse laser. It can start automatically with one button, work stably and maintenance-free for a long time, and has the characteristics of extremely narrow laser pulse and high pulse peak power. It has wide applications in optical frequency comb, supercontinuum, terahertz THz and other fields.
Accept customization of pulse width, power, repetition frequency and other parameters.
[Features]
Pulse width <90 fs
1560 nm band
Self-starting and maintenance-free
Full protection and high stability
[Application]
Optical frequency comb
Supercontinuum generation
Terahertz wave
Ultrafast laser phenomenon
[Specifications]
| Parameter |
Unit |
Default Value |
Remarks |
| Model |
|
FSPL-1560-90-100-80-PM-M65 |
|
| Wavelength |
nm |
1560 ±30 |
|

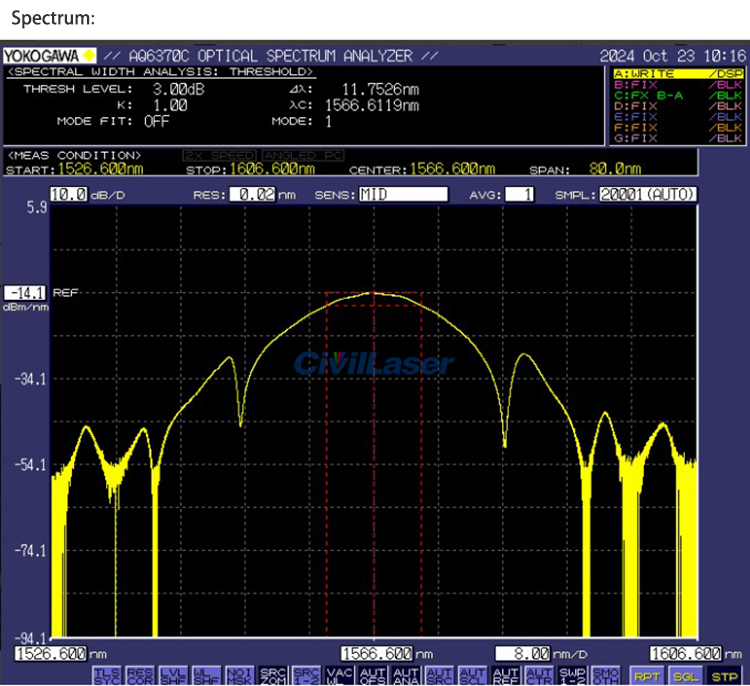

| Spectral Width |
nm |
≥60 |
whole width |

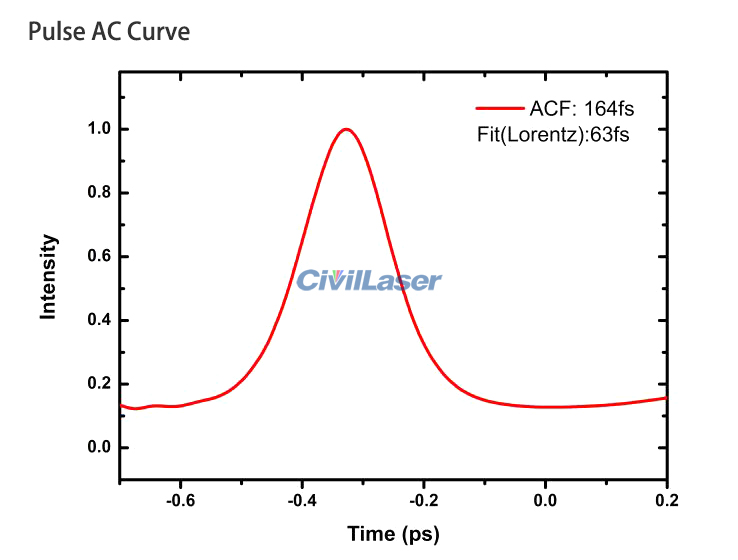

| Pulse Width |
fs |
<90（typ. 60fs） |
50/100/200 / 500fs customizable |
| Average Power |
mW |
≥100 |
1~120mW customizable |

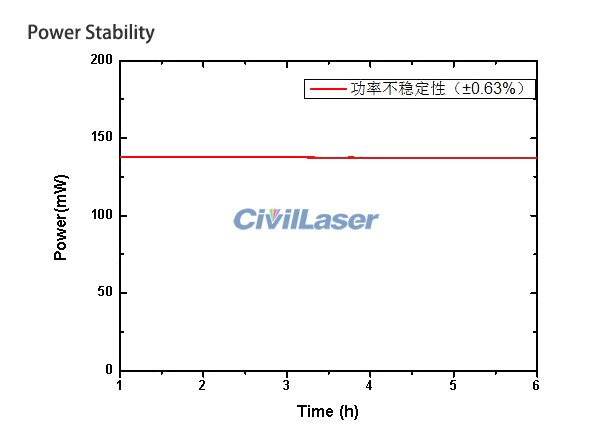

| Power Instability |
|
< ±1% |
@6 hours |

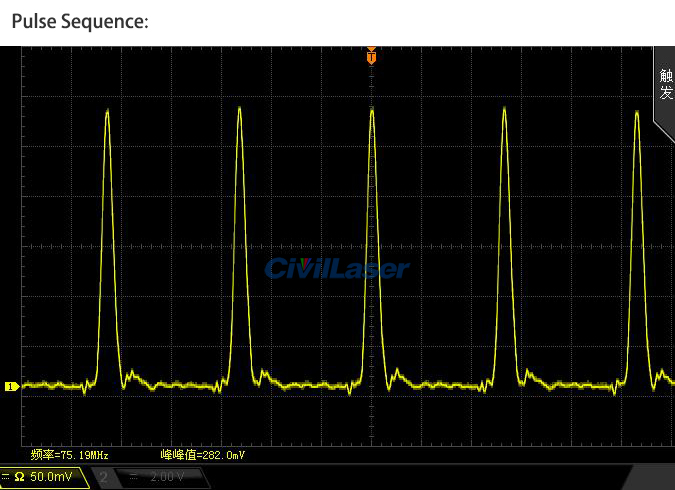

| Repeat Frequency |
MHz |
80~100 ±1 |
|
| Repetition Frequency Instability |
Hz |
<100 |
@1hour |
| Single Pulse Energy |
nJ |
≥1 |
|
| Laser polarization state |
|
Linear polarization |
|
| Output Coupling Fiber Type |
|
PM1550 polarization-maintaining fiber |
|
| Fiber Interface |
|
FC/APC |
Slow axis alignment |
| Fiber Length |
m |
1 |
|
| Preheat Time |
min |
< 0.5 |
|
Electrical and environmental parameters：
| Parameter |
Module Type |
| Control Mode |
Button / /RS232 or USB communication |
| Synchronous Electrical Signal Interface |
SMA |
| Power Supply |
12V DC, <20W |

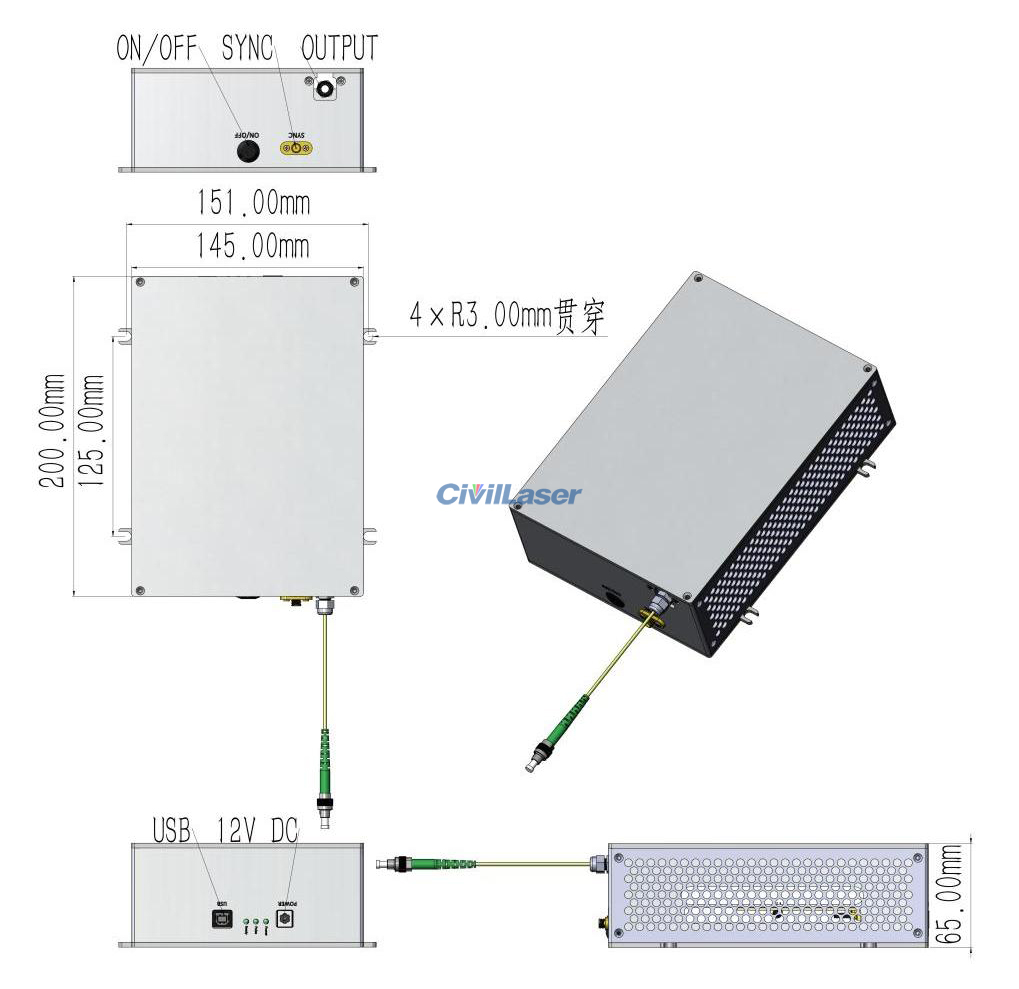

| Size |
200(W)×145(D)×65(H)mm |
| Operating Temperature |
5 ~ 35°C |
| Operating Humidity |
0~70% |
