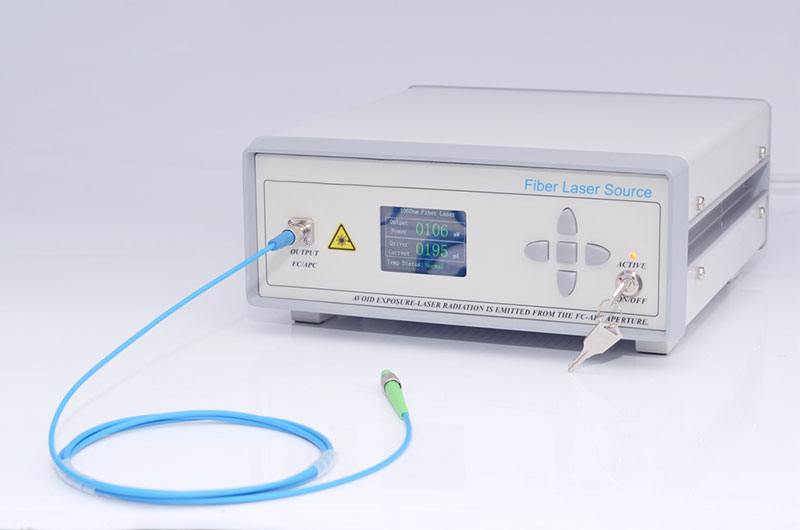

1565nm 1000mW Single Mode Fiber Laser Source Output Power Adjustable FL-1565-1000-SM-B
The 1565nm narrow linewidth laser uses a butterfly-shaped DFB semiconductor laser chip with a wavelength of 1565nm and a single-mode fiber output.
It uses a professionally designed driver circuit and TEC control to ensure safe and stable laser operation.
[Features]
1. Narrow line width
2. Power and spectral stability
[Application]
1. Optical fiber sensing
2. Thulium Doped Fiber Laser Pumping
3. Nonlinear Optics Research
[Specifications]
|
Parameter
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
-
|
FL-1565-1000-SM-B
|
|
|
Working wavelength
|
nm
|
1565
|
±0.1nm
|
|
Output Power
|
mW
|
1000
|
|
|
Power Adjustment Range
|
-
|
10%~100%
|
|
|
Power Adjustment Accuracy
|
mW
|
1
|
|
|
Spectral Width
|
nm
|
<0.1
|
|
|
Output Isolation
|
dB
|
>50
|
|
|
Pigtail Connector Type
|
-
|
FC/APC
|
|
|
Output Pigtail Type
|
-
|
SMF-28 single mode fiber
|
L=1m
|
|
Electrical and environmental parameters
|
DeskTop Type
|
|
Control method
|
Touch screen/RS232 serial communication
|
|
Communication interface
|
DB9 Female(Default not include)
|
|
Power supply
|
AC 100~240V
|
|
Size
|
255(W)×322(D)×115(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
