532nm 500mw Green Fiber Coupled Raman Laser 0.1nm Narrow Linewidth

$2,195.00

Add to Cart:


532nm 500mw Green Fiber Coupled Raman Laser 0.1nm Narrow Linewidth

[Features]
1. Spectral linewidth <0.1nm
2. High power stability: <3%

[Application]
2. Raman spectroscopy
2. Sensing

[Specification]
Product Name: Narrow linewidth raman laser
Wavelength: 532nm
output Power: 500mW (at fiber output power)
Optical Fiber: 100μm / NA 0.22 / SMA / 1 Meter
Operating Temperature: 0°C~45°C
Storage Temperature:  -40°C~85°C

Parameter Work condition Symbol Min. Typical Value Max. Unit
Output Power APC mode PO     500 mW
Noise RMS(10Hz-100MHz) N     1 %
Beam Diameter Po , 1/e2     2.0   mm
Beam Divergence Angle Po , 1/e2     0.5   mrad
Spot Roundness     90     %
Power Stability 2hrs Ps   1 3 %

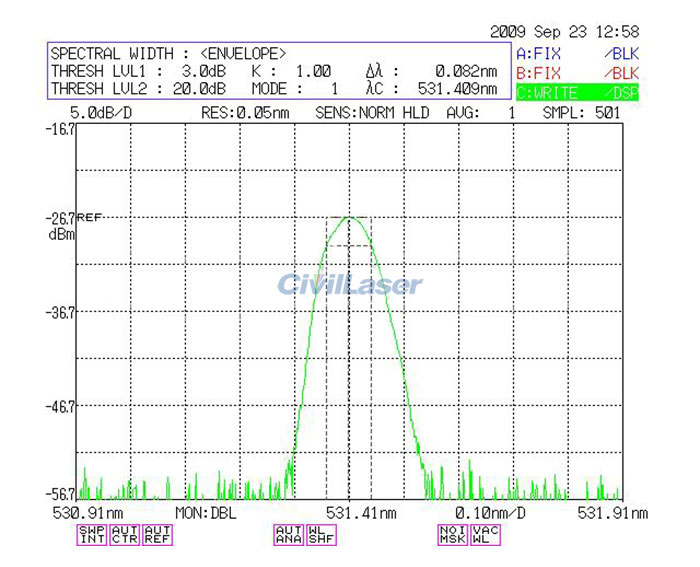

Spectral Linewidth FWHM PO     <0.1 nm
Spectral Stability λs PO     <0.1 nm
Central Wavelength @PO λc 531.5 532 532.5 nm
Service Life @PO MTBF 5000     Hrs



532nm narrow linewidth fiber raman laser

532nm narrow linewidth fiber raman laser

532nm narrow linewidth fiber raman laser

532nm narrow linewidth fiber raman laser

532nm narrow linewidth fiber raman laser

532nm narrow linewidth fiber raman laser

2020 New Model (For ≥500mW FC Laser):
1. All-in-one integrated machine: laser and power together, not separated.
2. Customizable software control. (Default without. Add $ 150 for software control.)

fiber coupled laser

fiber coupled laser

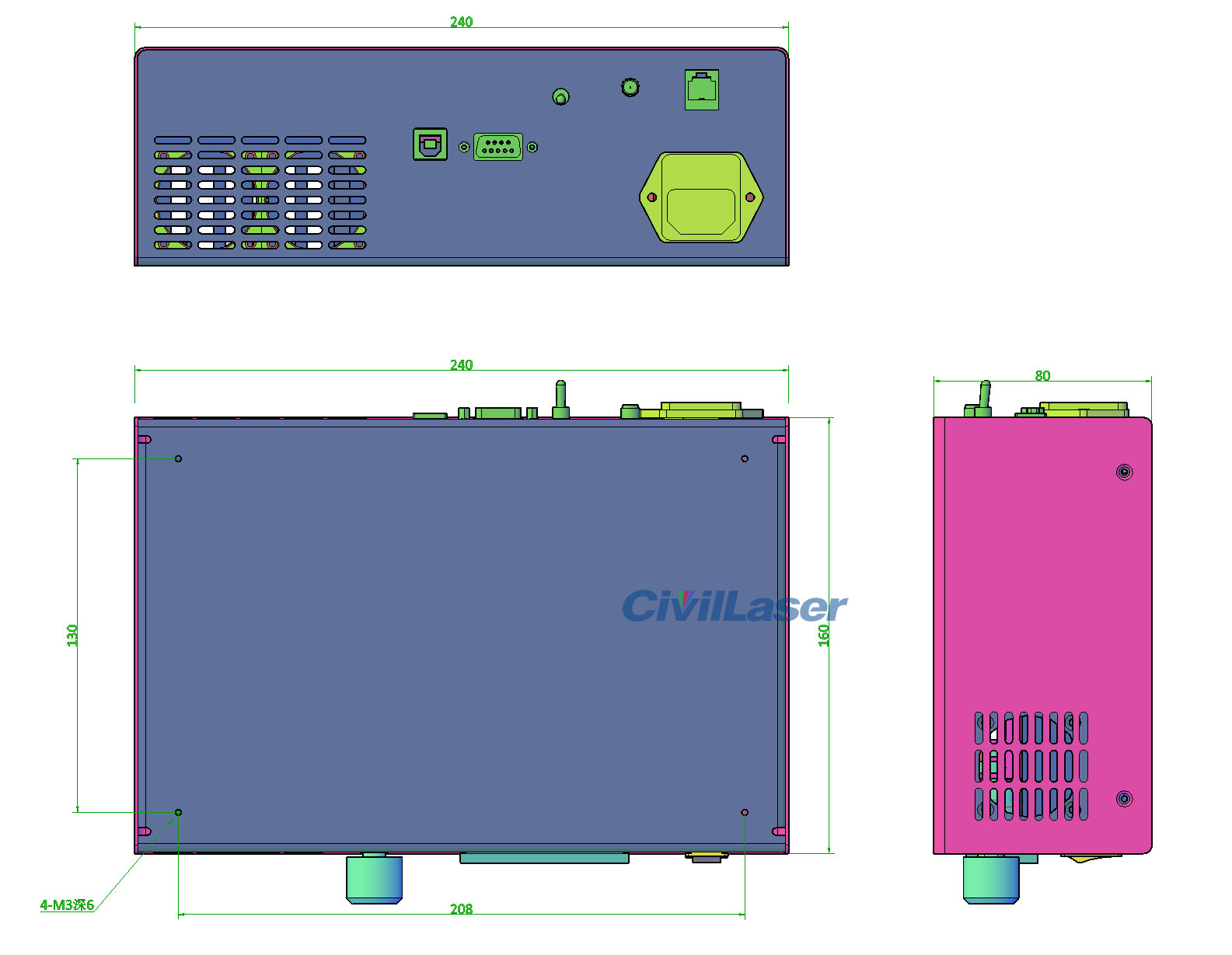

Installation size (reverse installation)

fiber coupled laser

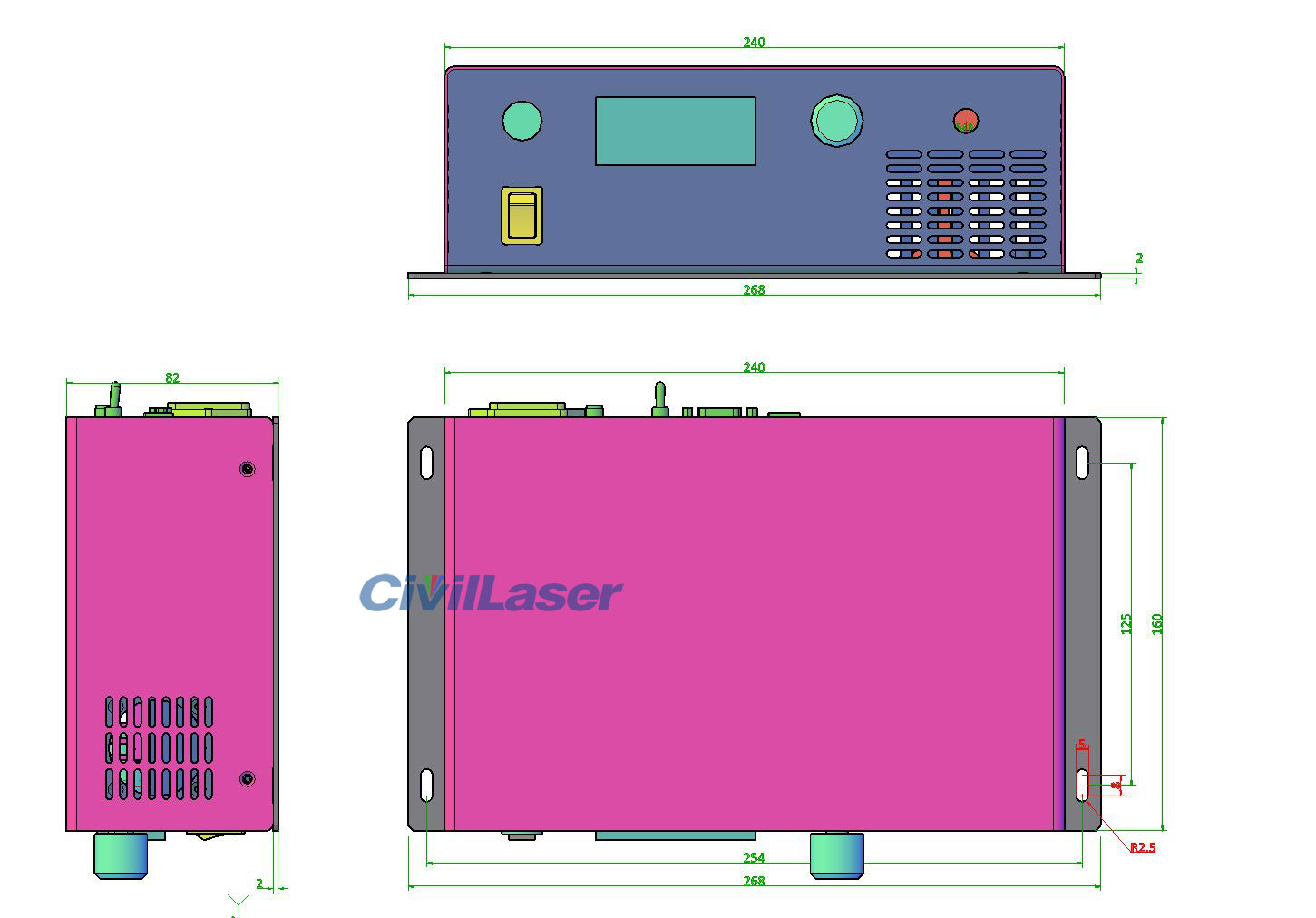

Installation size (forward installation, installation of an adapter plate at the bottom of the power supply)

fiber coupled laser


2020 new type:

532nm fiber coupled laser manufactor

532nm fiber coupled laser manufactor

532nm fiber coupled laser manufactor
