520nm 5mw~30mw Green Line laser module high Stable

Starting at: $39.00

Please Choose:



Add to Cart:
Min:  2

520nm 5mw~30mw Green Line laser module high Stable

Specifications:
Model#: LM52053L10

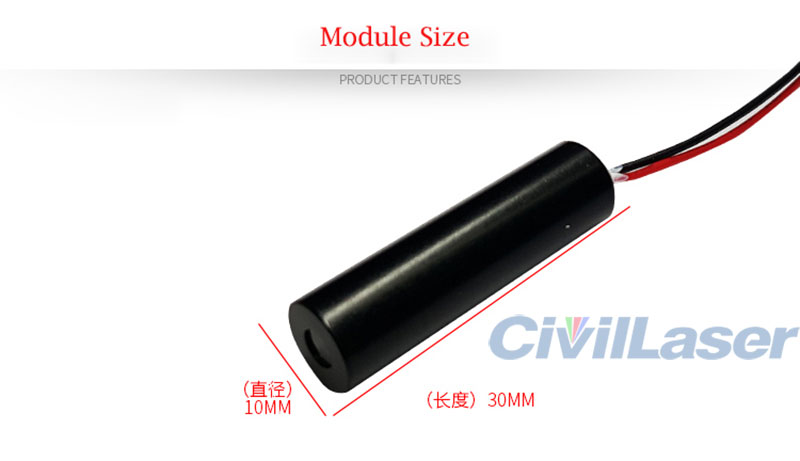

Size: 10x30mm(Can customize 12*42mm, 20*60mm)
Material: Aluminum
Service life: >10000hours
Wavelength: 520nm±10nm
Output Power: <5mw, <10mw, <30mw
Laser Range(Indoor): >10m, >15m, >30m
Linewidth at 1 metre: <3mm
Focus: Fixed
Fan angle: 5~120 degree(Default fan angle is 88 degree, leave a comment if you need other fan angle)
Lens material: Acrylic Optical Mirror(Can customize Glass Aspheric Coating)
Circuit control: ACC Constant Current Control Board
Fan angle: 88 degree, line length is about 2m at 1m distance
Working Voltage: DC 3V(can customized 5~24V)
Working Current: <80mA
Working mode: CW (TTL modulation can be customized)
Working temperature: -20°C~+60°C
Storage temperature: -40°C~+85°C

Green 520nm Line laser module high Stable
Green 520nm Line laser module high Stable
Green 520nm Line laser module high Stable
Green 520nm Line laser module high Stable
Green 520nm Line laser module high Stable
