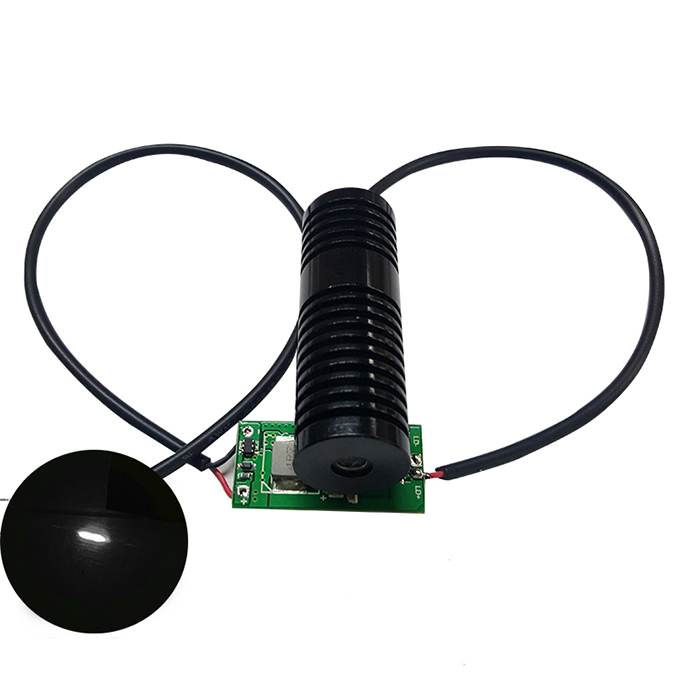

930nm 940nm 100mW~700mW Laser Module Dot IR Laser Source

930nm 940nm 100mW~700mW Laser Module Dot IR Laser Source

[Specifications]
Product Name: 940nm laser mdoule
Wavlength: 930±15nm
Output Power: 100mW /150mW /200mW /700mW (Choose)
Laser Shape: Dot
Working Mode: CW
Circuit Control: APC

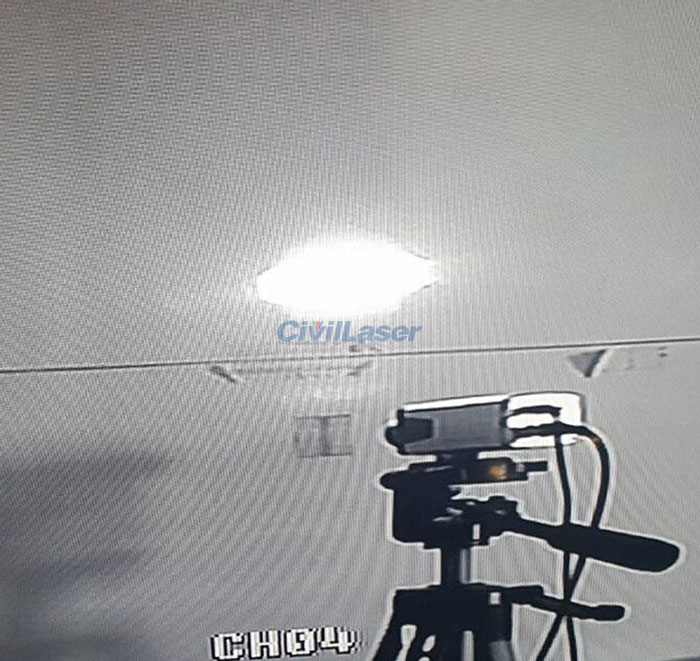

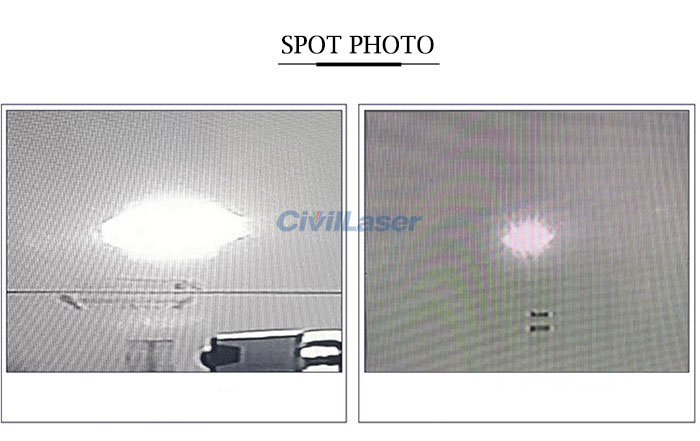

Spot Size: <15*20mm (At 10 meters)

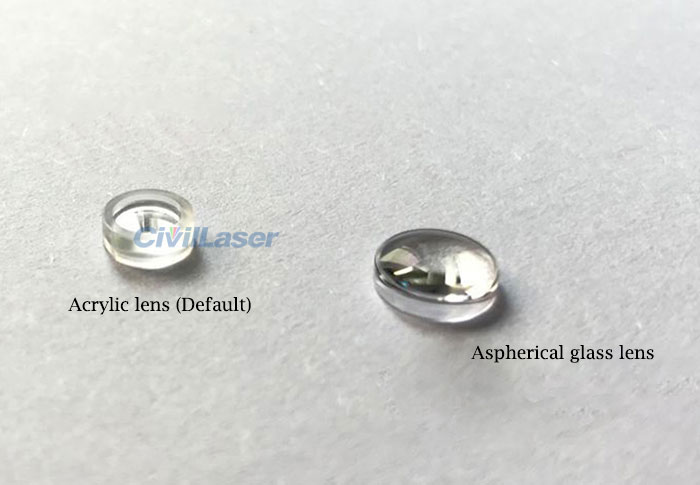

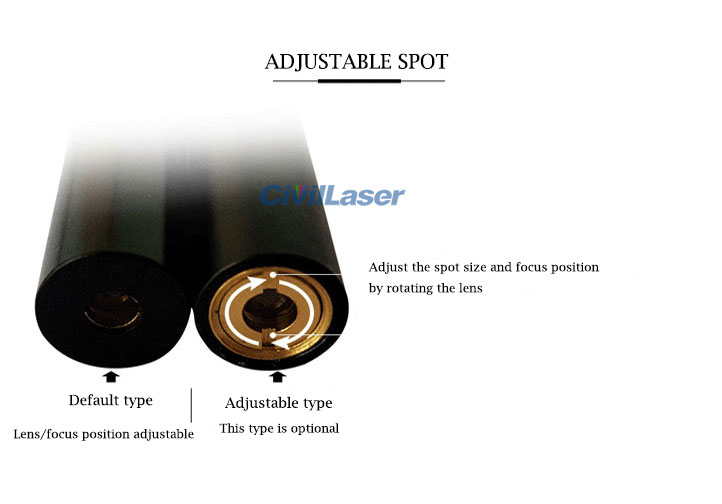

Focal Length: Fixed / Adjustable (Choose)
Wire Length: 150mm (Red wire is positive, black eire is negative)
Operating Temperature: -10℃~+50℃
Storage Temperature: -40℃~+85℃
Service Life: >10000 Hrs
Irradiation Distance(indoor): >100m (100mW)
                                              >200m (150mW)
                                              >300m (200mW)
                                              >1000m (700mW)
Operating Voltage: DC 3~5V (100mW)
                                DC 5V (150mW, 200mW)
                                DC 12V (700mW)
Operating Current: <300mA (100mW)
                               <370mA (150mW, 200mW)
                               <1000mA (700mW)

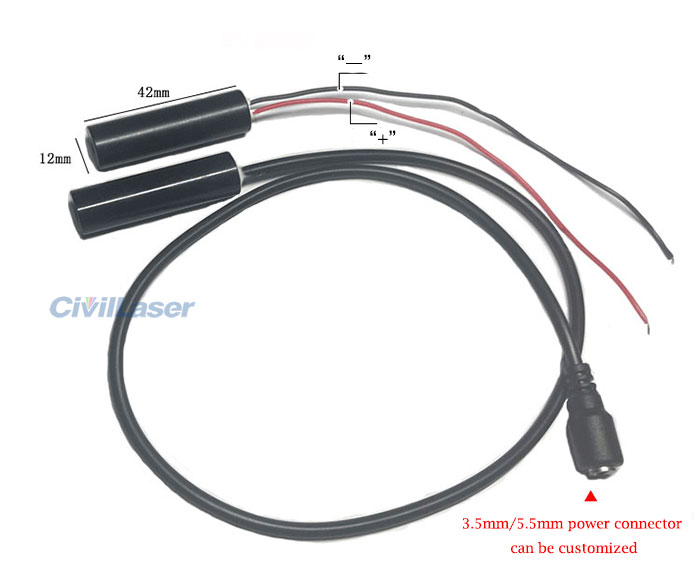

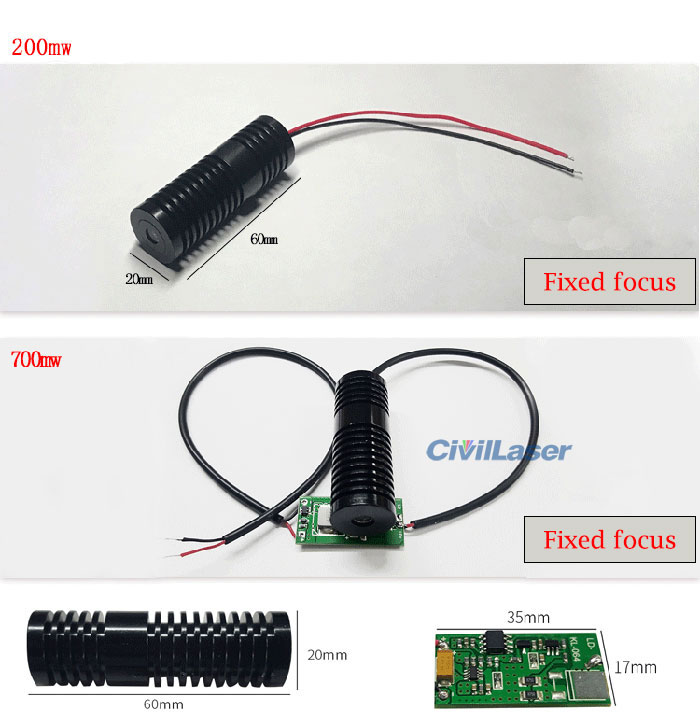

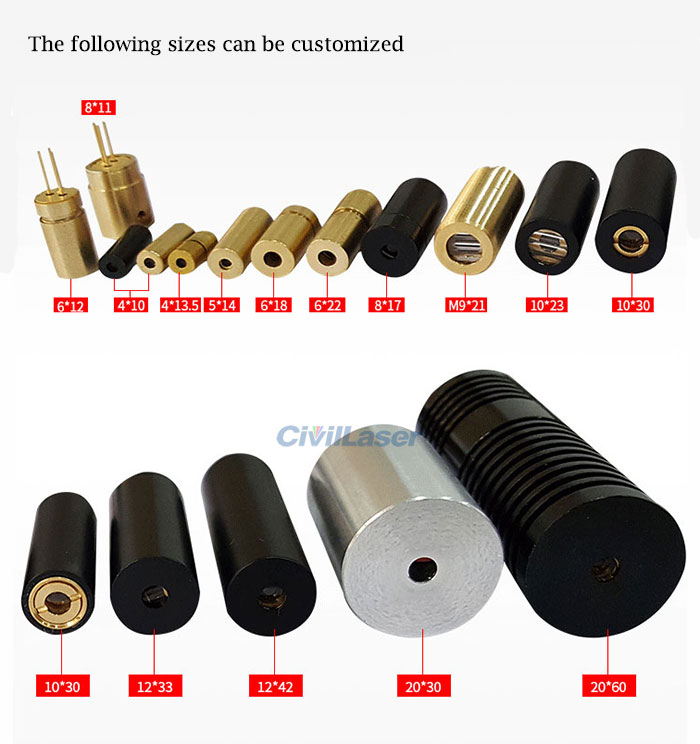

Size: Φ12*42mm (100mW, 150mW)
        Φ20*60mm (200mW, 700mW)
