Home :: Laser Module(Dot/Line/Cross..) :: Blue Laser Module Dot :: 406nm 410nm 350mW Laser Module Blue-Violet Laser Diode Moudle Dot

406nm 410nm 350mW Laser Module Blue-Violet Laser Diode Moudle Dot

Blue Laser Module Dot

Product 3/67

Return to the Product List

406nm 410nm 350mW Laser Module Blue-Violet Laser Diode Moudle Dot

larger image

$80.00

Add to Cart:

406nm 410nm 350mW Laser Module Blue-Violet Laser Diode Moudle Dot

[Specification]
Product Name: 406nm laser module
Wavelength: 406nm
Output Power: 350mW
LD Reverse Voltage: 2V
Operating Temperature: 0~50℃
Storage Temperature: -40~85℃

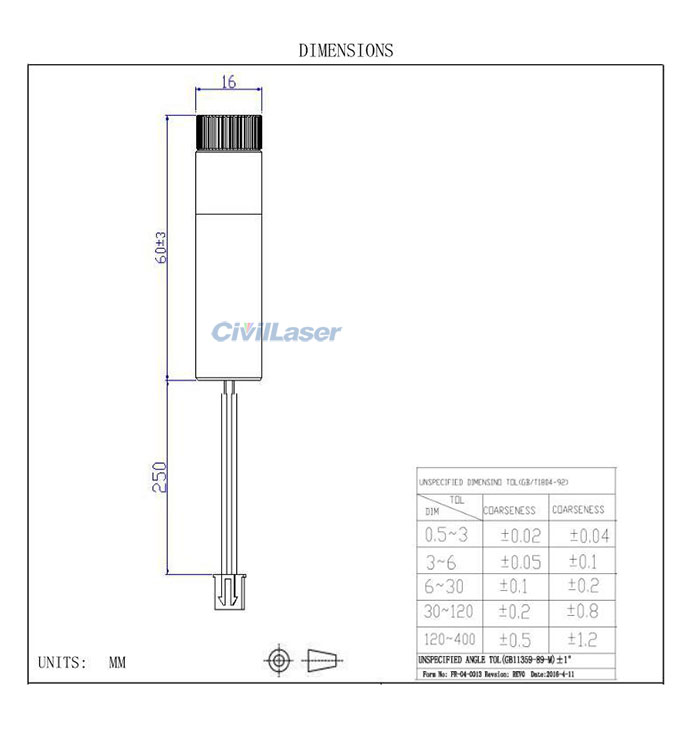

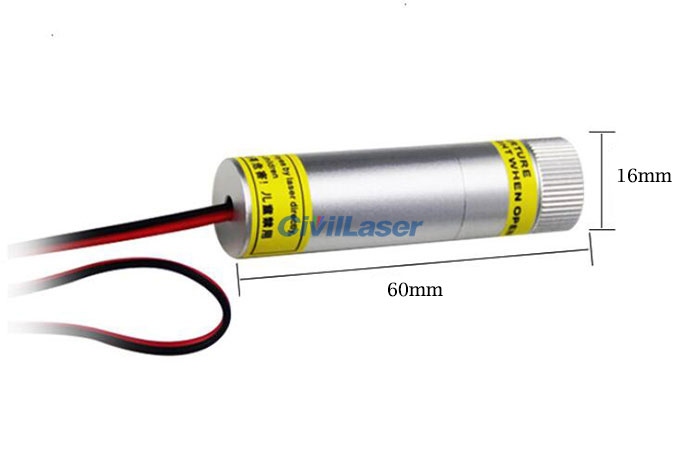

Size: 16*60mm

Parameter	Work condition	Symbol	Min	Typical Value	Max	Unit
Output Power		PO		350		mW
Threshold Current	350mW	Ith		140	200	mA
Working Current	350mW	Iop	250	325	400	mA
Operating Voltage	350mW	Vop		4.5	5.5	V
Laser Wavelength	350mW		400	406	414	nm
Wire Length		Wl		250		mm
Service Life		MTTF		8000		hrs
Light Spot Size	No polarity	Φ			The polarity of shell

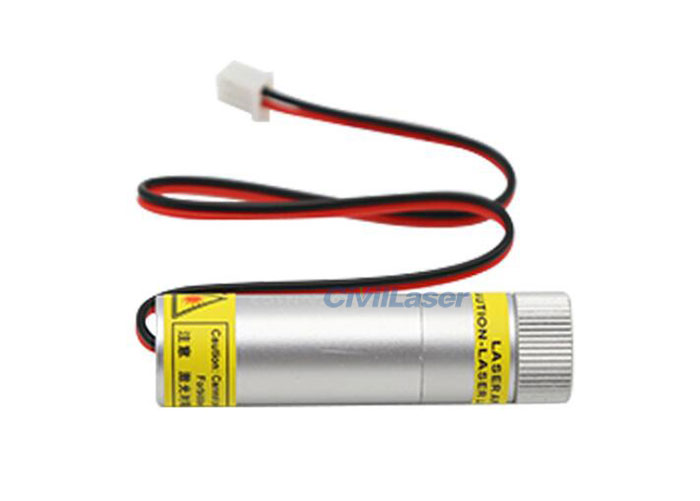

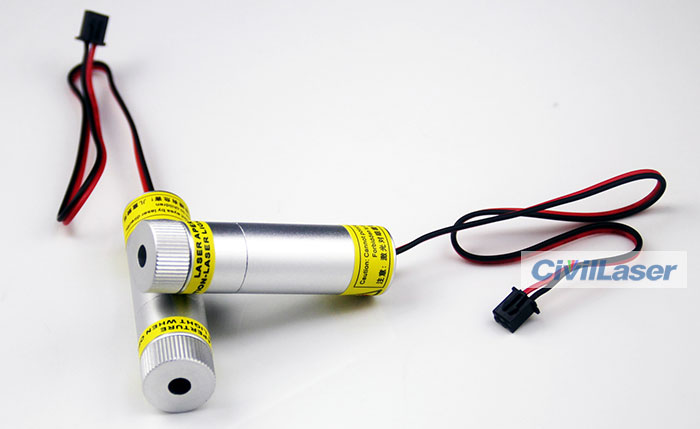

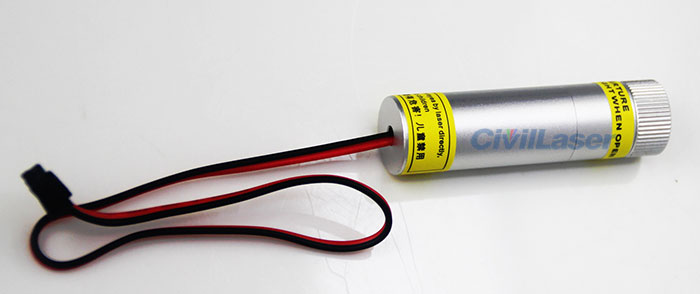

410nm laser module

410nm laser module

410nm laser module

410nm laser module

410nm laser module
