638nm Red High Power 0.75W/1.2W Dot Miniature engraving machine Industrial Experimental Light Source

Starting at: $109.00

Please Choose:







Add to Cart:


638nm Red High Power 0.75W/1.2W Dot Miniature engraving machine Industrial Experimental Light Source

SPECIFICATIONS:
Output Power: 0.75W/750mw
Model:M-33A638-0.75W-G
Current: ≤0.7A
Voltage: DC12V/1A

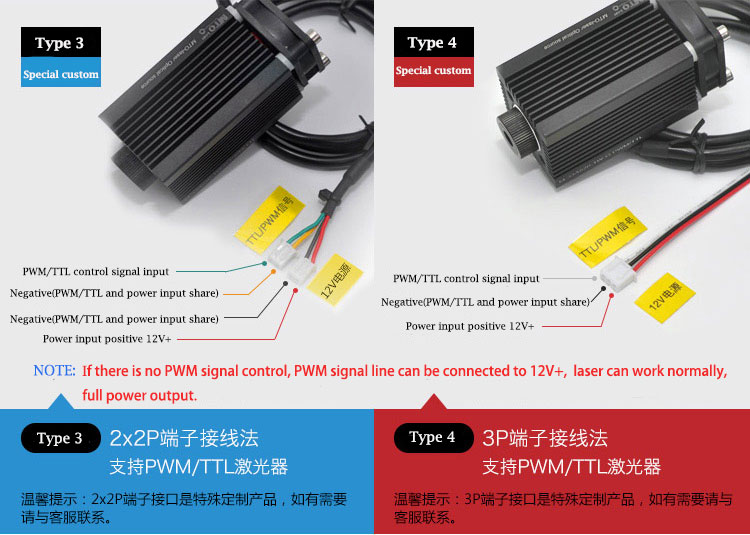

Control Mode: PWM/TTL or CW
Spot mode: Dot Minimum Spot (3.5W 4W Fast Scanning or Vibrating Mirror): >0.1mm
Working distance: 20mm~Infinitely adjustable Optimum engraving focal length (20mm~200mm)
Working frequency: 0~20KHz
Material: Shell/Aviation #7075   Tube Core/Copper
Cooling mode: Radiator and the cooling fan
Continuous work: <12 hours
Service life: <10,000 hours
External size: 33x55x77mm
Optical system:Optical Glass-plated Lens
Working temperature: -40°C ~ + 40°C

Output Power: ≤1.2W/1200MW(Note: Currently 1.2W is out of stock)

Model:M-33A638-1.2W-G

Current: ≤0.7A
Voltage: DC12V/1.5A
Control Mode: PWM/TTL or CW
Spot mode: Dot Minimum Spot (3.5W 4W Fast Scanning or Vibrating Mirror): >0.1mm
Working distance: 20mm~Infinitely adjustable Optimum engraving focal length (20mm~200mm)
Working frequency: 0~20KHz
Material: Shell/Aviation #7075   Tube Core/Copper
Cooling mode: Radiator and the cooling fan
Continuous work: <12 hours
Service life: <10,000 hours
External size: 33x55x77mm
Optical system:Optical Glass-plated Lens
Working temperature: -40°C ~ + 40°C
