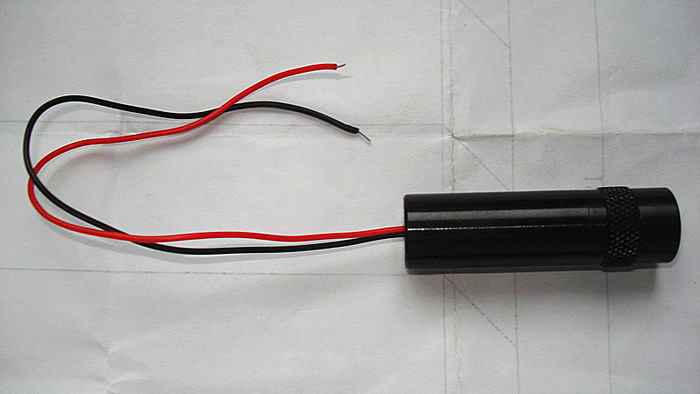

TTL  sinusoidal wave modulation 780nm 5mw IR laser Module Focus Adjustable 16*55mm

SPECIFICATIONS:
Name: TTL  sinusoidal wave modulation 780nm 5mw IR laser Module
Output Wavelength: 780nm
Output Power: 5mW (Customize other output power)
Beam Divergence: 0.1mrad ~ 0.6mrad adjustable
Optical Systems: Optical Coated Glass
Spot Description: 1m department width <=> spot diameter Φ0.5mm (Adjustable)
Modulation: TTL modulation
Modulation frequency: 10Hz-100KHz
Laser type: Invisible laser, Near IR laser
Outside Color: Black
Operating Voltage: DC 3V ~ 5V
Laser Class: IIIB
Operating Temperature: -10℃~70℃
Storage Temperature: -40℃~80℃
Size: Φ16mm x 55 mm
Continuous working time: > 12 hours(Good heat dissipation)
Warranty: 12 Months Factory warranty


TTL modulation Description:
1 The red and yellow lines shorted, the module will be lit, in a continuous mode of operation;
2 To modulate the signal line negative black wire, positive connected to the yellow line, red line vacant, modulation module in working condition.
3 Signal input modulation frequency must be within the range 500KHZ;


Package includes:
1* TTL 780nm laser module
