785nm 350mW Fiber Coupled Laser Raman Laser IR Laser Source

$2,720.00

Add to Cart:


785nm 350mW Fiber Coupled Laser Raman Laser IR Laser Source

The 785nm narrow-linewidth Raman laser produced by our company has narrow spectral line width and good spectral stability, and it has a wide range of applications in Raman analysis. Provides free optical path and fiber-coupled two kinds of production solutions, which can be matched with Raman probes and corresponding accessories, to fully solve the customer's need to build a hardware part of the Raman spectrometer.
The Raman laser has good spectral stability, and the center wavelength remains basically constant under long-term working conditions; the spectral line width is narrow, and it has a very good Raman effect when used as a Raman light source, and is very suitable for pulling. Mann Spectral and Sensing applications.

Notes:
This is a custom product,  if you need other output power, or have special requirements, please contact us.
Lead Time: 7~15 workingdays! Custom product available!

[Specifications]
Wavelength: 785nm
Output Power: 350mW
Fiber interface: FC/PC or SMA-905(Default: FC/PC)
Fiber diameter:100um,200um,400um(Default:400um)
Fiber type: Multi-mode Fiber
Output stability (rms): <3% over 2 hours
Operating Temperature: 10℃-35℃
Storage Temperature:  -40°C-85°C
Warm-up Time (minutes): <5
Expected Lifetime (hours): >5000
Warranty Time: 1 Year


Parameter Work condition Symbol Min Value Typical value Max value Unit
Output Power(CW) @PO PO     350 mW
Optical Power Stability 2hrs Ps   1   %
Central Wavelength @PO λc 784 785 786 nm

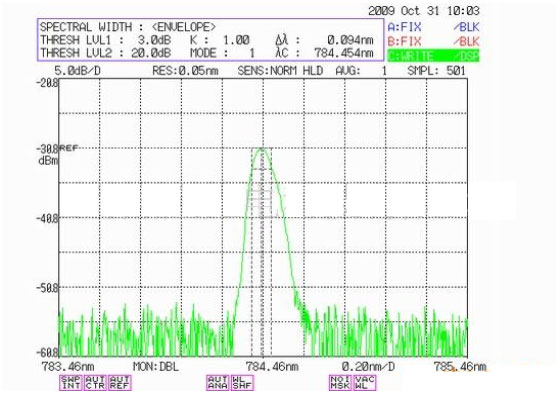

Line Width @PO FWHM   0.1 0.2 nm
Spectral drift @PO λd   0.01   nm/°C
Warm-up time @PO Tw     5 min
Noise RMS(10Hz-100MHz) N   1   %
Service Life @PO MTBF 5000     Hrs
