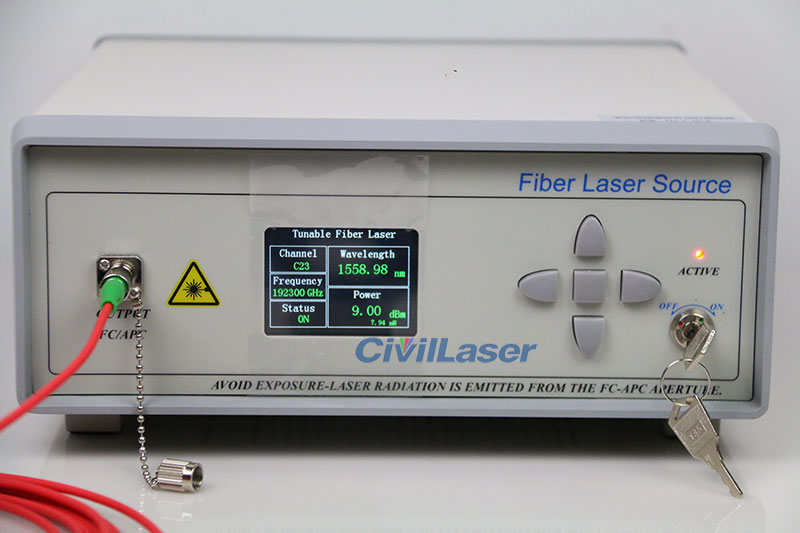

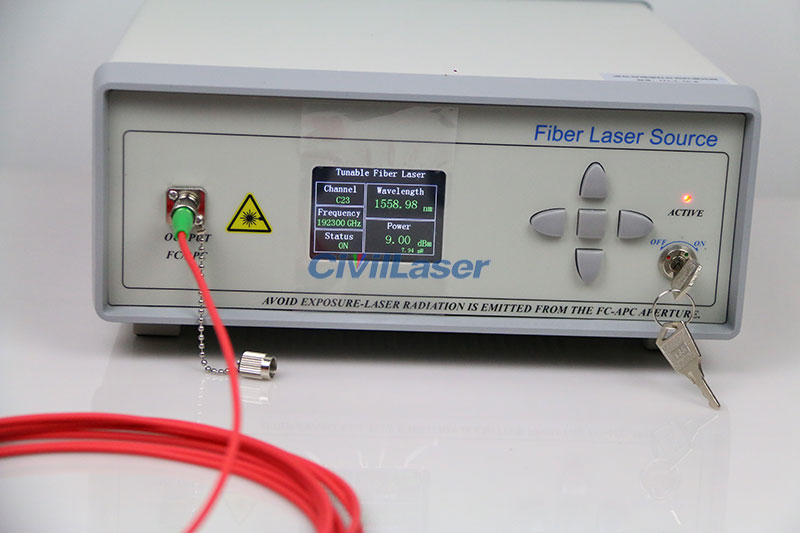

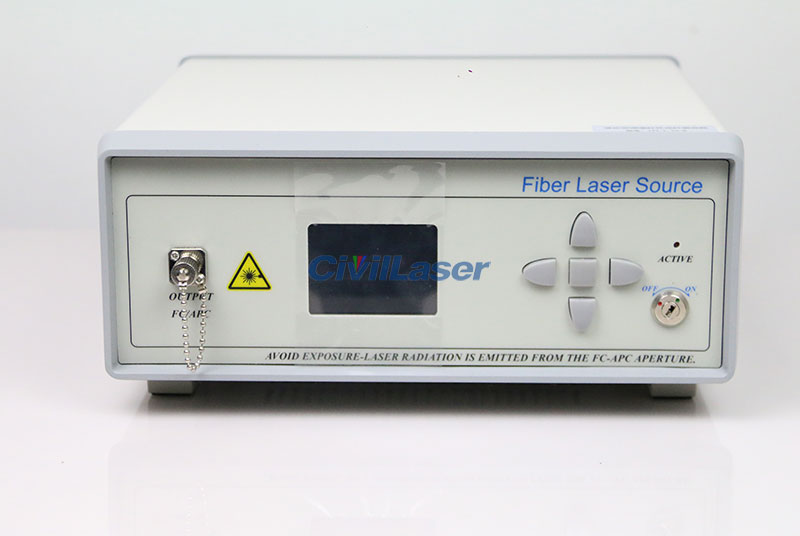

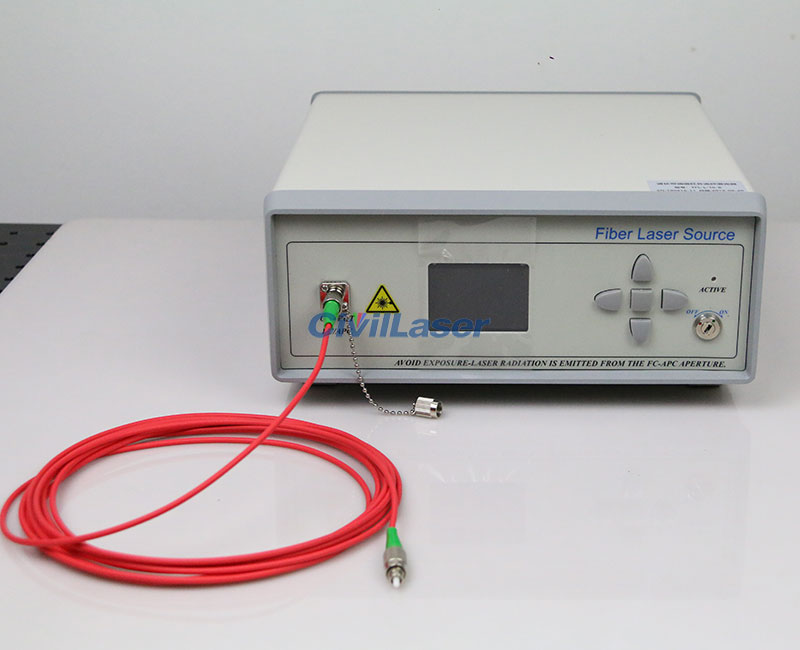

L-Band 1554~1607nm 64 Wavelengths Tunable Fiber Laser Interval 0.8nm TFL-L-64-10-SM-B
L-Band 64 Wavelengths Tunable Fiber Laser 0.8nm Interval 7~10mW Power Adjustable
The wavelength tuning range of this light source covers the L-band and achieves a continuous laser output of up to 64 wavelengths (ITU-T standard wavelength, wavelength interval 100 GHz). Integrated dual FP cavity tuning etalon and high-gain chip, with high output optical power (10mW), narrow linewidth, and high wavelength accuracy. Special drive control circuit, high-definition color LCD screen, optional control keyboard and host computer software are also available.
The user can easily tune the wavelength accurately. Can be used for DWDM system development, fiber laser, fiber optic link, optical device testing and other fields.
[Features]
1. Up to 64 wavelengths
2. High power stability
3. High side mode rejection ratio
4. Excellent relative intensity noise
[Applications]
1. DWDM system
2. Fiber laser
3. Fiber link
4. Optical device testing
[Specification]
Parameters
|
Unit
|
Typical Value
|
Remarks
|
Model
|
--
|
TFL-L-64-10-SM-B
|
|
Wavelength Tuning Range
|
nm
|
1554.94~1607.46
|
ITU Standard C28 ~ L65
|
Frequency Tuning Range
|
THz
|
192.8~186.5
|
|
Channel Spacing
|
GHz
|
100
|
Equivalent to 0.8nm
|

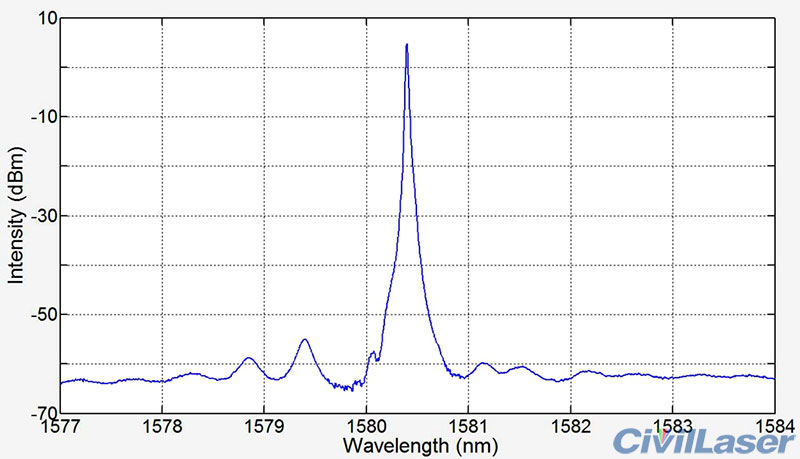

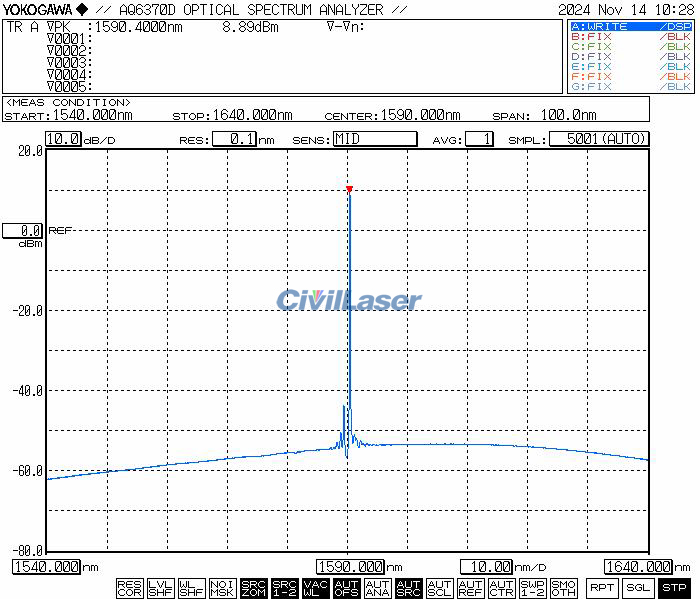

Side Mode Suppression Ratio(SMSR)
|
dB
|
>50
|
|

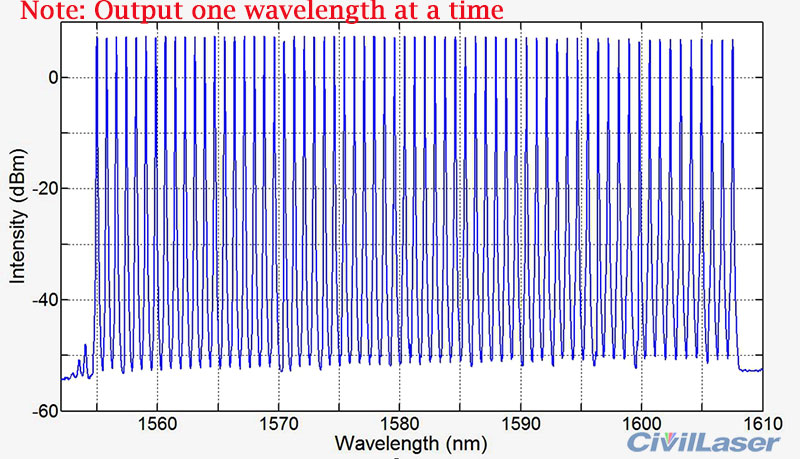

Wavelength Channels
|
--
|
64
|
|
Max Output Power
|
mW
|
>8
|
|
Power Adjustable Range
|
--
|
Near 10%~100%
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ 0.02
|
Single wavelength full temperature
|
Long-term Stability (8 hours)
|
dB
|
≤ 0.05
|
Single wavelength full temperature
|
Pigtail Fiber Type
|
--
|
SMF-28e single mode fiber
|
L=1m
|
Fiber Interface Type
|
--
|
FC/APC
|
|
Electrical and environmental parameters
|
DeskTop Type
|
Control method
|
Button
|
Communication interface
|
DB9 Female(Default not include)
|
Power supply
|
AC 100~240V
|
Size
|
260(W)×280(D)×120(H)mm
|
Operating temperature range
|
-5~+35°C
|
Operating humidity range
|
0~70%
|
