1550nm 1530nm~1565nm 1W~5W C-Band High power SM fiber source
C-band High Power Fiber Source
The C-band high-power fiber-optic light source adopts a semiconductor-pumped fiber laser structure,
which outputs 1~5 watt high-power laser,
single-mode fiber output, professionally designed drive circuit and TEC control to ensure laser safety and stability.
It can be packaged as a desktop or modular according to user needs.
[Specifications]
|
Parameter
|
Unit
|
Typical value
|
Remarks
|
|
Working wavelength
|
nm
|
1550±2nm(Default)
|
C-Band
1540~1565 can be customized
|
|

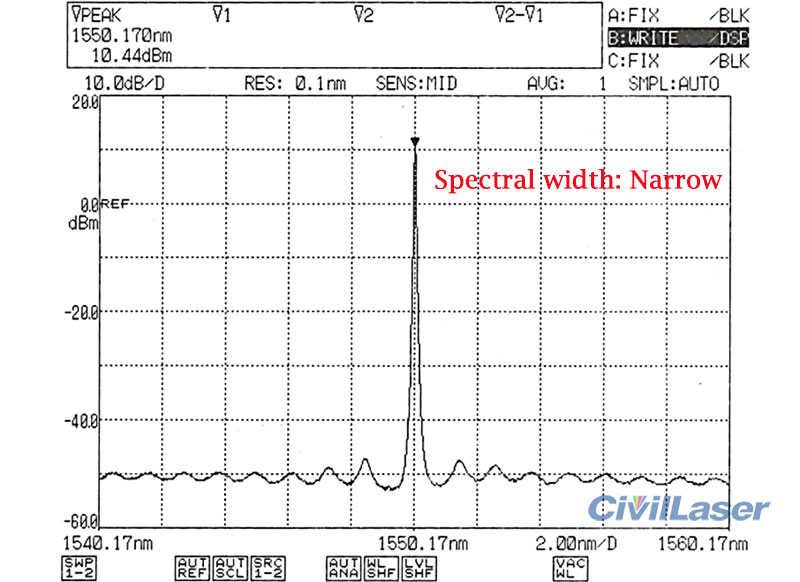

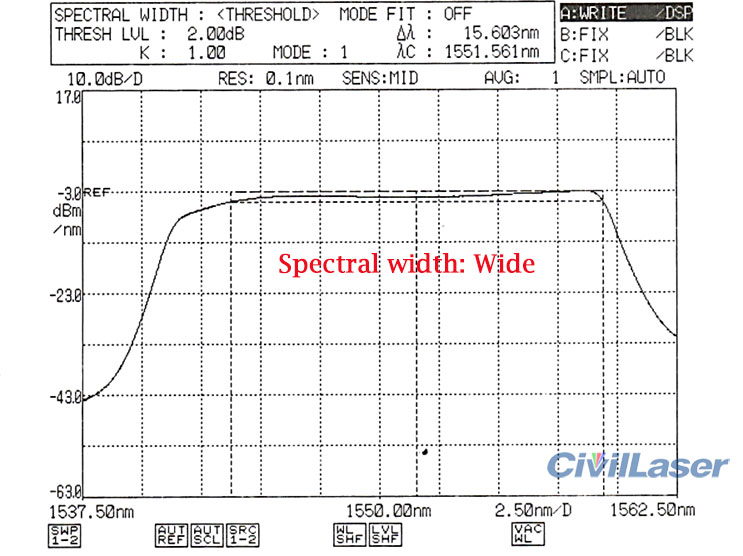

Spectral linewidth
|
nm
|
0.1nm (Default)
|
0.1nm/1nm/15nm can be customized
|
|
Sideband Suppression Ratio
|
dB
|
>50
|
|
|
Output power
|
W
|
1~5W
|
Choose
|
|
Short term stability(15 Minutes)
|
dB
|
≤ 0.02
|
|
|
Long-term stability(8 Hours)
|
dB
|
≤ 0.05
|
|
|
Fiber type
|
-
|
Single Mode Fiber SMF-28e
|
|
|
Fiber Interface
|
-
|
FC/APC(Default)
|
Customizable:
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/PC
5=FC/PC
|
|
Fiber length
|
M
|
1m(Default)
|
|
|
Working temperature
|
°C
|
-20 ~ +45
|
|
|
Storage temperature
|
°C
|
-40 ~ +85
|
|
|
Power supply
|
-
|
AC 100~240 V
|
|
|
Desktop type size
|
mm
|
260(W)×280(D)×120(H)
260(W)×320(D)×120(H)(Default)
|
We send it randomly.
Please contact us if you have size requirements.
|
|
Communication Interface
|
-
|
DB9 Female / RS232
|
(Default: not inlcude)
|
