1320nm 1~15W IR Laser PC Control Fiber Coupled Laser System Customized

$110.00

Add to Cart:


1320nm 1~15W IR Laser PC Control Fiber Coupled Laser System Customized


Note: The $110 is the deposit, not the final price.

[Features]
1. Laser + laser drive + temperature control system, integrated laser source, high reliability.
2. Universal control interface
3. 8 hours power stability less than 3%.
4. Laser long service life, >10000 hours.
5. Output wavelength can be set by temperature control
6. Anti-lightning, anti-static, sound over-current protection, over-temperature protection, anti-reverse protection.
7. High output power, the power and spectral stability is high.
8. Simple to use, allowing customers to quickly integrate systems.
9. Can be customized according to customer requirements.

[Applications]
1. Scientific research
2. Laser processing
3. Material handling
4. Medical

[Specification]
Product Name: Fiber Coupled Laser System

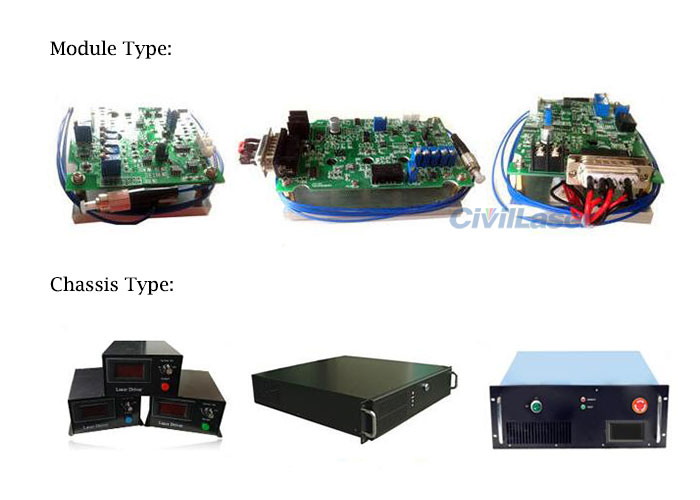

Laser Mode: Module type-1 /Module type-2 / Chassis type-1/Chassis type-2 /Chassis type-3 (Choose)
Wavelength: 1320nm
Output Power: 1~15W (customizable)
Wavelength Range: ±5nm / ±10nm
Coupling Method: Single tube / multiple tubes / with indicator light
Wavelength Temperature Coefficient: ~1nm/°C
Fiber Core Diameter: 105µm /200µm /400µm (Choose)
Numerical Aperture: 0.22
Fiber Connector: SMA-905 / FC/PC (Choose)
Fiber Length: 0.5m /1m /2m /5m (Choose)
