525nm 545nm 2~5mW Green LED Light Source Lab Fluorescence Experiment Light Source

Starting at: $208.00

Please Choose:







Add to Cart:


525nm 545nm 2~5mW Green LED Light Source Lab Fluorescence Experiment Light Source

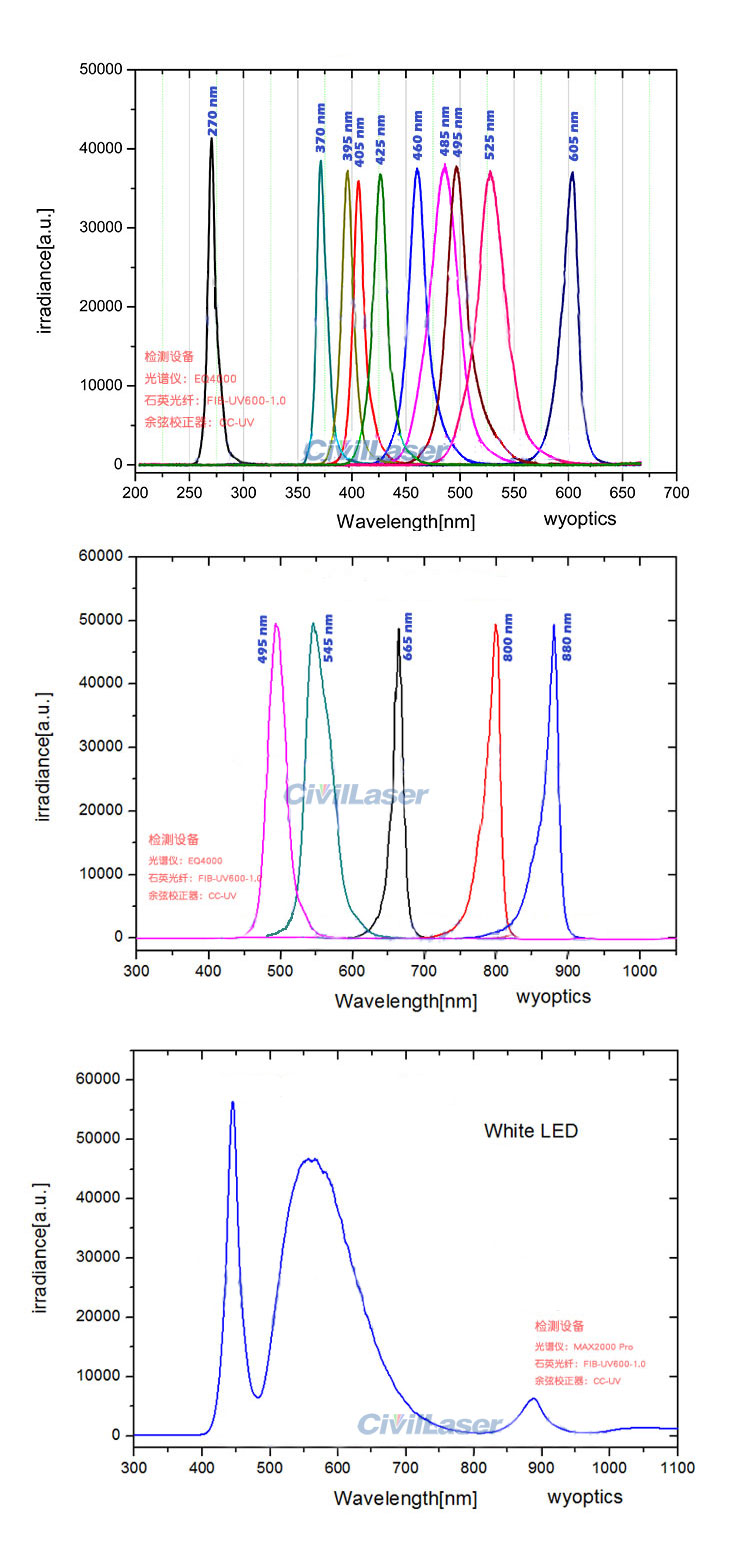

Our LED light source has various specifications from ultraviolet to near infrared (265~1330nm). They are all SMA905 interface outputs, and their coupling efficiency is high.

The optical power of the fiber-coupled output is about 1~5mw.
It is recommended to use fiber: core diameter ≥ 600um, numerical aperture 0.22NA.

[Features]
1. High coupling efficiency
2. The LED emits a cold light source, which has a small heat dissipation
3. Small size and easy to carry
4. High Stability
5. Long service life

[Application]
1. High resolution optics
2. Phosphor reflection
3. Medical application
4. Photolysis reaction
5. UV glue curing
6. Special lighting

[Specification]
Product Name: LED light source
Wavelength: 525nm / 545nm (choose)
Electrical Power: 3W
Output Power: 2~5mW
Output Interface: SMA905 / FC
Service Life: 100,000 hours
Power Supply:
1. 110~220V AC power supply
2. 5~30V 1A DC power supply

Optical Fiber: 600um/0.22NA/1 meter/ SMA905 interface / Coupling efficiency 50% / --  (Choose)


There are two modes to choose from: light intensity is not adjustable and light intensity is adjustable.


led light source

led light source

led light source

led light source

led light source

led light source
