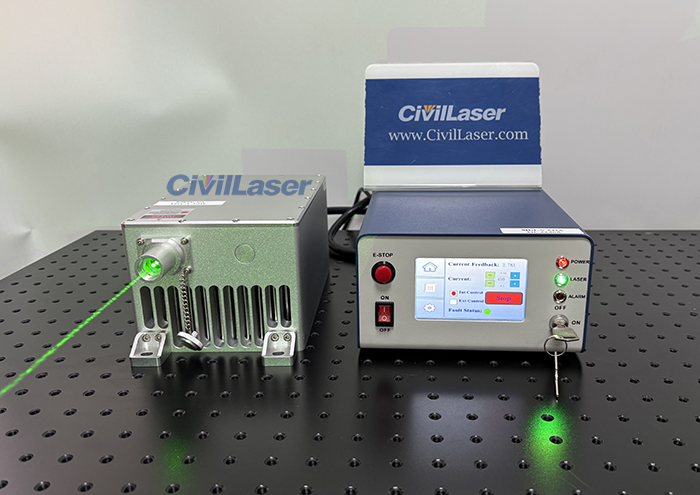

Today we are introducing a brand new 532nm 5W solid-state laser. This laser now uses a touchscreen power supply. The power supply has a built-in cooling fan.
Instructions for use:

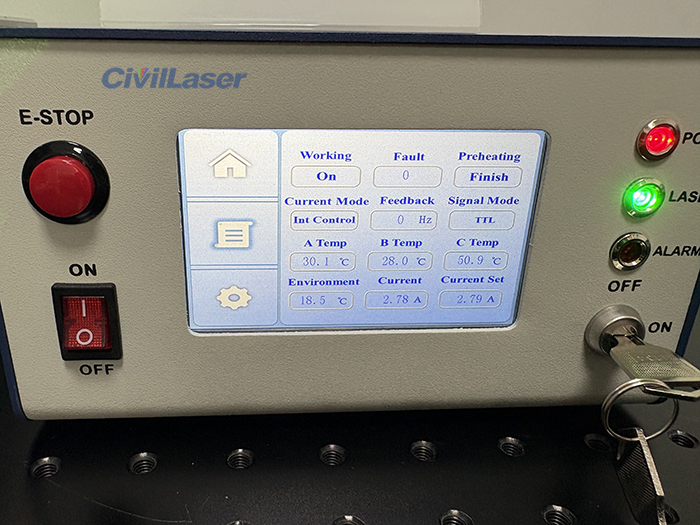

Turn on the power switch. The ‘POWER’ light will illuminate. After the machine starts, it will automatically jump to the current adjustment page. Here, we can adjust the current value to adjust the output power. Click the ‘+’ and ‘-‘ buttons to the right of ‘Current’ to adjust the current. 1000 represents the full power current. The ‘X 50’ at the top represents an adjustment step of 50, and the ‘X 1’ in the second row represents an adjustment step of 1. The Current Feedback at the top of the panel represents the current operating current of the laser. After adjusting the current, click ‘RUN’ and simultaneously turn the key switch to ON. The laser will start working and output laser light. The ‘LASER’ light will illuminate. Click ‘STOP’ to stop the laser from working. The ‘LASER’ light will turn off.
Click the second button on the left side of the screen. This page shows the current operating status of the laser. When switching to analog modulation mode, click the settings icon in the lower left corner and enter the password.
All solid state 532nm green laser is made features of good beam profile, ultra compact, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, etc.

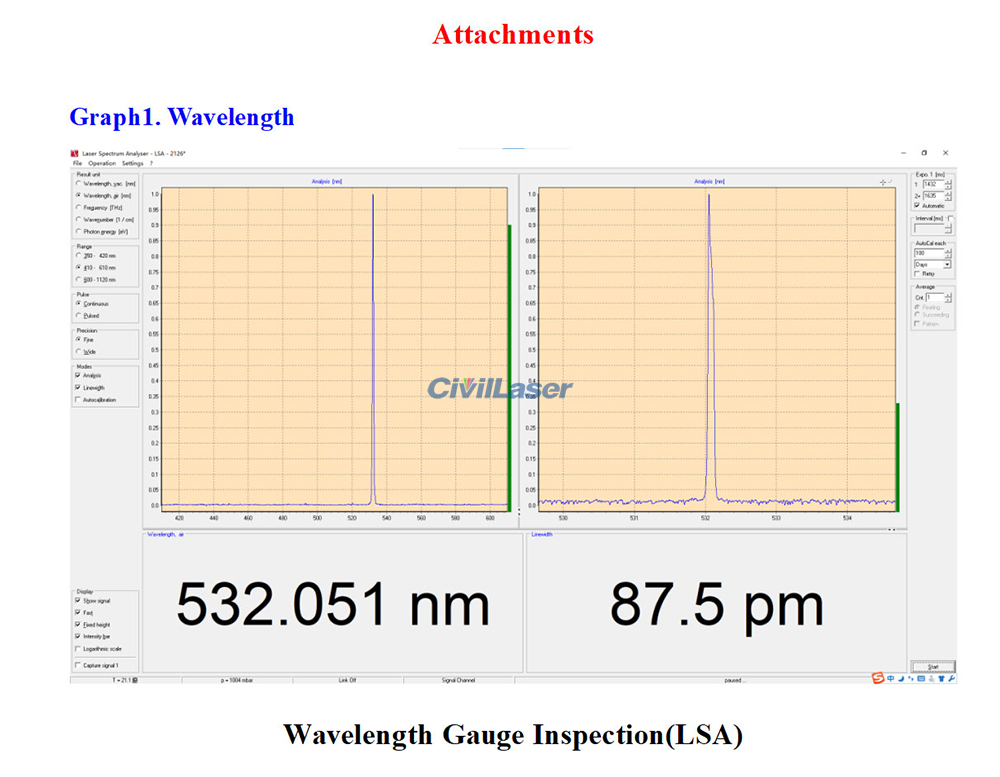

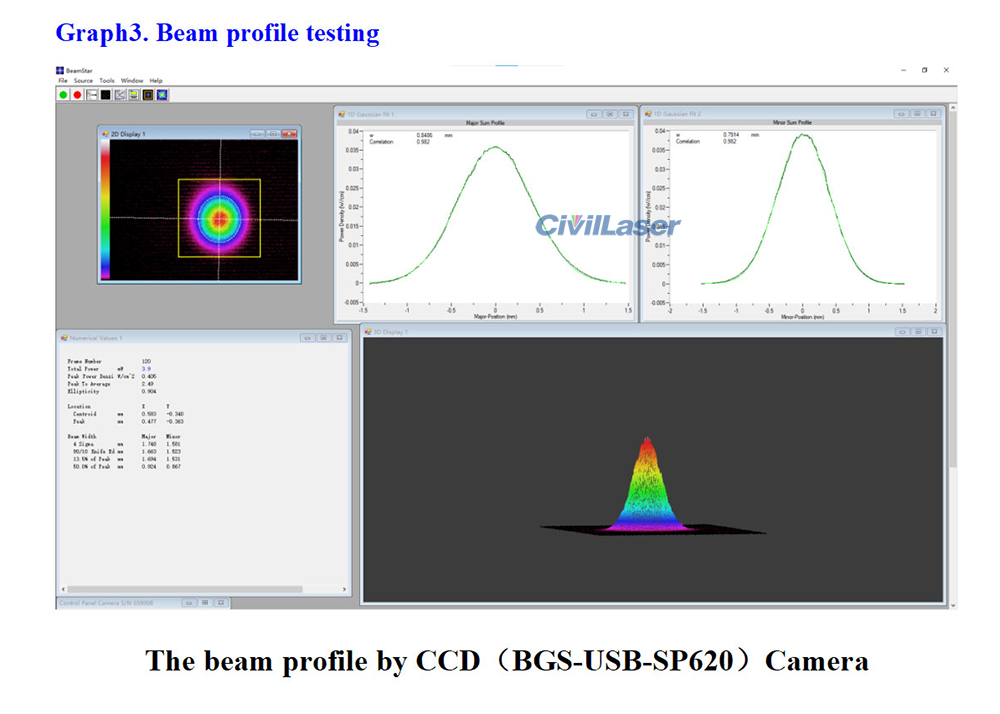

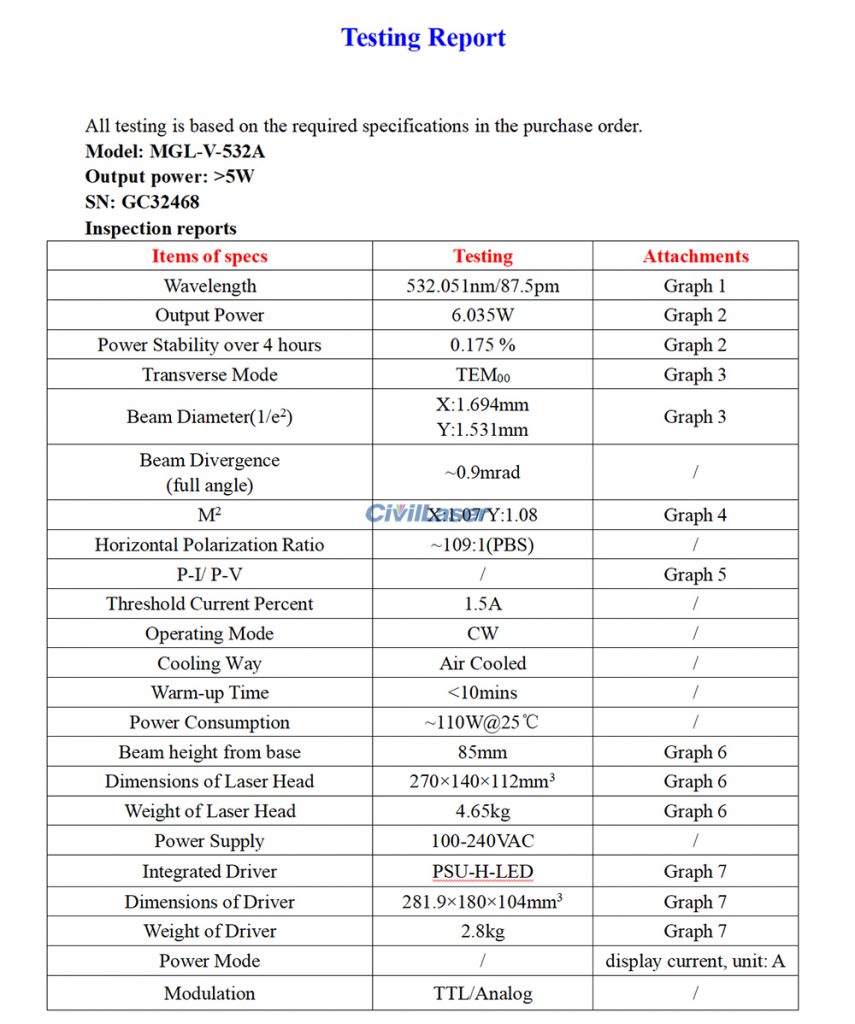

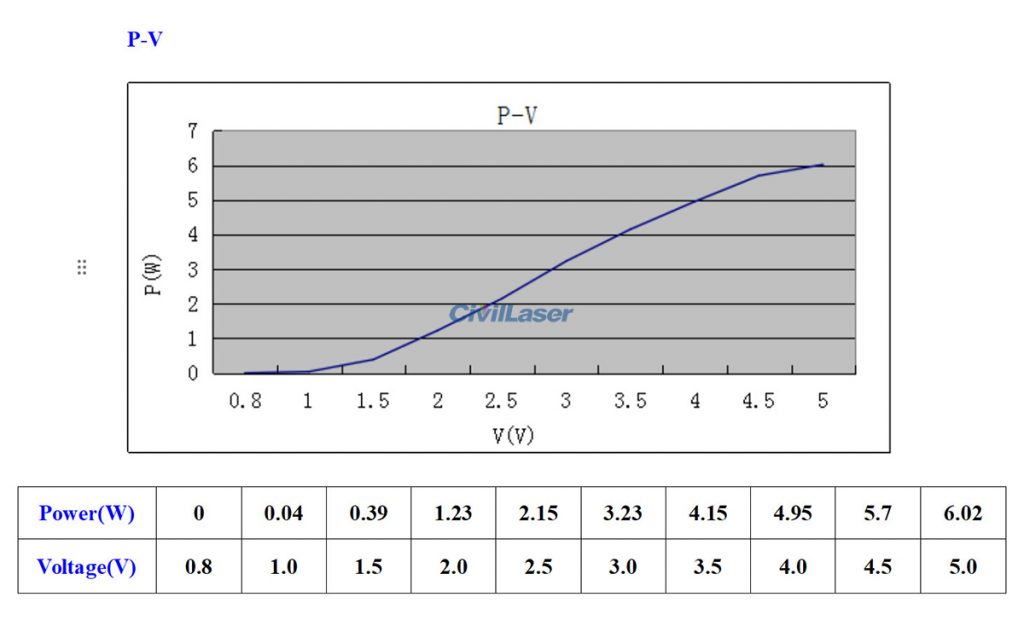

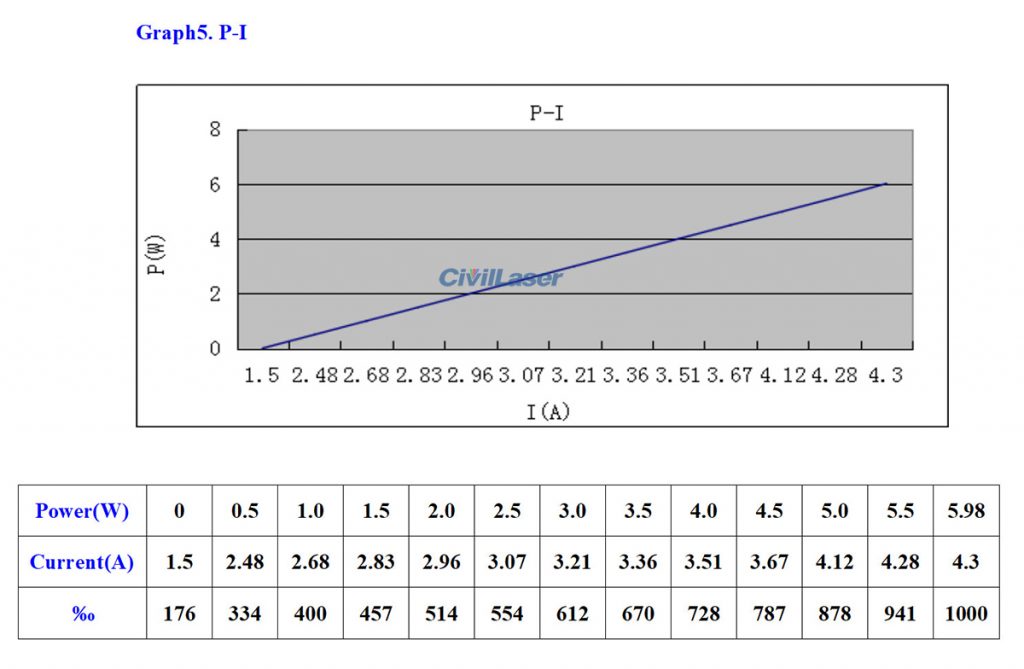

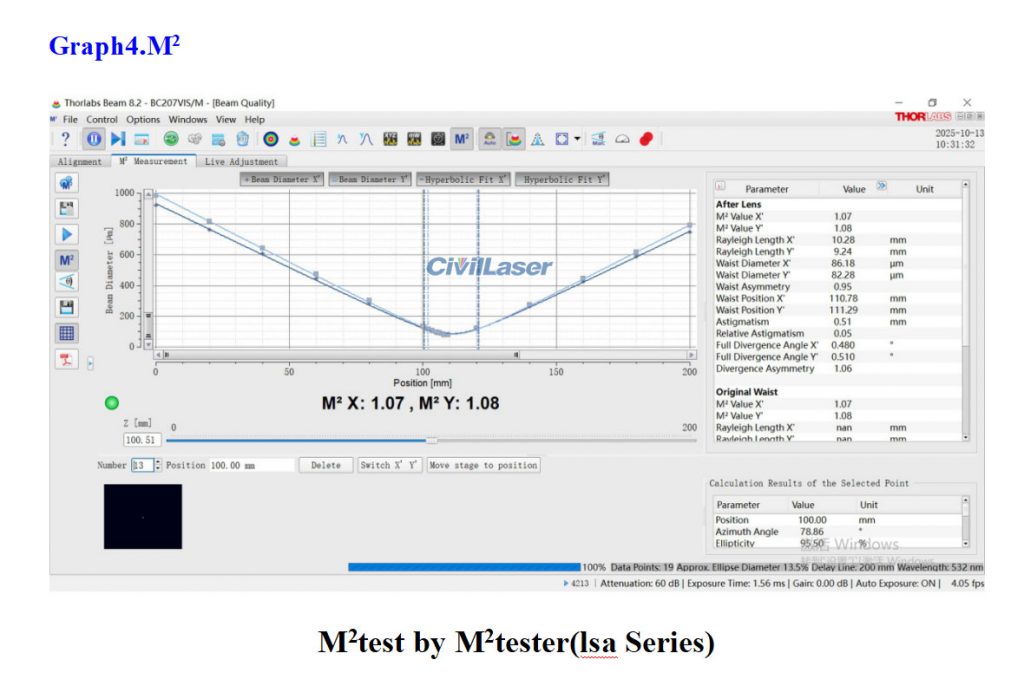

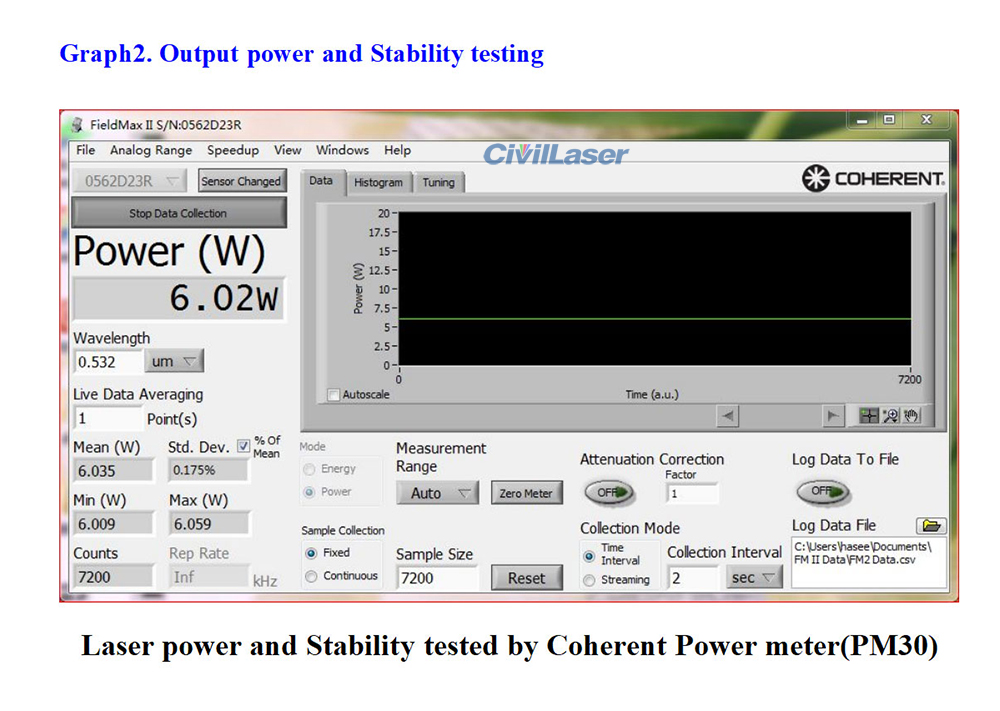

The test report of this dpss laser system.
For more details on using this laser, please contact us.
