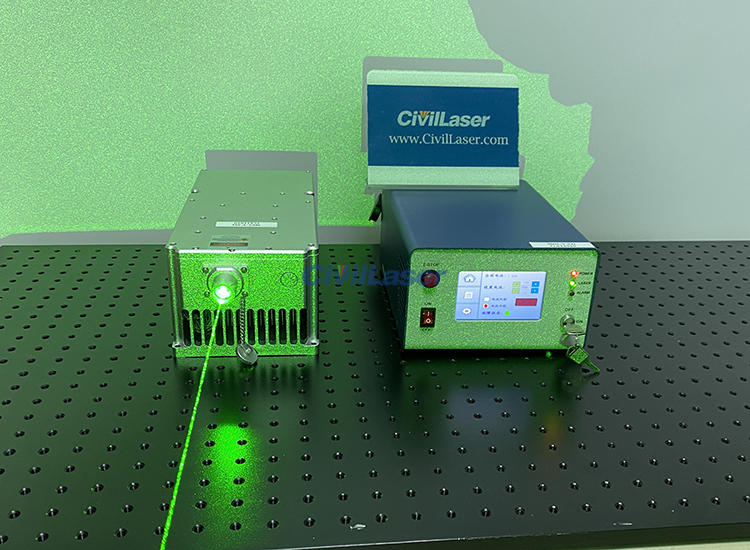

The 532nm 10W solid-state laser is a high-power, high-stability green laser that uses diode-pumped solid-state laser (DPSS) technology. It has an output power of 10W, a wavelength of 532nm, and excellent beam quality (M² factor ≤ 1.2), making it suitable for industrial processing, scientific research experiments, medical aesthetics, and other fields.
DPSS 532nm green laser is made features of good beam profile, ultra compact, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, etc.
The latest model has been upgraded to touchscreen control, allowing users to adjust the laser output power more precisely and conveniently. The main advantages of this laser include: high stability, high output power, and excellent beam quality.
Turn on the power switch. The “Power” indicator light will illuminate. Click “RUN” on the screen to start the laser and output laser light. The “LASER” light will illuminate. Click “STOP” to stop the laser. The “LASER” light will turn off. Click the “+” and “-” buttons to the right of “Current” to adjust the current. 1000 represents the full power current. The “X 50” at the top represents an adjustment step of 50, and the “X 1” in the second row represents an adjustment step of 1. The Current Feedback at the top of the panel represents the current operating current of the laser.
Switch to “External Control” mode. The laser will default to TTL modulation mode. Simply click “RUN” to output laser. To switch to analog modulation, an external signal is required to control the laser output. Go to the settings page and enter your password to access the switching interface. Select analog modulation. After switching modes, you will return to the main interface.

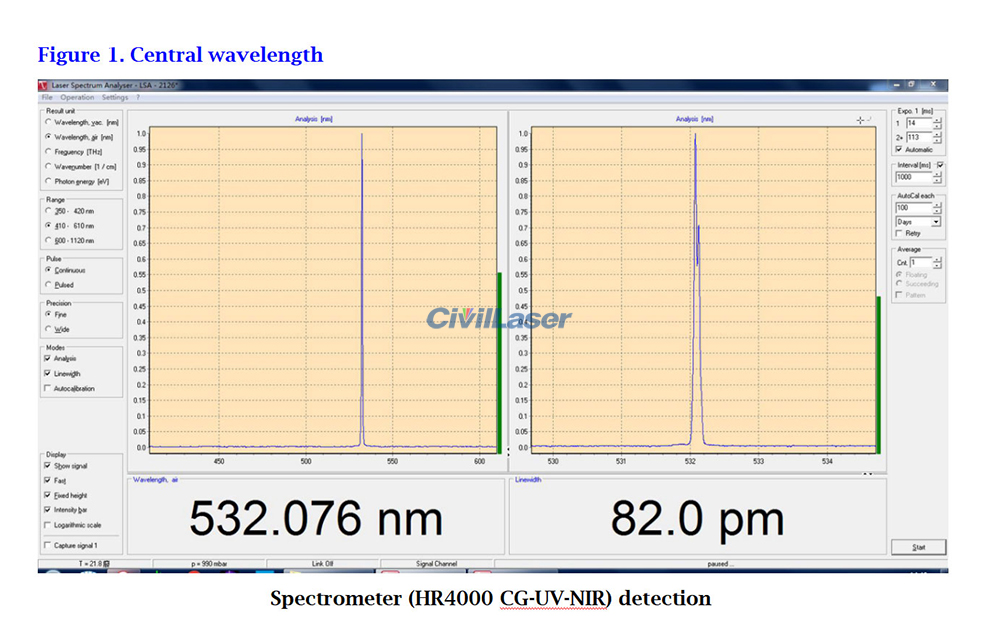

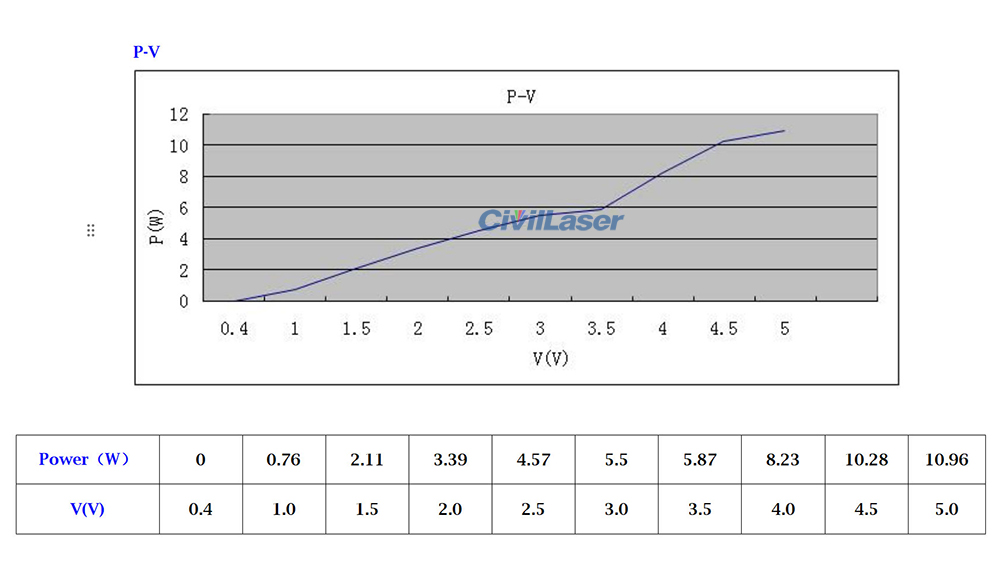

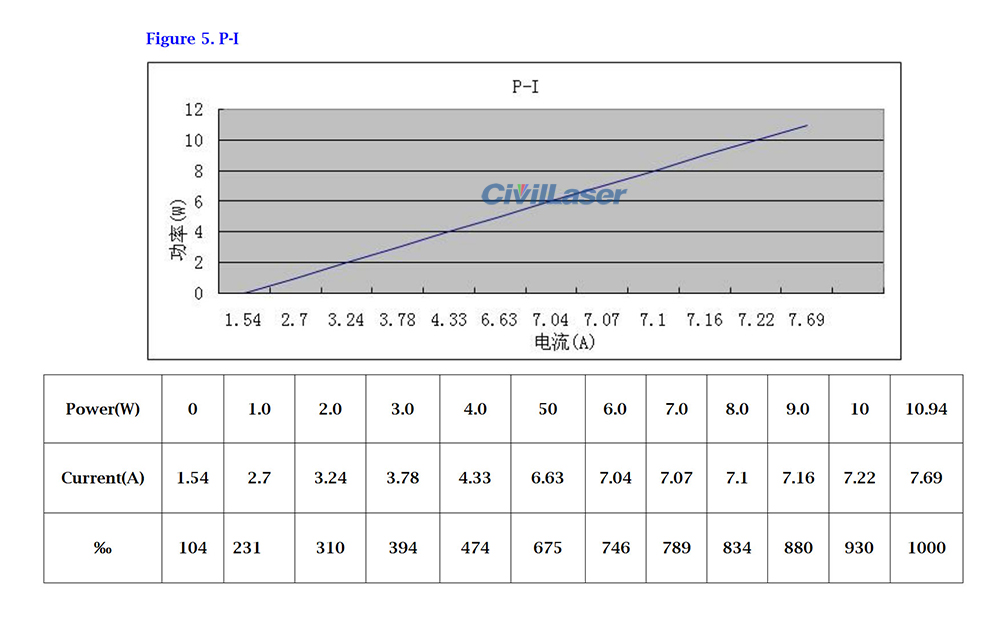

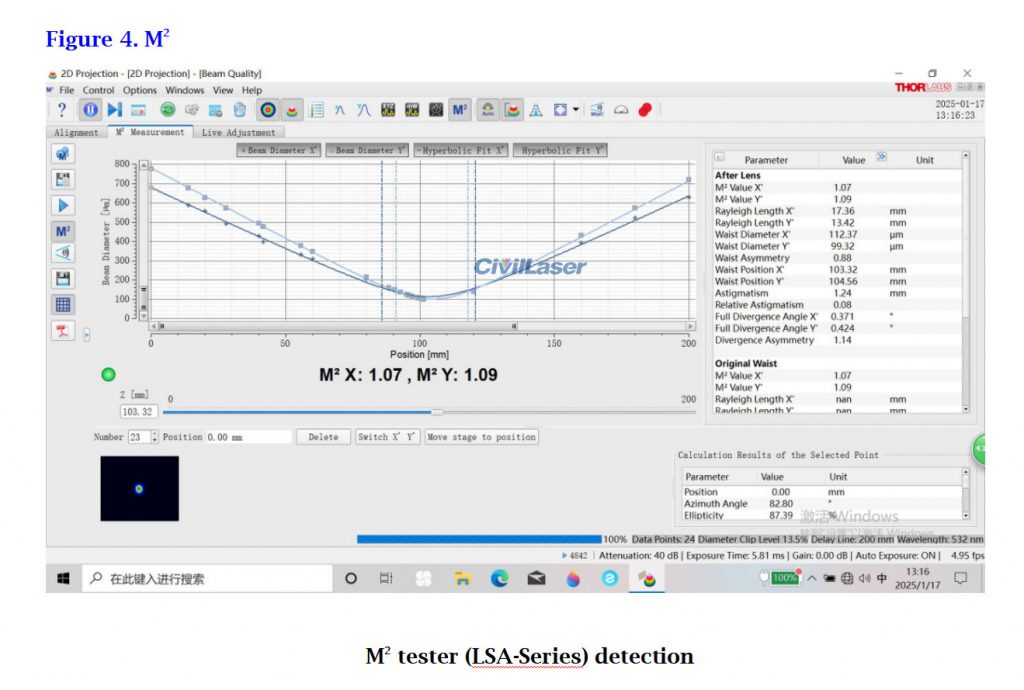

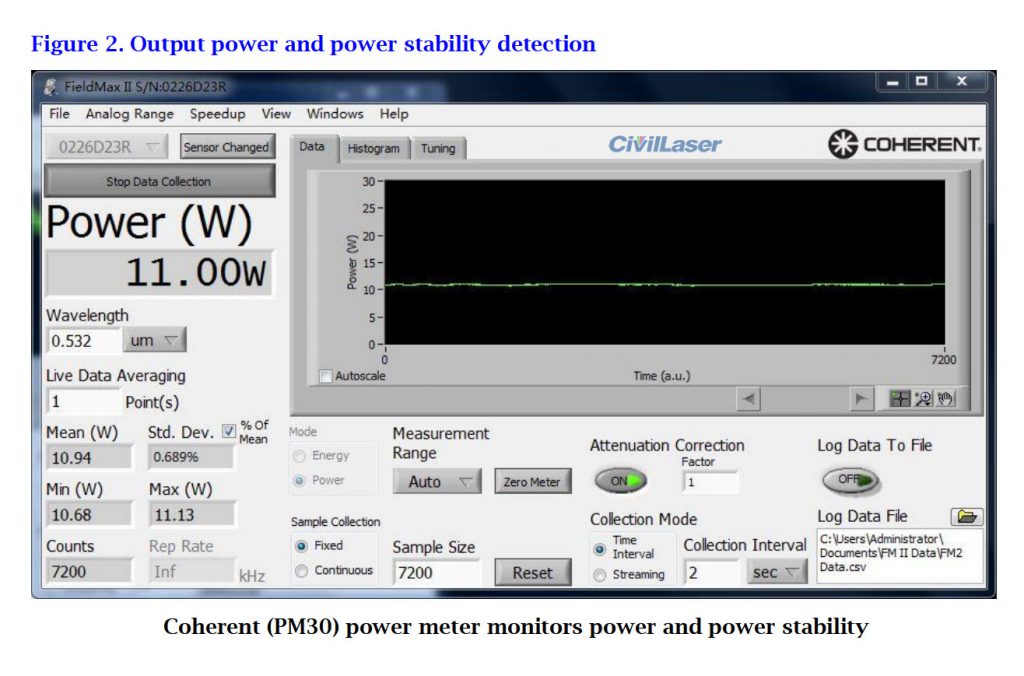

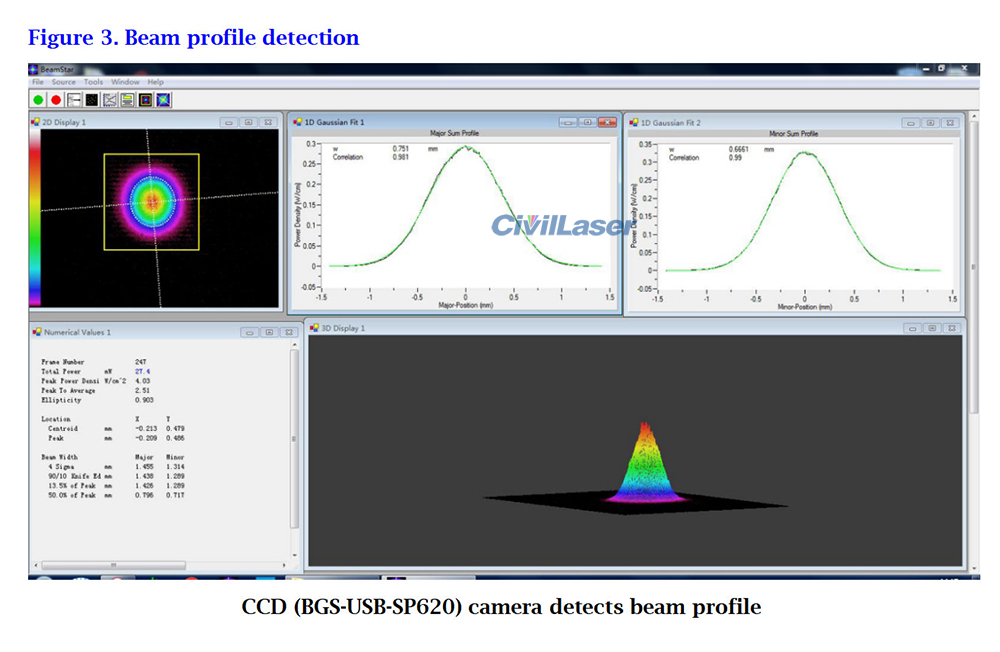

The test report of this 532nm 10W high-power DPSS laser system.
