Nichia 450nm 2.3W high power blue laser diode NDB7B77

$70.00

Add to Cart:


Nichia 450nm 2.3W high power blue laser diode NDB7B77

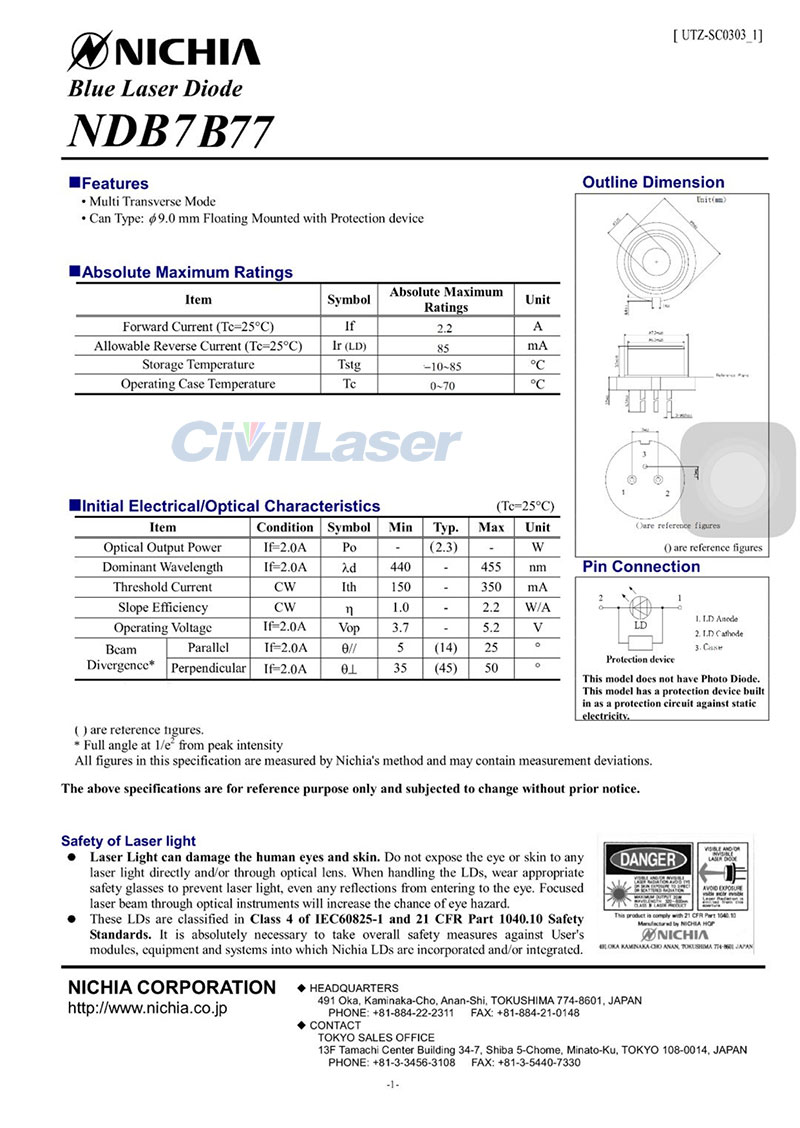

Specifications:
Product name: Nichia 450nm 2.3W high power blue laser diode NDB7B77
Output Wavelength: 450nm
Output Power: 2.3W
Pulse power:>4W
Country of origin: Japan
Operating Current: <2.2A
Operating Voltage: 3.7-5.2V
Working temperature: 0 ~ +70℃
Storage temperature:-10 ~ +85℃

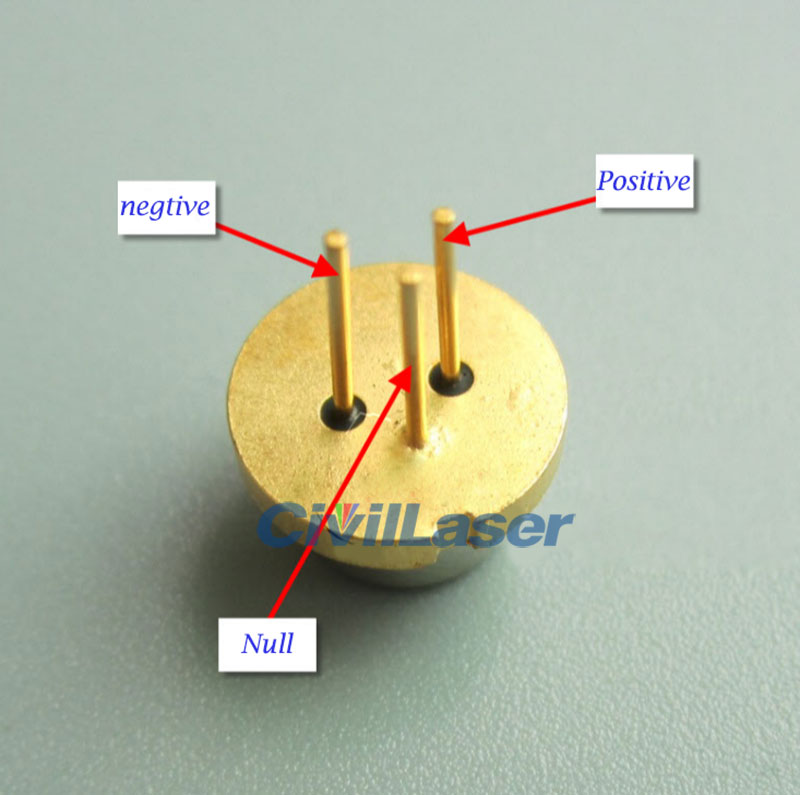

Package Type: T05(Φ9mm)
Working life: >10,000 hours

Note:
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.

This is a special product, before shipment to ensure the good quality and brand new, once sold, do not be warranty and refund!

Nichia 450nm 2.3W blue laser diode NDB7B77

Nichia 450nm 2.3W blue laser diode NDB7B77

Nichia 450nm 2.3W blue laser diode NDB7B77

Nichia 450nm 2.3W blue laser diode NDB7B77

Nichia 450nm 2.3W blue laser diode NDB7B77
