Nichia NDV4642VFR 405nm 300mW Blue Violet Laser Diode TO 3.8



Note:
This laser diode(Nichia NDV4642VFR 405nm 300mW)is out of production.
Only secondhand LD are in stock.($39/pcs second-hand NDV4642VFR LD.)

[Features]
Optical Output Power: 250mW CW  Pulse 500

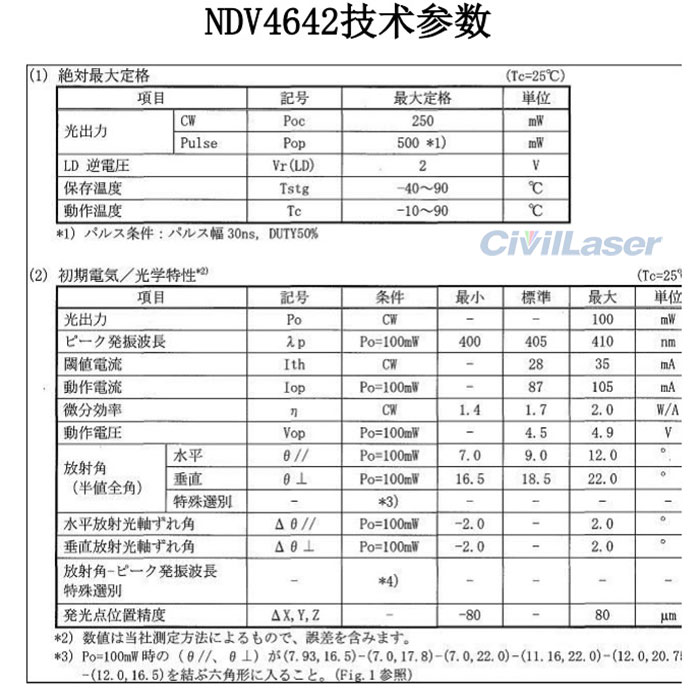

[Specifications]
Output Wavelength:405nm
Output Power:300mw
Reverse Voltage:2V
Storage Temperature:-40~90℃
Operating Case Temperature:  -10~90℃


Initial Electrical/ Optical Characteristics(Tc=25℃）:
Optical Output Power  <100mW
Dominant Wavelength   400nm-410nm
Threshold Current       <35mA
Operating Current       <105mA
Operating Voltage        4.5V~4.9V
Beam Divergence  Parallel   -2.0º~2.0º
Beam Divergence  Perpendicular -2.0º~2.0º
