QSI 635nm 20mW QL63H5SX Red Laser Diode TO-18

QSI 635nm 20mW QL63H5SX Red Laser Diode TO-18

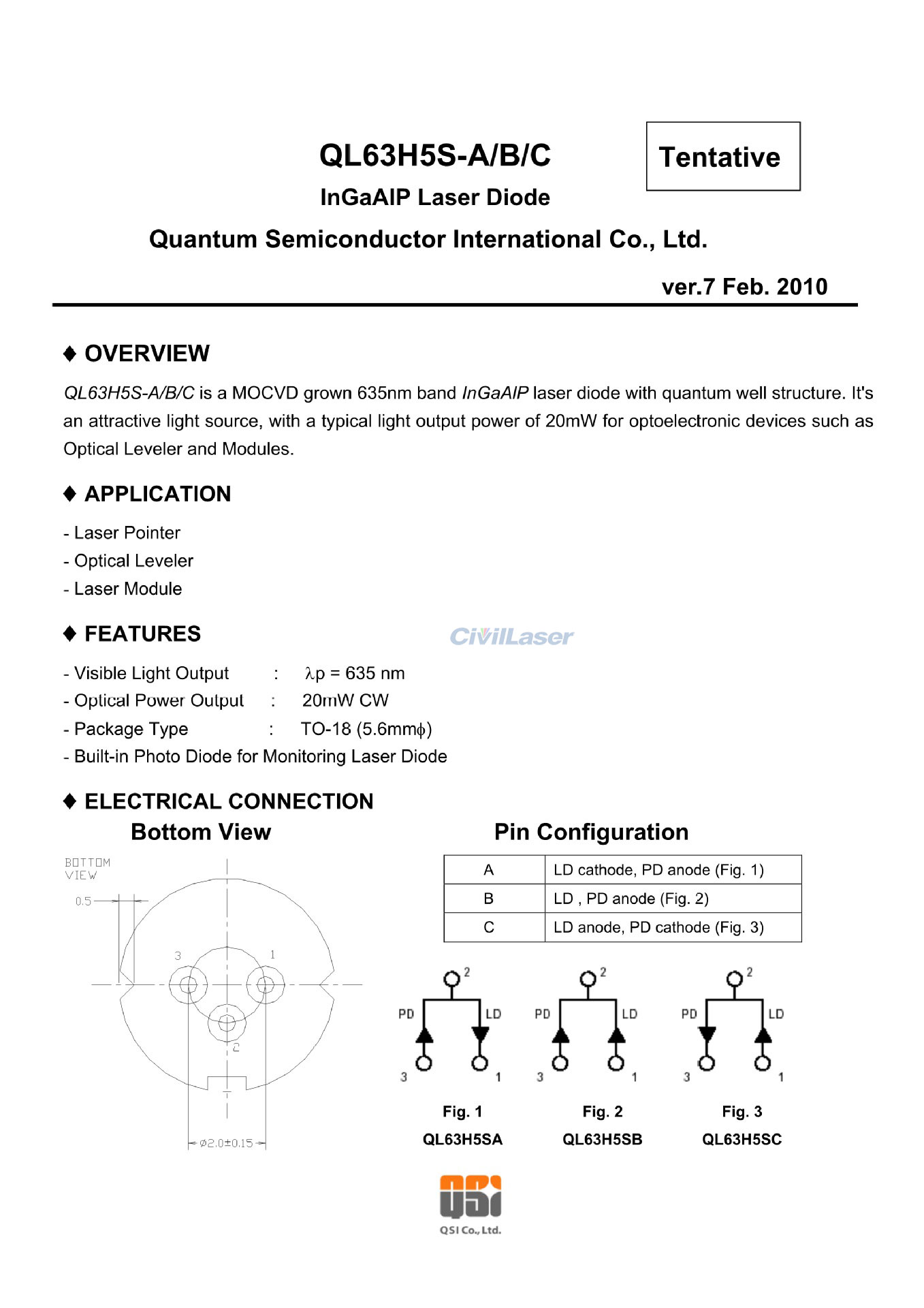

 [Features]
Visible light output:635nm
Optical output power :20mW CW

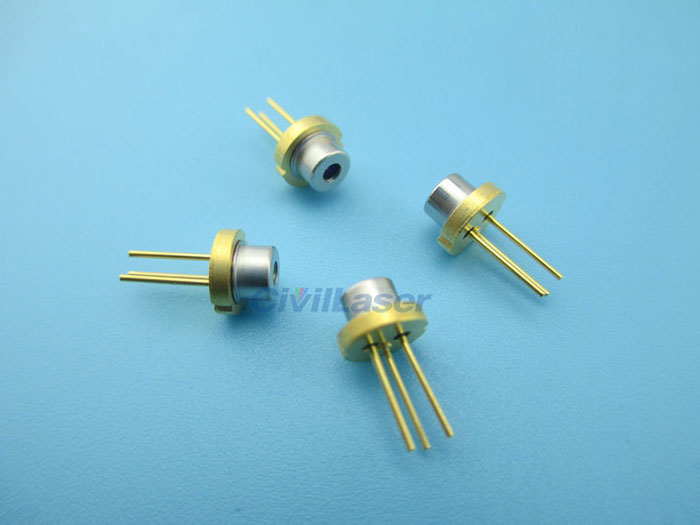

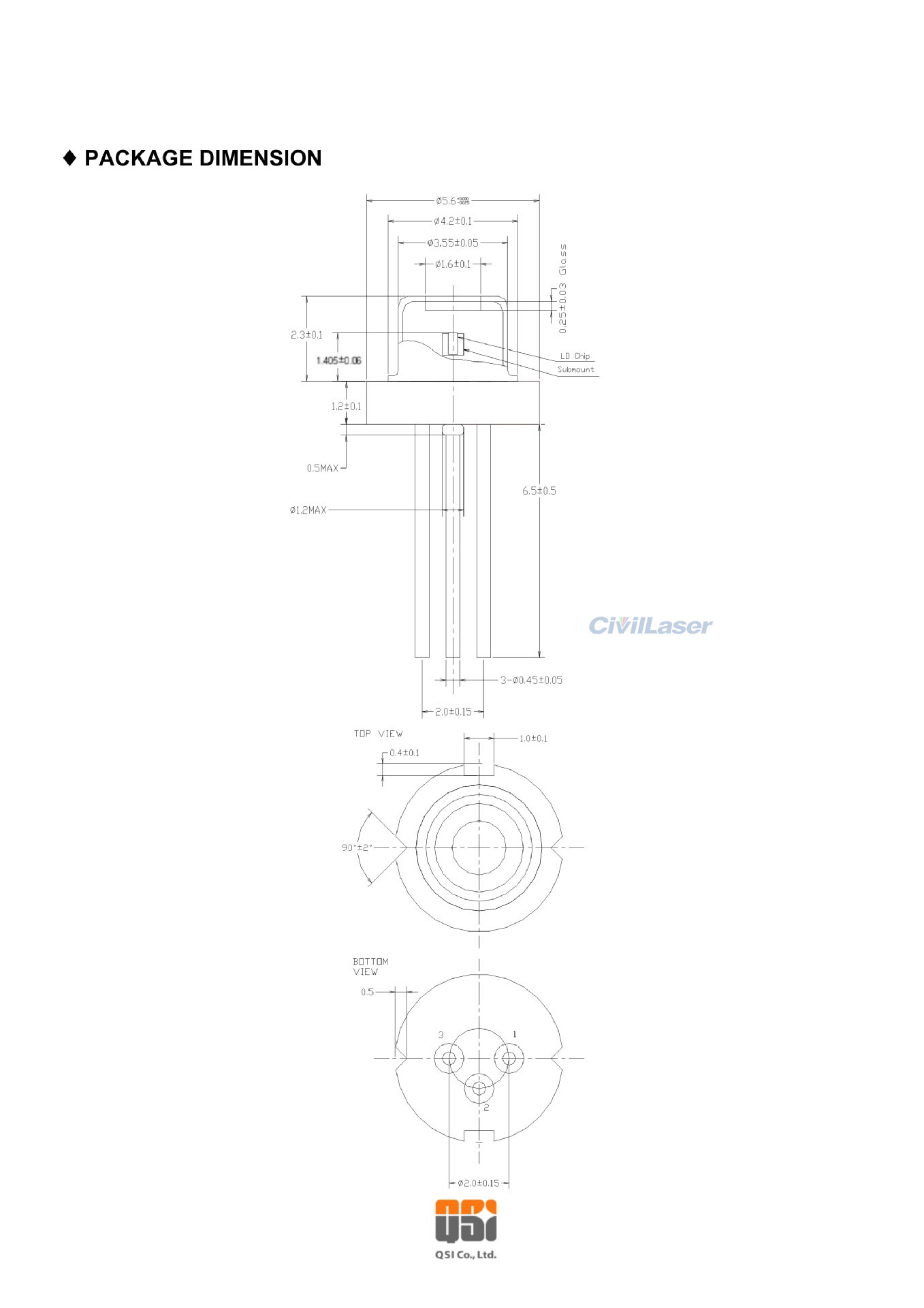

Package type:TO-18
Built-in photo diode for monitoring laser diode

[Application]
Laser Pointer
Optical Leveler
Laser Module

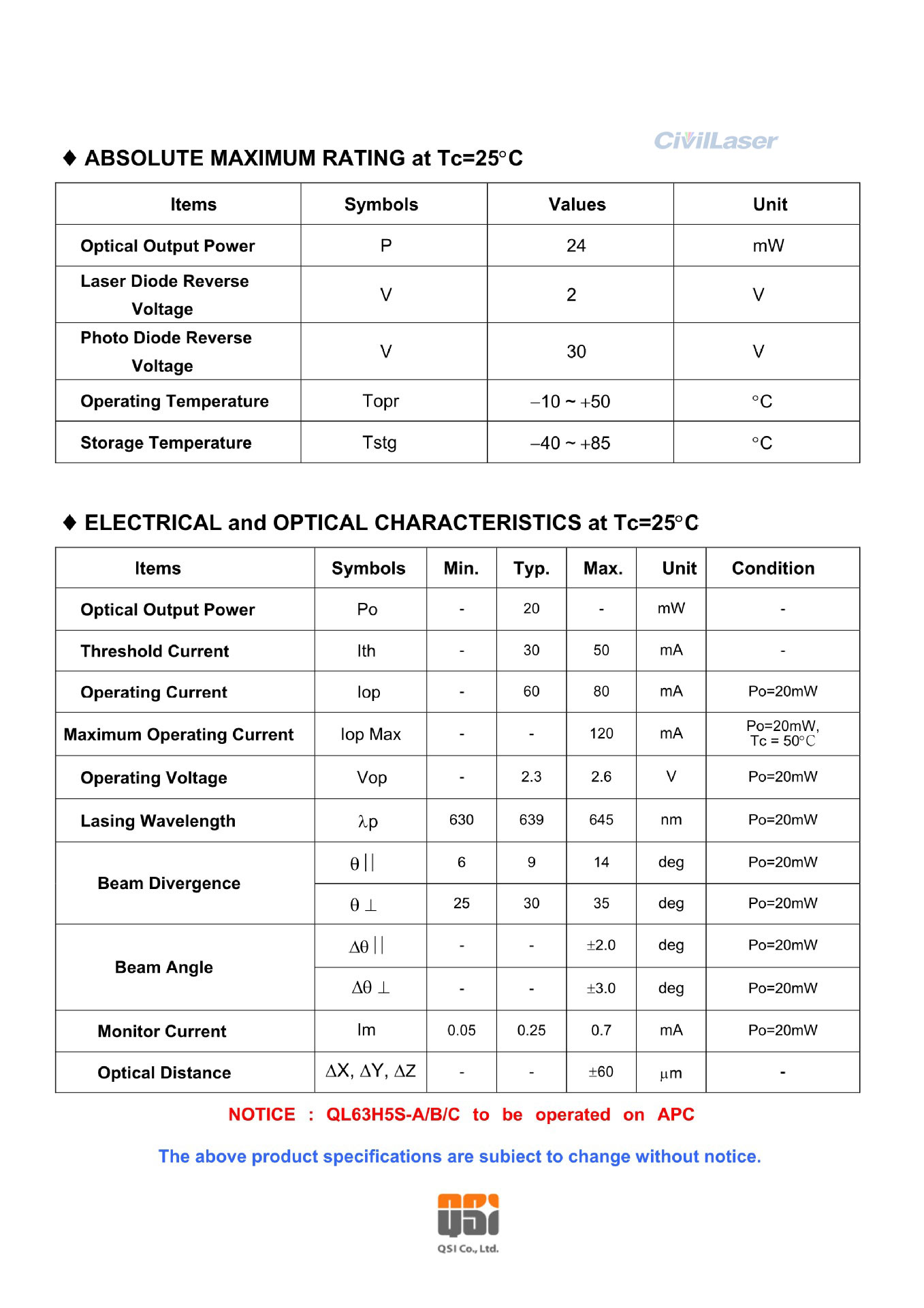

[Specifications]
Type:QL63H5SX
Output Wavelength:635nm
Output Power:20mW
Optical Output Power:24mW
Laser Diode Reverse Voltage:2V
Photo Diode Reverse Voltage:30V
Storage Temperature:-40~85℃
Operating Case Temperature: -10~50℃

Electrial and Optical Characteristics at Tc=25℃
Emission Wavelwngth:630nm-645nm
Threshold Current:30-50mA
Operating Current:60-80mA
Maximum Operating Current:120mA
Operating Voltage:2.3-2.6V
Monitor Current:0.05-0.7mA
