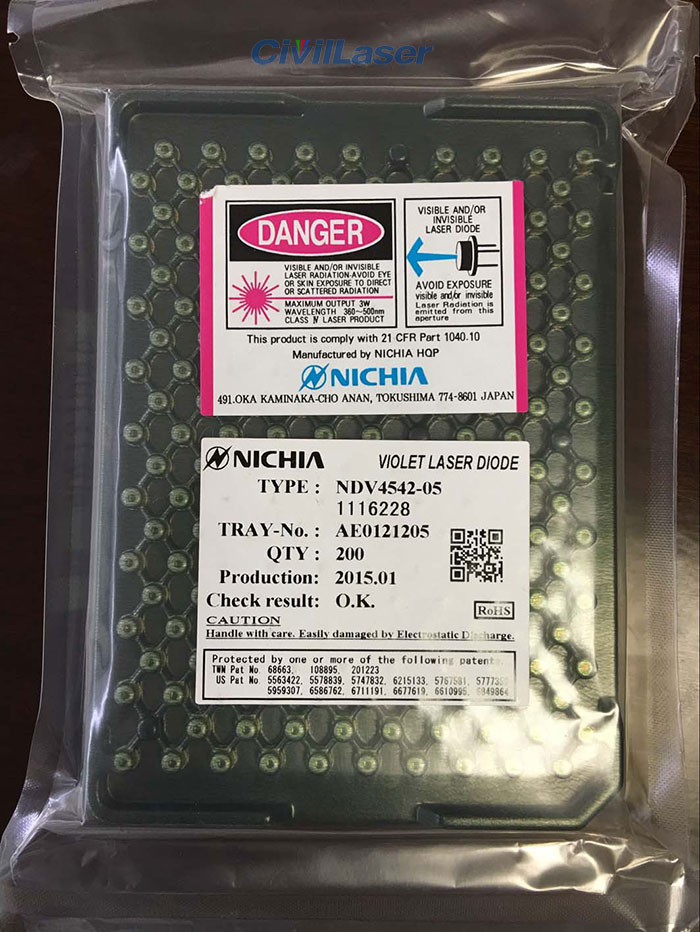

Brand New 405nm 200mw Blue Violet Nichia Powerful Laser Diode LD NDV4542/3.8

$75.00

Add to Cart:


Brand New 405nm 200mw Blue Violet Nichia Powerful Laser Diode LD NDV4542/3.8

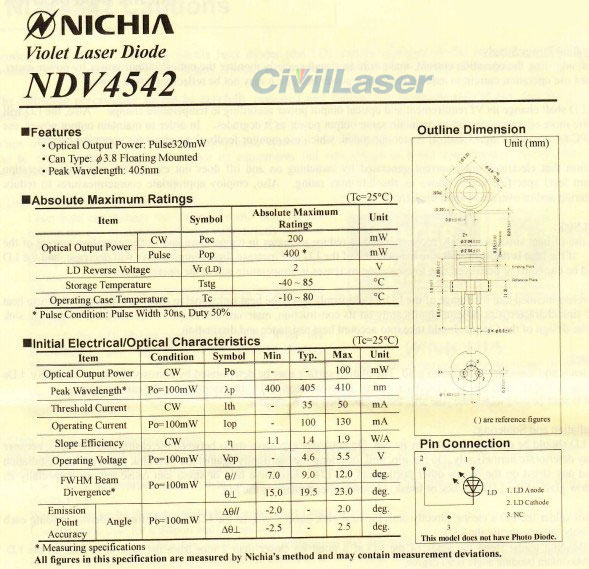

[Features]

Optical Output Power:Pluse 3.8mW
Can Type :Φ3.8 Floatimg Mounted
Peak  Wavelength:405nm


[Specifications]
Output Wavelength:405nm
Output Power:200mw
Forward Current (Tc=25℃): 2.0 A
Allowable Reverse Current (Tc=25℃:) 85mA
Storage Temperature:-40~85℃
Operating Case Temperature:  -10~80℃


Initial Electrical/ Optical Characteristics(Tc=25℃):
Optical Output Power  100mW
Dominant Wavelength   400nm-410nm
Threshold Current       <50mA
Operating Current       <130mA
Operating Voltage        4.0V~5.5V
Beam Divergence  Parallel   -2.0º~2.0º
Beam Divergence  Perpendicular -2.5º~2.5º

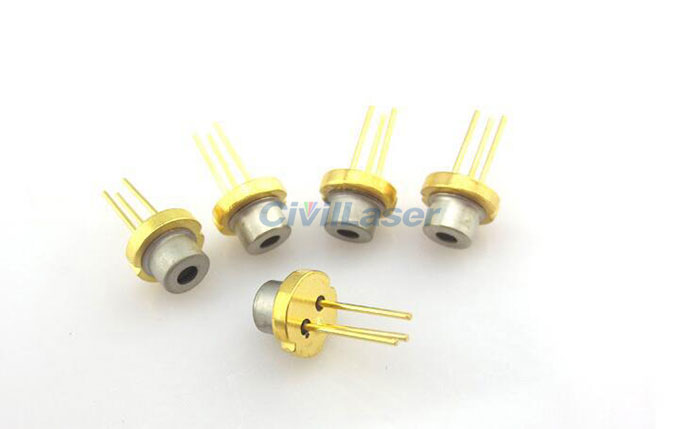

 405nm 200mw Blue Violet Nichia Powerful Laser Diode LD NDV4542/3.8

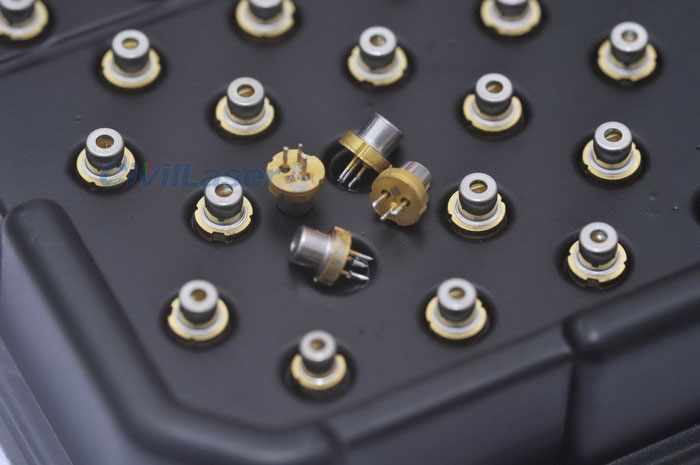

 405nm 200mw Blue Violet Nichia Powerful Laser Diode LD NDV4542/3.8

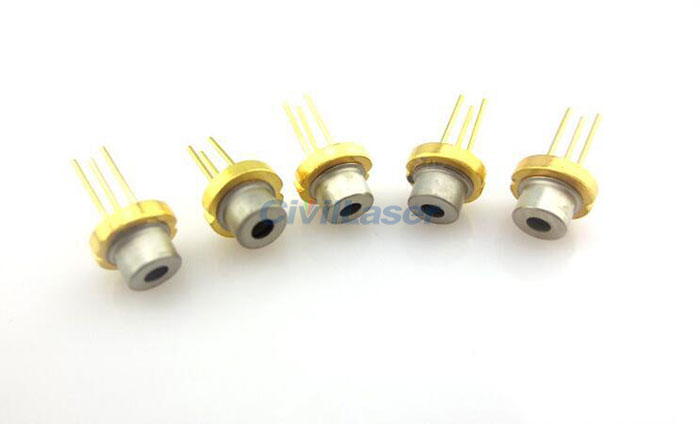

 405nm 200mw Blue Violet Nichia Powerful Laser Diode LD NDV4542/3.8

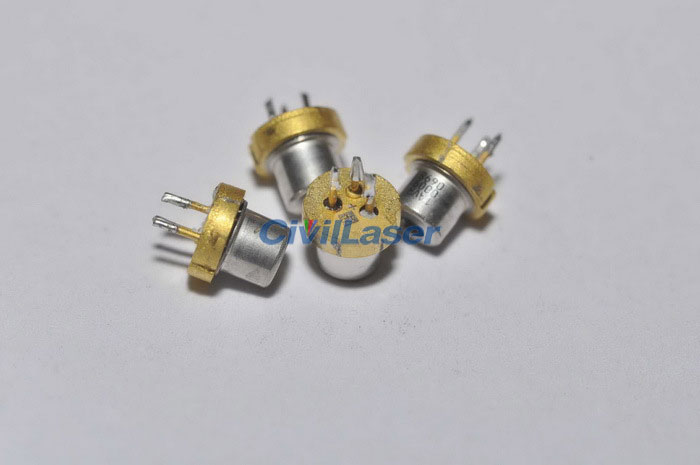

 405nm 200mw Blue Violet Nichia Powerful Laser Diode LD NDV4542/3.8

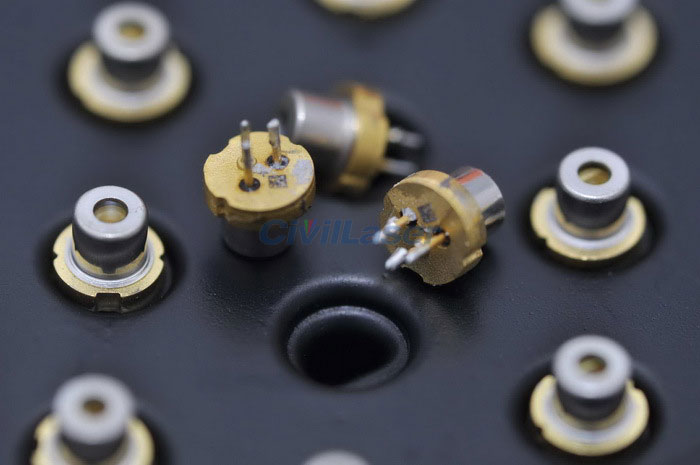

 405nm 200mw Blue Violet Nichia Powerful Laser Diode LD NDV4542/3.8

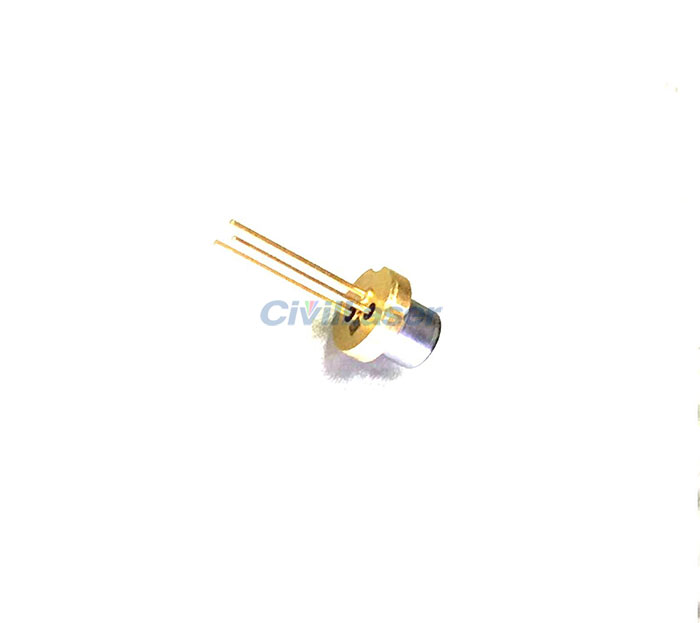

 405nm 200mw Blue Violet Nichia Powerful Laser Diode LD NDV4542/3.8

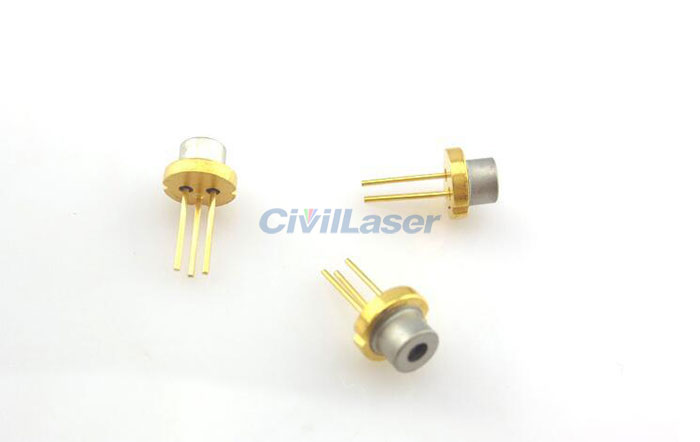

 405nm 200mw Blue Violet Nichia Powerful Laser Diode LD NDV4542/3.8

 405nm 200mw Blue Violet Nichia Powerful Laser Diode LD NDV4542/3.8

 405nm 200mw Blue Violet Nichia Powerful Laser Diode LD NDV4542/3.8
