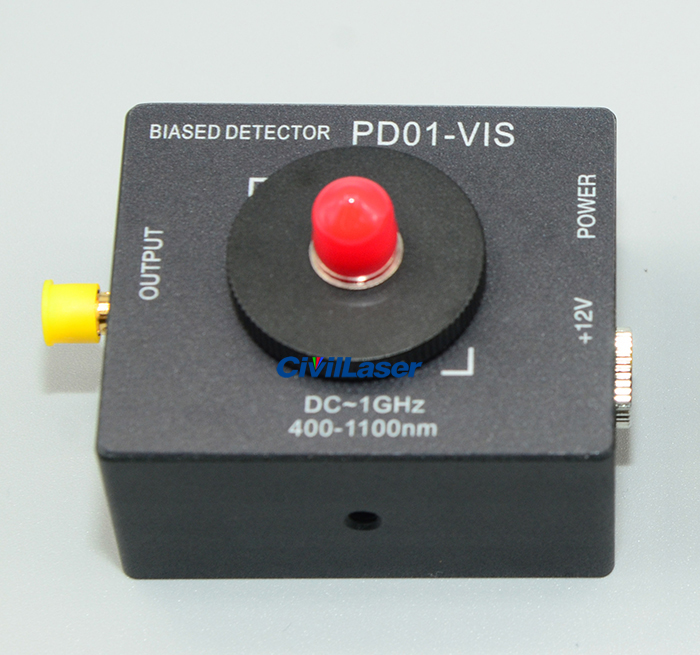

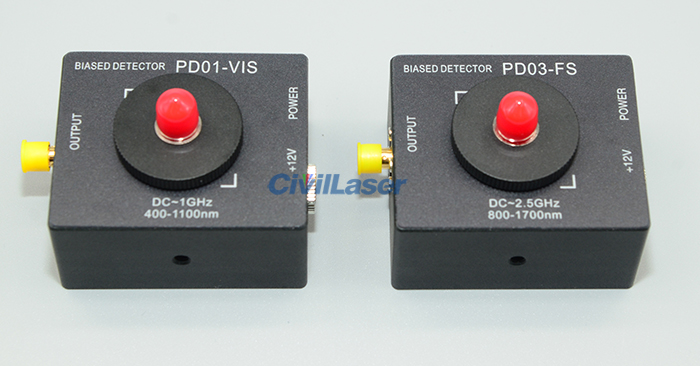

400~1000nm Si Photo Detector High-speed Photodetector Module PD01-VIS
PD01 series high-speed photodetector module has photoelectric response bandwidth ≥1GHz, pulse rising edge time 300ps. The RF signal output adopts SMA interface to facilitate connection with RF test equipment. Suitable for use in optical transmission systems, ultrafast laser pulse detection, etc.
[Features]
High bandwidth
High sensitivity
DC coupled output
[Applications]
Optical fiber communication
Pulse Laser Measurement
Optical fiber sensing
[Specification]
Parameters
|
Unit
|
Typical Value
|
Remarks
|
Model
|
--
|
PD01-VIS
|
|
Detector Material
|
--
|
Si
|
|
Detection Wavelength
|
nm
|
400~1100
|
|
Optical Power Input Range
|
dBm
|
-10 ~ 10
|
|
Rise Edge Time
|
ps
|
≤300
|
|
Max. Electrical Pulse Output
|
mV
|
100
|
|
Photoelectric Response
|
--
|
1.0A/W;30mV/mW
|
|
Return Loss
|
dB
|
-37
|
|
Output Matching Impedance
|
Ω
|
50
|
|
Frequency Bandwidth
|
GHz
|
DC~1GHz
|
@3dB
|
Optical Signal Input Interface
|
--
|
Free space output
|
|
RF Signal Output Port
|
--
|
SMA
|
|
Electrical and environmental parameters
|
Photo-detector Module
|
Power supply
|
DC 5V/12V, <5W
|
Size
|
60(W)×50(D)×43(H)mm
(Including FC/APC interface)
|
Operating temperature range
|
-5~+35°C
|
Operating humidity range
|
0~70%
|
Picosecond Pulse Laser Response:
