360nm~1620nm Laser Fiber Coupling Collimator 10mm 20mm Lens FC/PC SMA Interface

360nm~1620nm Laser Fiber Coupling Collimator 10mm 20mm Lens FC/PC SMA Interface

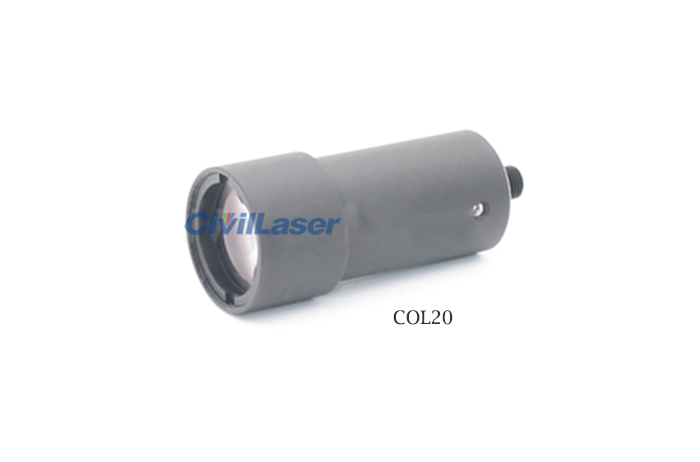

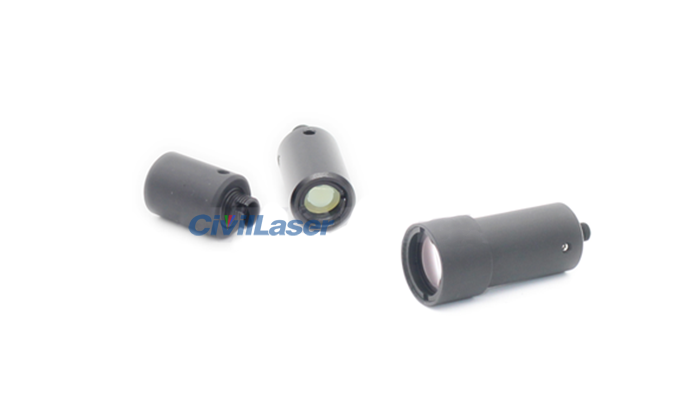

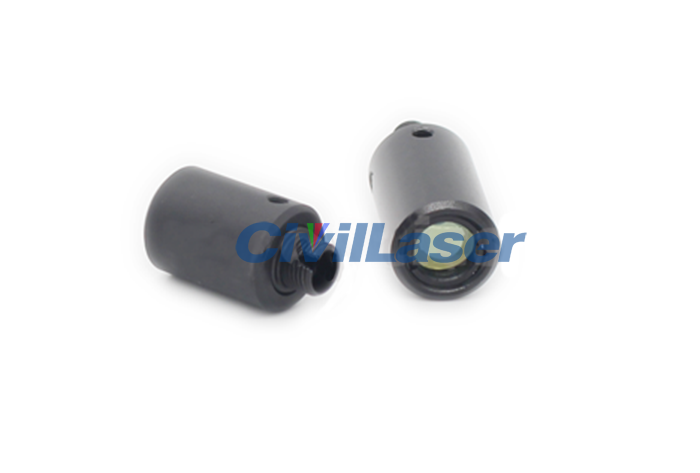

COL10/20 fiber optic collimator, with SMA905 or FC/PC interface, the lens diameter can be selected from 10mm, 20mm; it can be used for single-mode or multi-mode fiber jumper, the alignment wavelength is from 360 nm to 1620 nm, according to Each collimator is factory aligned for different wavelengths, simplifying fiber-coupled detection systems, and features an aluminum alloy anodized black housing. It is used to collimate the light exiting from FC/PC or SMA905 connector fiber, and has diffraction-limited performance. These fiber collimators can be fine-tuned by loosening the screws on the side, and the product is compact and easy to integrate into existing installations. Because aspheric lenses produce chromatic aberration, the effective focal length (EFL) is wavelength dependent. It can be connected to jumpers with optical fiber output power less than 10W!

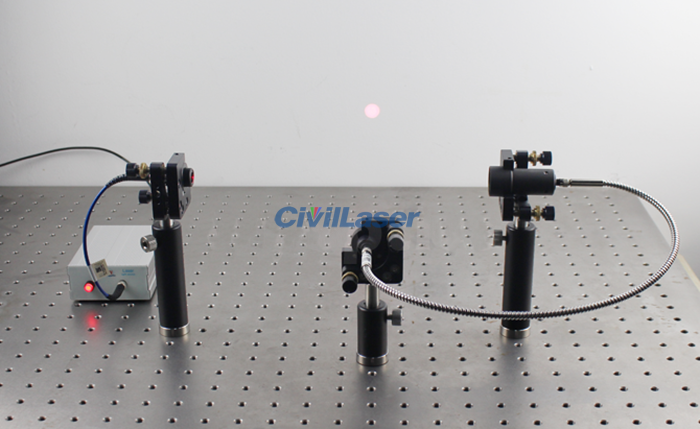

This product can be used for fiber collimation and coupling focusing. For collimation, it can be connected to single-mode or multi-mode fiber. If it is used for coupling and focusing, it can only be used to connect to multi-mode fiber (numerical aperture 0.12~0.22NA , core diameter ≧ 50μm).

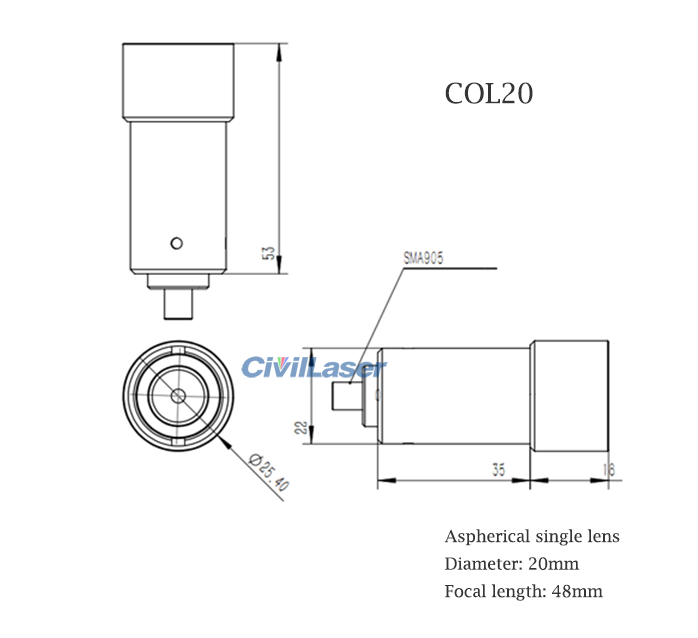

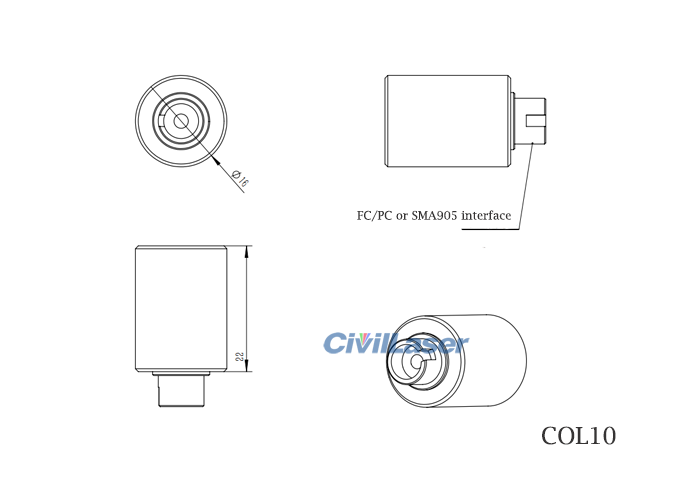

Collimator Model:
