High Stability & Good Beam Profile 532nm 10W DPSS Green Laser M2 Factor 1.2 Spectral Linewidth 0.2nm

High Stability & Good Beam Profile 532nm 10W DPSS Green Laser M2 Factor 1.2 Spectral Linewidth 0.2nm

DPSS 532nm green laser is made features of good beam profile, ultra compact, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, etc.

[Specifications]
Product Name: 532nm DPSS laser
Lead Time: 4~5 weeks.
Wavelength: 532±1nm
Output Power: 10W
Operating Mode: CW
Power Stability (rms, over 4 hours): <3%
Transverse Mode: TEM00
Spectral Linewidth: <0.2nm
M² Factor: <1.2
Beam Divergence(Full Angle): <1.5 mrad
Beam Diameter at the Aperture (1/e²): ~2.0 mm
Warm-up Time: 10 minutes

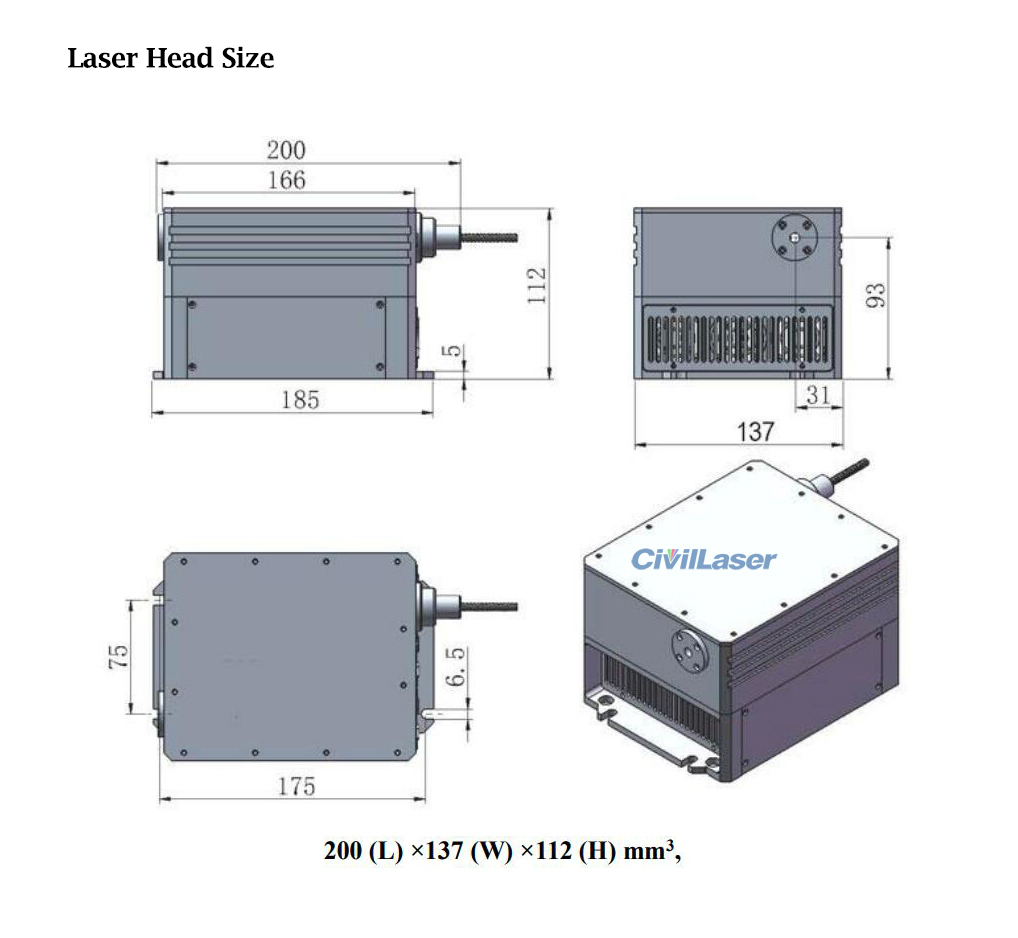

Beam Height from Base Plate: ~93 mm
Polarization Ratio: >100:1
Cooled Method: Air cooled
Operating Temperature: 10~35℃
Modulation: 1Hz~1KHz TTL Modulation (TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz optional)
Expected Lifetime: 10000 hours
Warranty Period: 1 year


Laser Test Report.pdf

Laser Instruction Manual.pdf
