Nichia 520nm 1W Green Laser Diode NDG7K75T Multi Transverse Mode φ9.0mm

$265.00

Add to Cart:


Nichia 520nm 1W Green Laser Diode NDG7K75T Multi Transverse Mode φ9.0mm

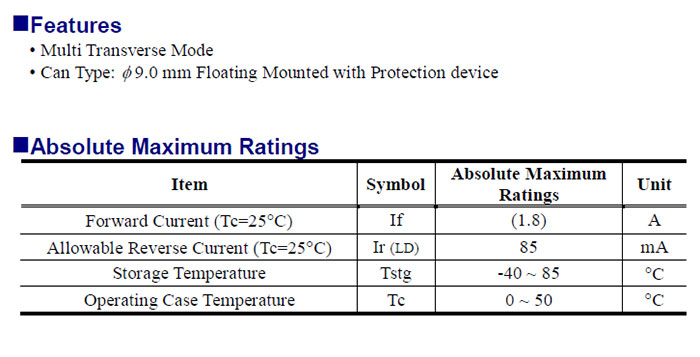

[Features]
1. Multi Transverse Mode

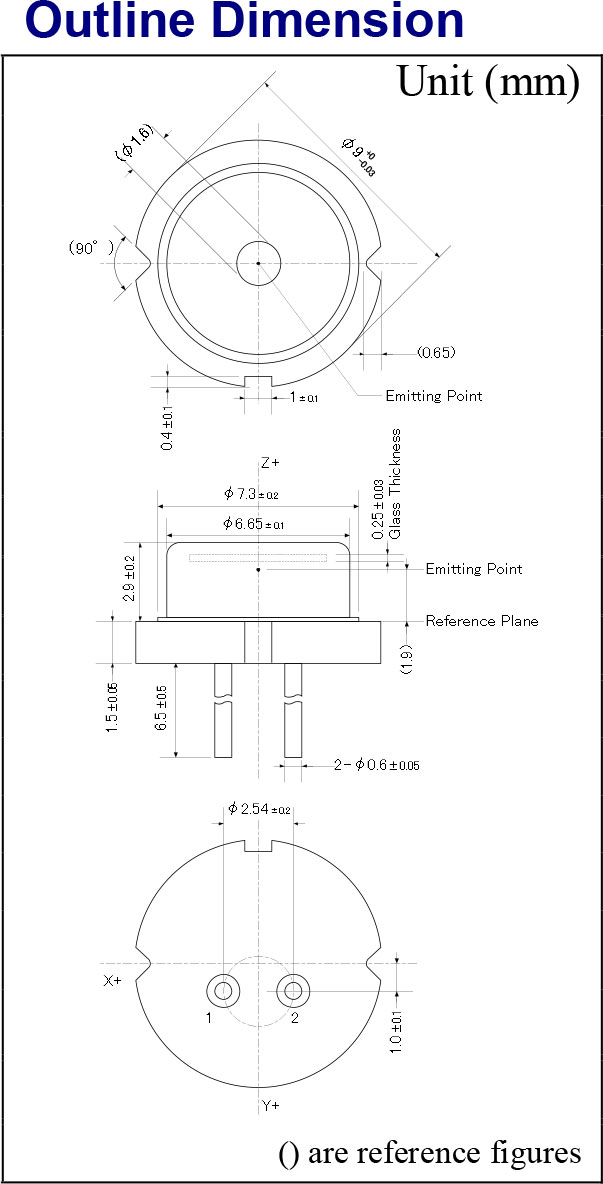

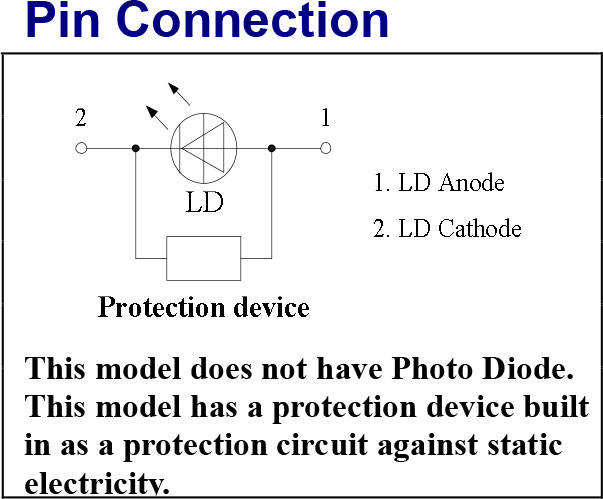

2. Can Type: φ9.0mm Floating Mounted with Protection device

[Specification]
Product Name: Laser Diode
Brand: Nichia
Model: NDG7K75T
Wavelength: 520nm
Output Power: 1W
Forward Current: 1.8A
Threshold Current: 0.3A
Allowable Reverse Current:85mA
Operating Voltage: 4.6V
Storage Temperature: -40 ~ 85°C
Operating Case Temperature: 0 ~ 50°C


NDG7K75T laser diode

NDG7K75T laser diode
