Nichia NDB7A75 445nm/448nm/450nm 3.5W 3500mW blue high power laser diode T05 9mm

$208.00

Add to Cart:


Nichia NDB7A75 445nm/448nm/450nm 3.5W 3500mW blue high power laser diode T05 9mm

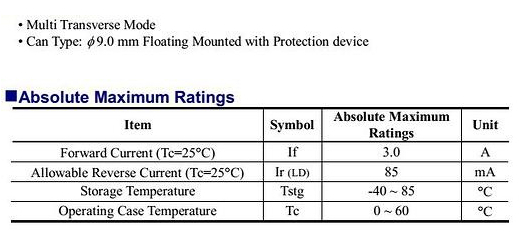

[Specifications]
Product name: Nichia NDB7A75 448nm 3.5w blue laser diode
Output Wavelength: 445nm~450nm
Central wavelength: 448nm
Output Power: 3.5W
Pulse Power: >7W
Place of production: Japan
Operating Current: 3A
Operating Voltage: 3.7V~5.2V
Operating Temperature: 0℃~60℃
Storage Temperature: -40℃~85℃

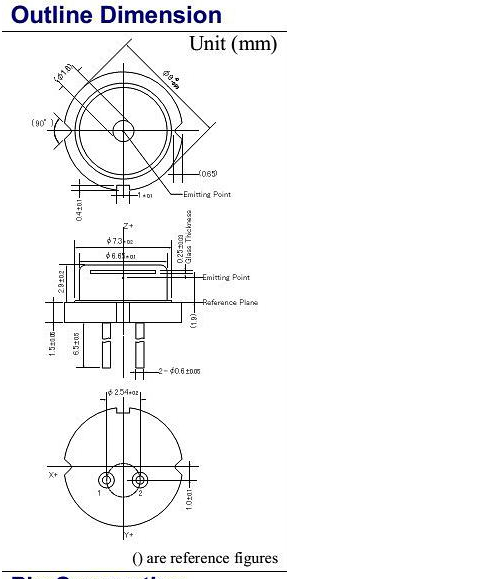

Package Type: T05( Φ9mm)


[Note]

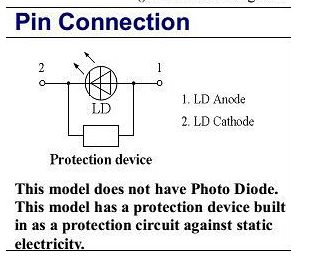

This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.

This is a special product, before shipment to ensure the good quality and brand new, once sold, do not be warranty and refund!
