New Nichia X6 405nm 120mw Blue Violet Laser Diode T018 5.6mm

$54.00

Add to Cart:


Nichia X6  405nm 120mw Blue Violet Laser Diode T018 5.6mm

This is a 6X-speed high-power blue-violet diode, the optical head is complete Sanyo,
but this laser tube is from Nichia, the quality is very good, with shear pin with a heat sink.

[Specifications]
Product name: Nichia 405nm laser diode
Output Wavelength: 405nm
Output Power: 120mw
Operating Current: <200mA
Operating Voltage: DC 5V

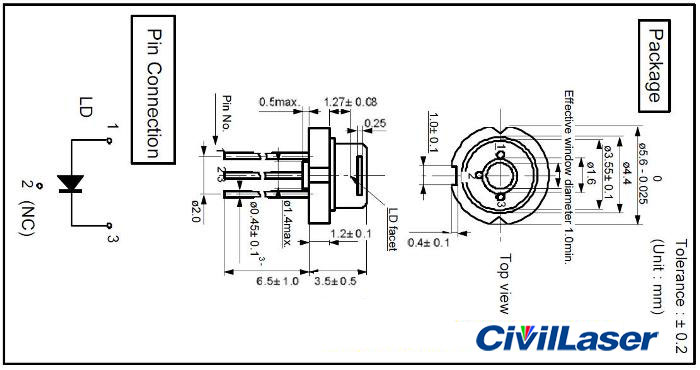

Package Type: T018(5.6MM)
Working life: >10,000 hours
Place of production: Japan


Note:
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.


This is a special product, before shipment to ensure the good quality and brand new, once sold, do not be warranty and refund!
