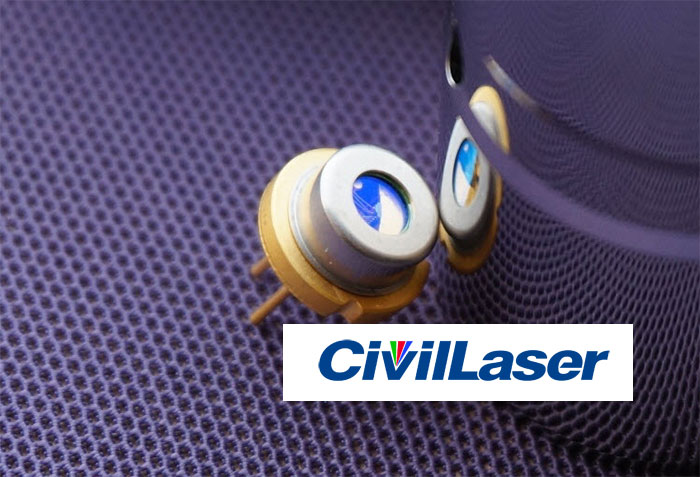

Original MITSUBISHI 638/639nm 2.5W Orange red laser diode Double beam Projection light source G84

$229.00

Add to Cart:


Disclaimer: this component is the original import, the light is a double beam. The price is a little high, applies to high-end applications.
For complete specifications, please contact us, thank you!


Note(Feb.17th,2016)
This laser diode is not new product, each laser diode be tested before send out,
so the pin may be supplied with solder.
Output power: 1800mw (Max 2500mW)


Specifications‘
Product brand: MITSUBISHI
Output wavelength: 639nm
Output power: 1800mw (Max 2500mW)
Working current: 2800mA
Threshold current: 700mA
Working voltage: 2.4V
Reverse voltage: 2V
Package form: TO-56 (9mm)
Working temperature: 0~+55 °C
Storage temperature: -40~+85 °C
Working life: more than 10000 hours


Note: this device is sensitive to electrostatic, do not direct contact by hand laser tube body if you have not do anti-static measures.
Also the product must have qualified driving circuit to make sure it work norma. Different output power have the same voltage, but different working current, circuit of the pipe drive current control is required within the safety range, otherwise it will affect the life.

This product is a special commodity, we will ensure that good before delivery, brand new, once sold, not to be guaranteed and refunded!
