Sharp 638nm 210mW Laser Diode GH0632BA2G Red Laser Beam TO18 Package

Sharp 638nm 210mW Laser Diode GH0632BA2G Red Laser Beam TO18 Package

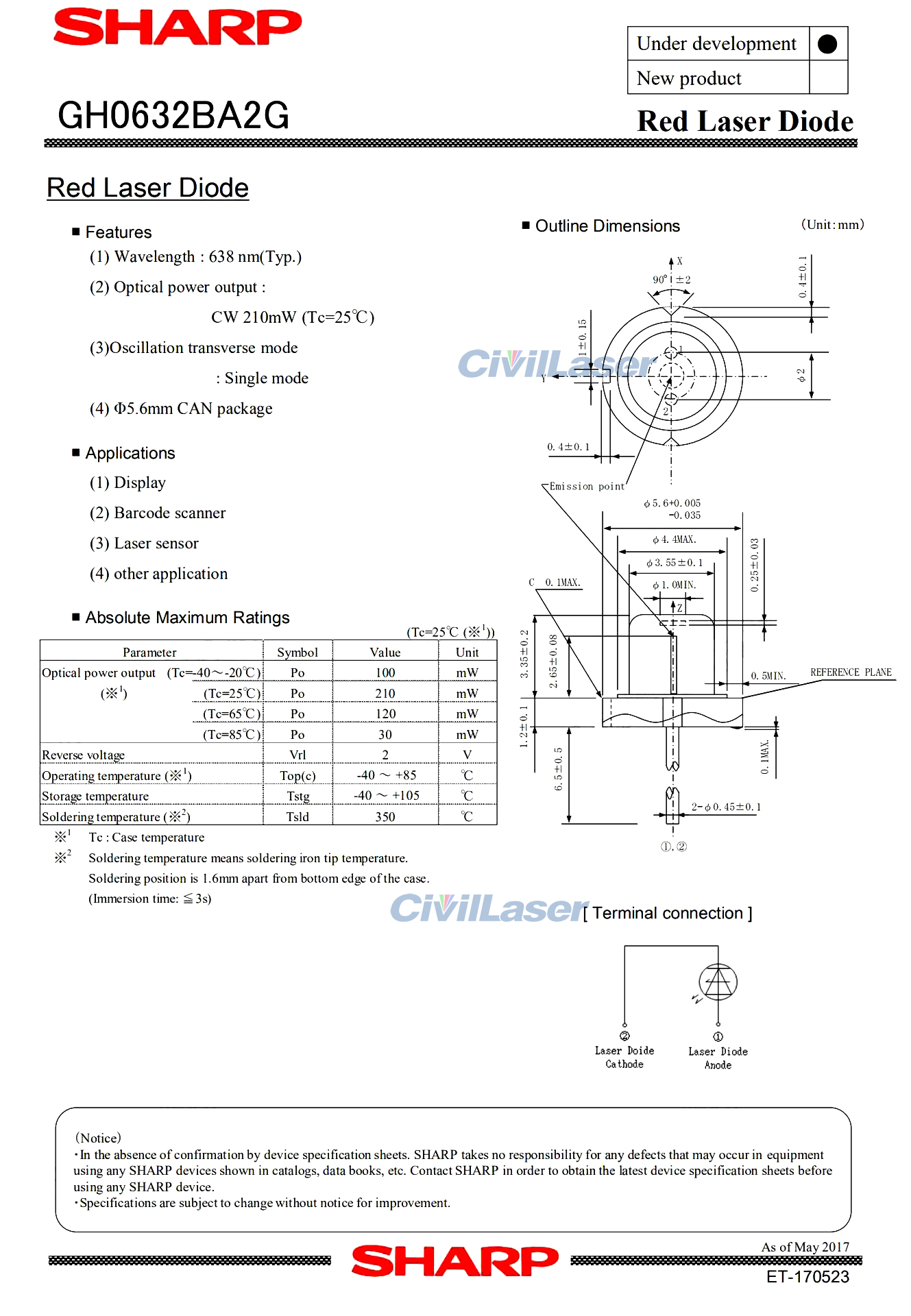

[Features]
1. Wavelength: 638nm (Typ.)
2. Optical power output CW 210mW (Tc=25℃)
3. Oscillation transverse mode: Single mode
4. Φ5.6mm CAN packsge

[Applications]
1. Display
2. Barcode scanner
3. Laser senor

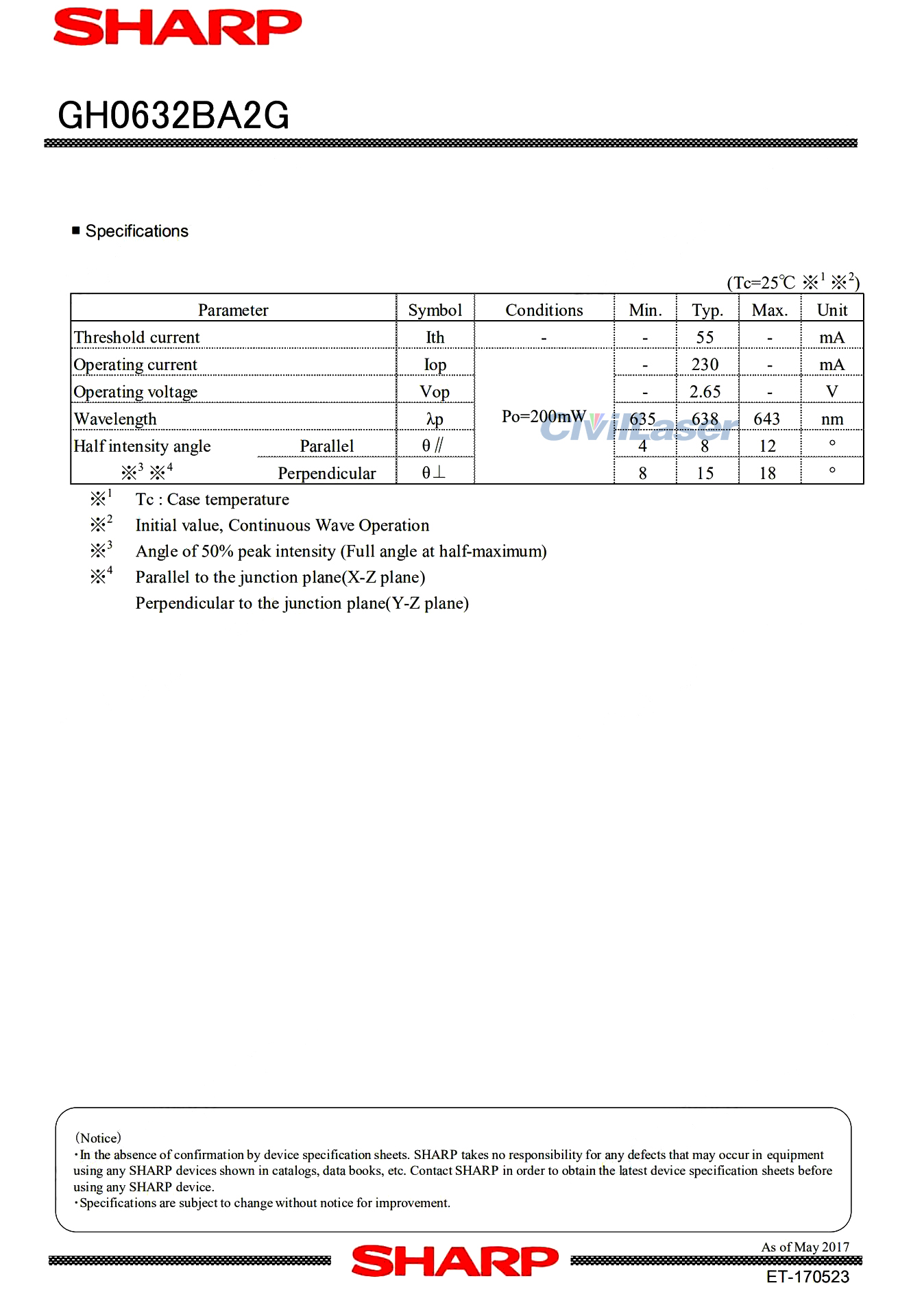

[Specification]
Product Name: Laser diode
Model: GH0632BA2G
Wavelength: 638nm
Output Power: 210mW
Threshold Current: 55mA
Operating Current: 230mA
Operating Voltage: 2.65V
Package: TO-18(Φ5.6mm)
Operating Temperature: -40~+85℃
Storage Temperature: -40~+105℃
