QL83F6SX 830nm 10mW Inrared Laser Diode QSI IR Laser

QL83F6SX 830nm 10mW Inrared Laser Diode QSI IR Laser

[Features]
830nm infrared laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Medical
IR Senor

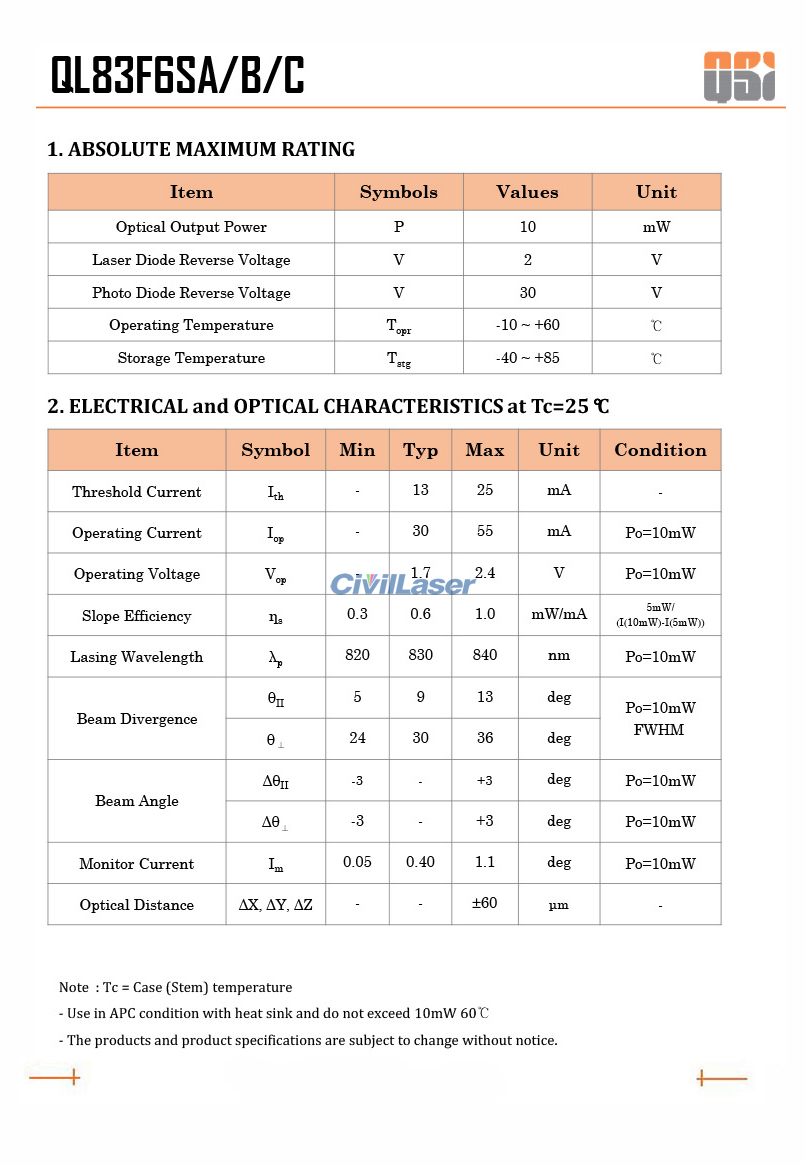

[Specification]
Product Name: Laser Diode
Model: QL83F6SX
Wavelength: 830nm
Output Power: 10mW
Laser Diode Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Threshold Current: 13mA
Operating Current: 30mA
Operating Voltage: 1.7V
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃

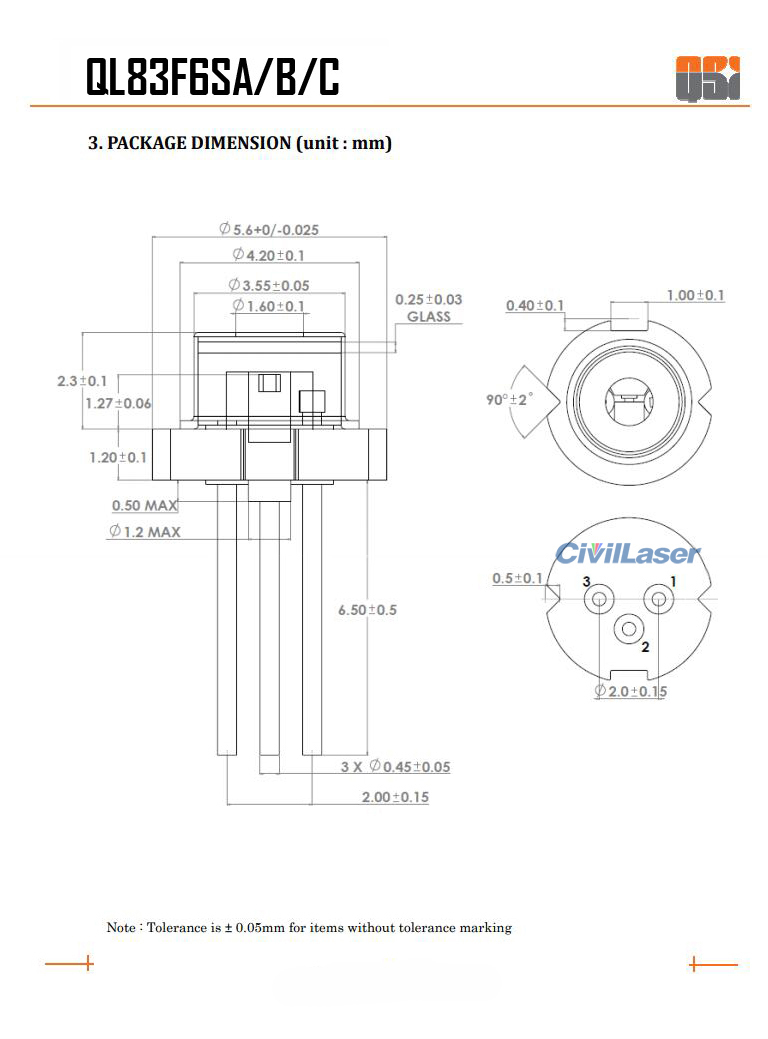

Package: TO18 (Φ5.6mm)
