850nm 30mW Inrared Laser Diode QSI QL85I6SX IR LD TO18 Φ5.6mm

850nm 30mW Inrared Laser Diode QSI QL85I6SX IR LD TO18 Φ5.6mm

[Features]
850nm infrared laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Industrial optical senor

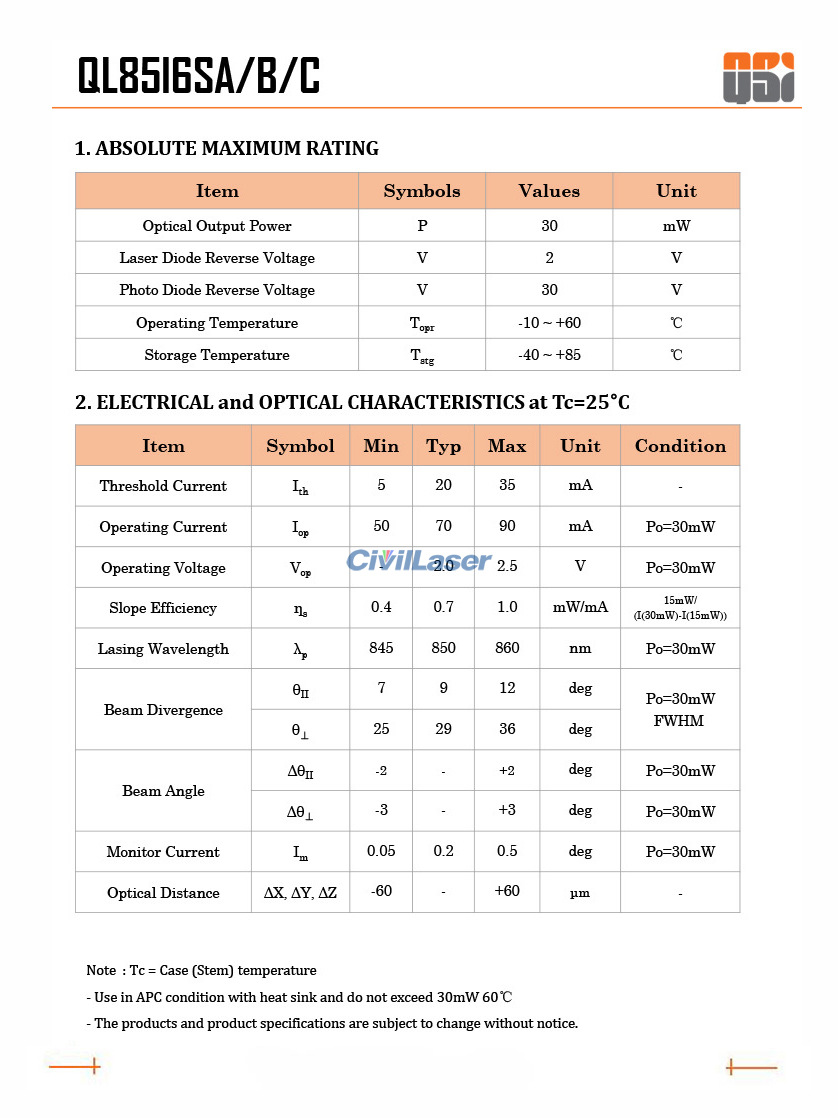

[Specification]
Product Name: Laser Diode
Model: QL85I6SX
Wavelength: 850nm
Output Power: 30mW
Laser Diode Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Threshold Current: 20mA
Operating Current: 70mA
Operating Voltage: 2.0V
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃

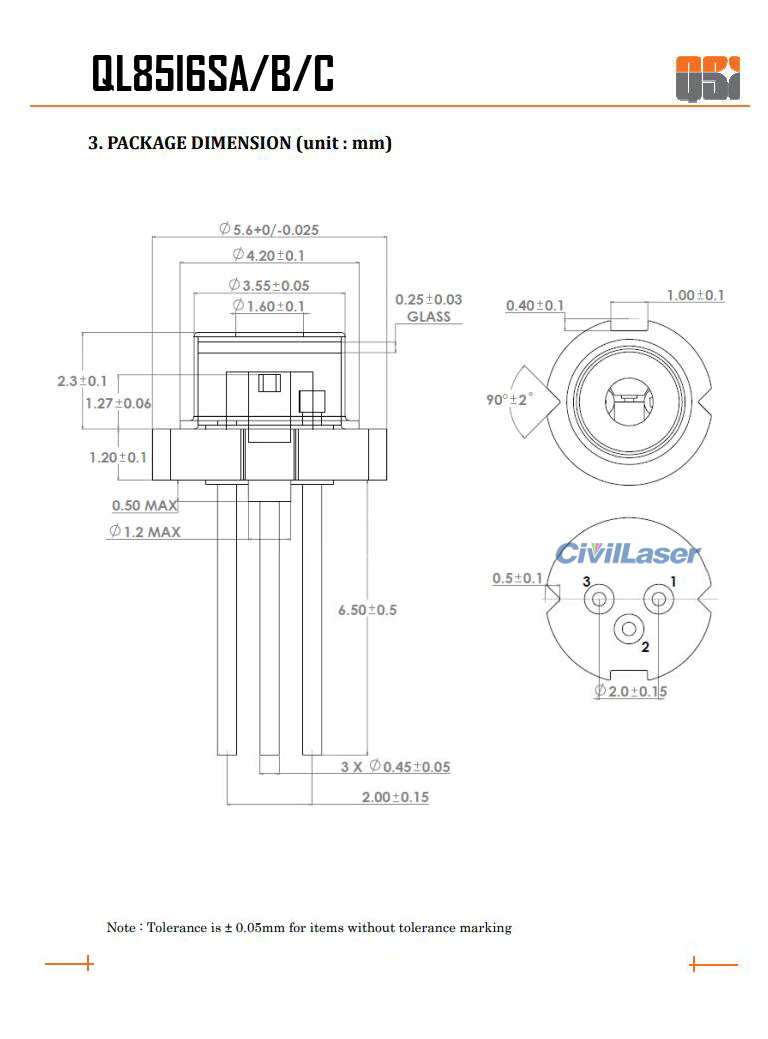

Package: TO18 (Φ5.6mm)
