QSI LD QL78F8SA/B/C 780nm 10mW Infrared Laser Diode TO18 Φ5.6mm

QSI LD QL78F8SX 780nm 10mW Infrared Laser Diode TO18 Φ5.6mm

[Features]
780nm infrared laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Laser senor
Industrial optical laser module

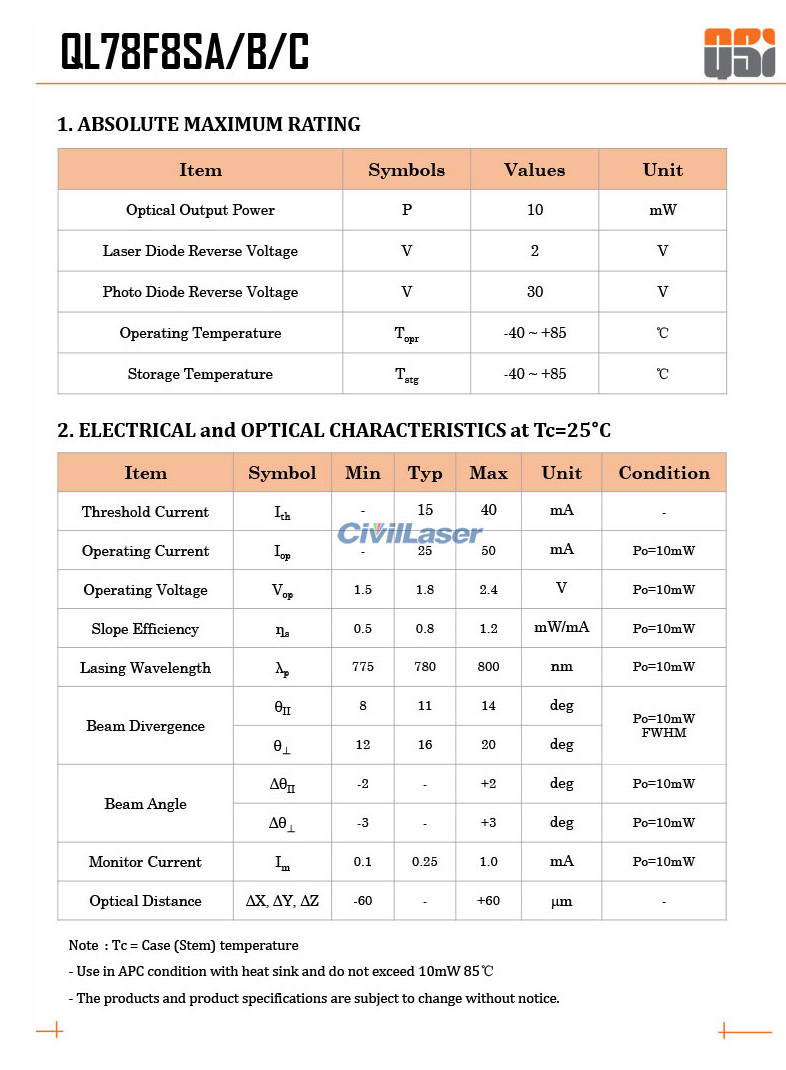

[Specification]
Product Name: Laser Diode
Model: QL78F8SX
Wavelength: 780nm
Output Power: 10mW
Laser Diode Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Operating Current: 25mA
Operating Temperature: -40~85℃
Storage Temperature: -40~85℃

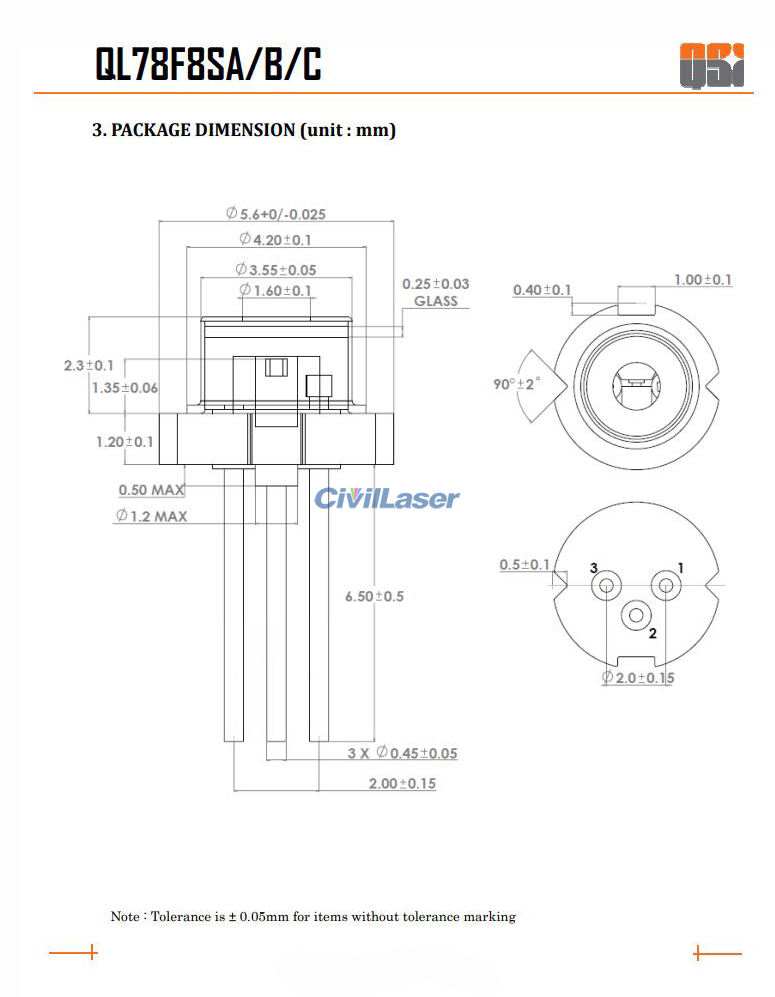

Package: TO18 (Φ5.6mm)
