900-1600nm 700-1600nm 1064nm 10600nm Infrared Laser Detection Board Dimming Card

900-1600nm infrared laser detection board

Detection wavelength: 900-1600nm infrared light, such as 905nm, 980nm, 1064nm, 1550nm, etc.
Detection power: ≥100mw infrared light (the greater the power, the higher the brightness)

Advantages:
The surface is smooth and beautiful, and it can withstand high-power lasers.

Uses:

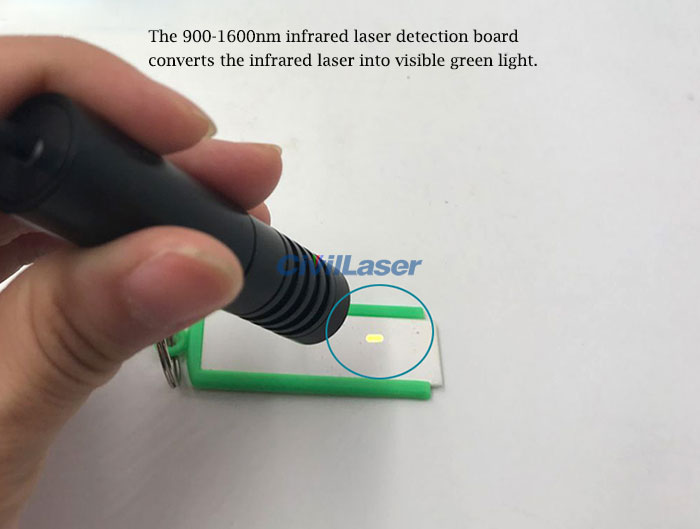

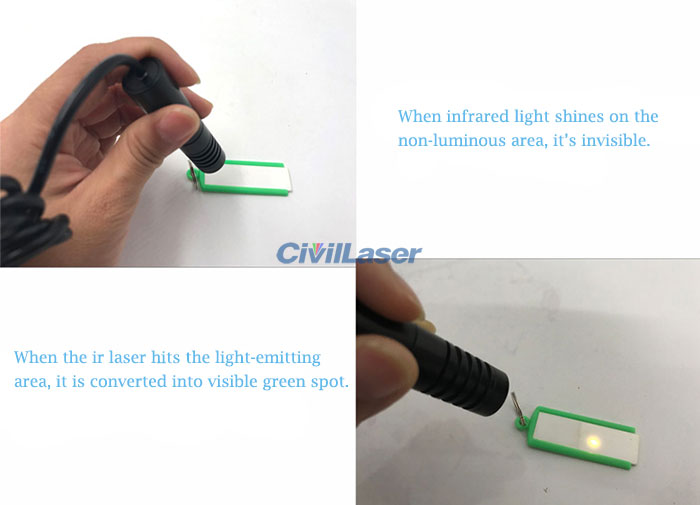

It can convert infrared light into green light visible to human eyes, and can effectively realize the detection, tracking, proofreading and identification of infrared beams;
It is suitable for scientific research and industrial fields, such as: marking machine cutting machine welding machine, infrared laser and infrared LED product light testing.

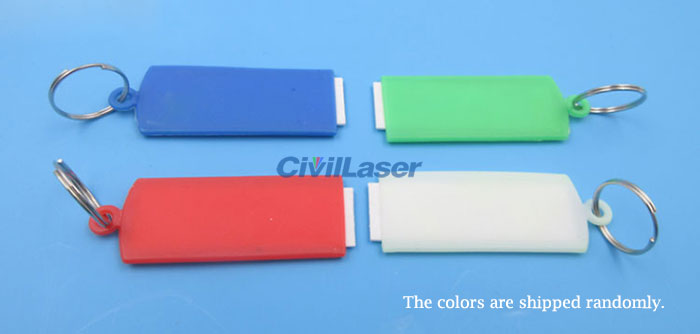

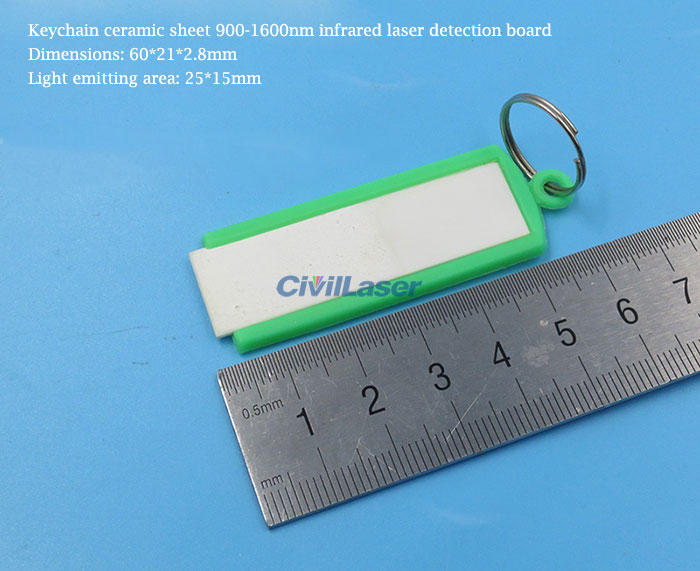

#01: Ceramic 60*21*3mm / Lighting area: 26*15mm
#02: Aluminum 62*20*1.6 / Lighting area: 24*18mm
#03: Ceramic 50*15*1mm / Lighting area: 22*15mm

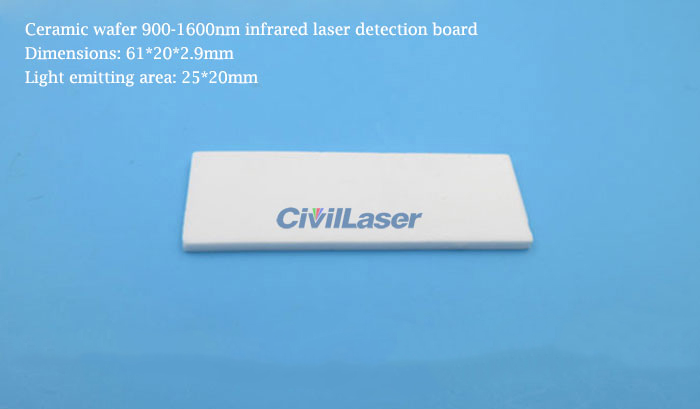

#04: Ceramic 60*20*3mm / Lighting area: 25*20mm

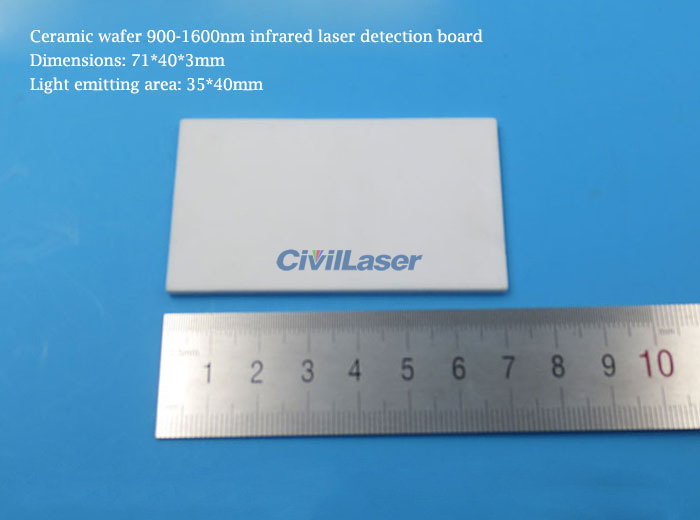

#05: Ceramic 71*40*3mm / Lighting area: 40*40mm

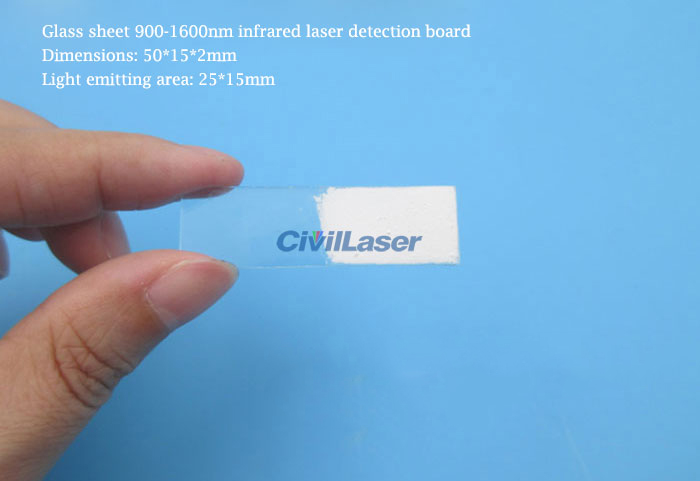

#06: Glass 50*15*2mm / Lighting area: 23*15mm

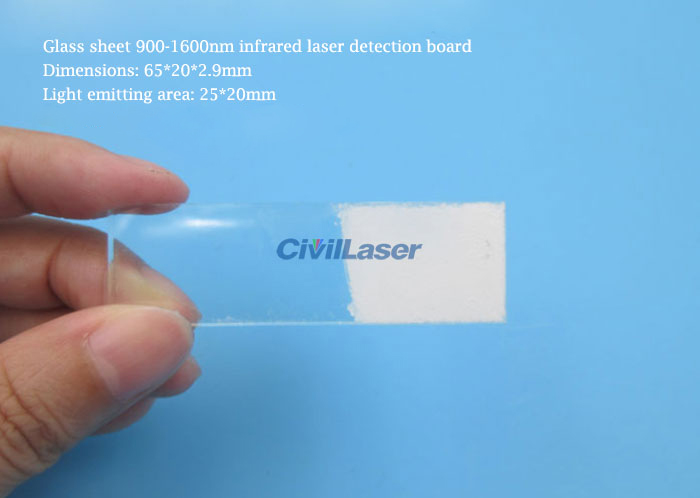

#07: Glass 65*20*3mm / Lighting area: 25*20mm
-------------------------------------------------------------------

1064nm infrared laser detection board

Detection wavelength: 1064nm
Detection power: ≥100mw infrared light (the greater the power, the higher the brightness)

Advantages: The surface is smooth and beautiful, and it can withstand high-power lasers.

Uses: It can convert infrared light into green light visible to human eyes, and can effectively realize the detection, tracking, proofreading and identification of infrared beams;
It is suitable for scientific research and industrial fields, such as: light testing of infrared laser and infrared LED products.

#08: Ceramic 60*20*3mm / Lighting area: 26*20mm
#09: Glass 50*15*2mm / Lighting area: 21*15mm
#10: Glass 65*20*3mm / Lighting area: 28*20mm

-------------------------------------------------------------------

700-1400nm infrared laser detection board

Detection power: ≥0.3mw infrared light (the greater the power, the higher the brightness)

Advantages: The detection plate is made of conversion luminescent material phosphor, which can obtain energy from ordinary light sources. When the incident infrared light excites the phosphor material, the stored energy is released in the form of light
Come.
It has the characteristics of high brightness, high contrast and strong edge sharpness.

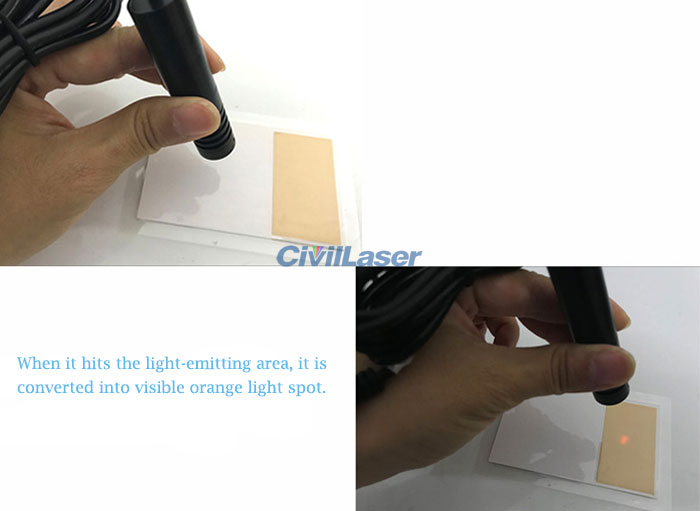

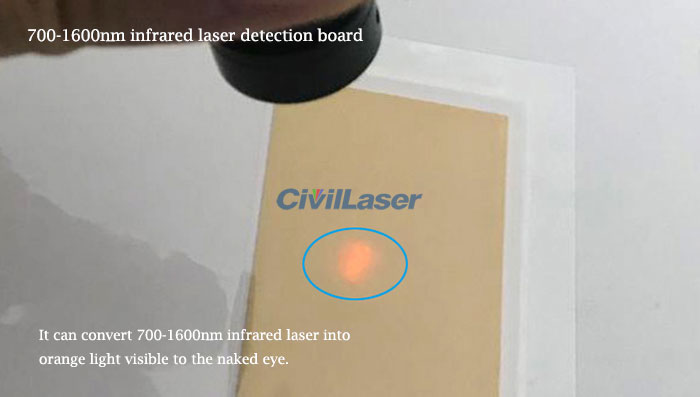

Uses: It can convert infrared light into orange light visible to human eyes, and can effectively realize the detection, tracking, proofreading and identification of infrared beams;
It is used in near-infrared light detection of various semiconductor lasers, infrared light-emitting diode emission light tracking, YAG and other large laser beam calibration, optical fiber communication signal detection and other fields.

#11: Detection wavelength: 700-1400nm / 102*66*1.2mm / Light emitting area: 50*30mm
#12: Detection wavelength: 800-1600nm / 101*66*1.5mm / Light emitting area: 20*20mm
#13: Detection wavelength: 800-1700nm / 102*66*1.2mm / Light emitting area: 50*30mm

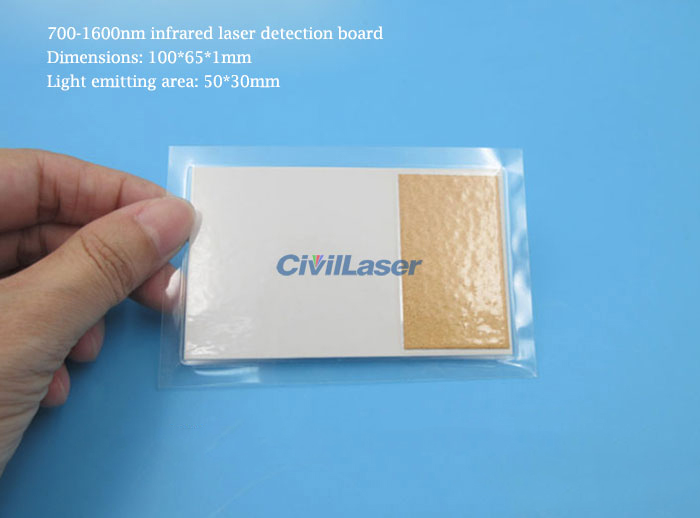

#14: Detection wavelength: 700-1600nm / 102*66*1.2mm / Light emitting area: 50*30mm

-------------------------------------------------------------------

CO2 laser aluminum plate 10600nm (10.6μm) infrared laser detection plate

#15: 95*30*1mm / Lighting area: 50*30mm

Detection power: ≥1mw infrared light (the greater the power, the higher the brightness)
Advantages: It has the characteristics of high brightness, high contrast and strong edge sharpness.
Uses: It can convert infrared light into white light visible to human eyes, and can effectively realize the detection, tracking, proofreading and identification of infrared beams.
