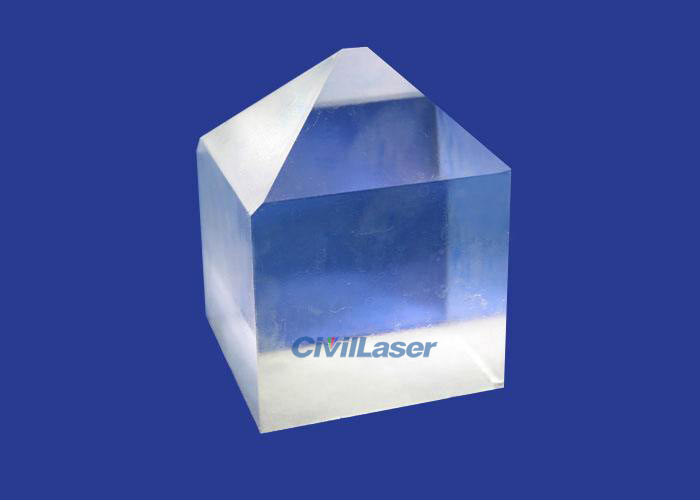

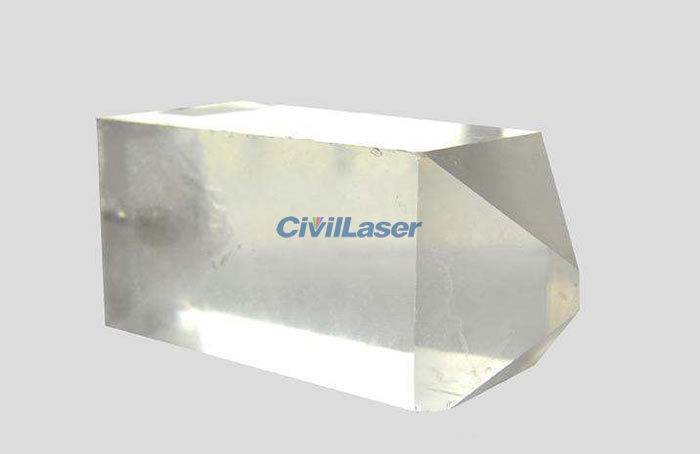

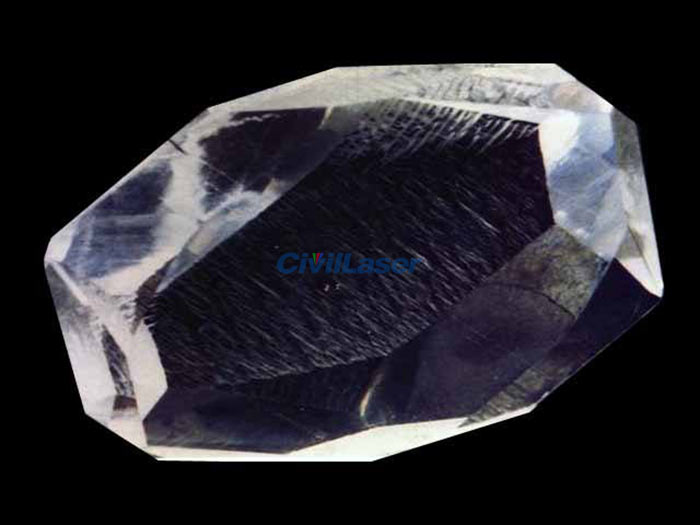

KDP DKDP Crystal Potassium Dihydrogen Phosphate and Potassium Nonlinear Crystals Customizable

$55.00

Add to Cart:


KDP DKDP Crystal Potassium Dihydrogen Phosphate and Potassium Nonlinear Crystals Customizable

Potassium Dihydrogen Phosphate (KDP) and Potassium Dideuterium Phosphate (KD*P ) are among the most widely-used commercial NLO materials, characterized by good UV transmission, high damage threshold, and high birefringence, though their NLO coefficients are relatively low. They are usually used for doubling, tripling and quadrupling of a Nd:YAG laser under the room temperature. In addition, they are also excellent electro-optic crystals with high electro-optic coefficients, widely used as electro-optical modulators, such as Q-switches, Pockels Cells, etc.

Note:
1. This is a customized product.
2. $55 is a deposit, not the final price of the product.
3. The main factors affecting the price: quantity, size, processing index.
4. Please provide crystal processing drawings or crystal size, membranes, quantity, processing index. (Contact us
5. Crystal customization time: 3~6 weeks.
6. Warranty: 1 year

Advantages:
1. Second, third, and fourth harmonic generation of Nd:lasers.
2. Frequency doubling of dyer laser.
3. High power laser frequency conversion materials.
4. Shutter for high speed photography.
5. Electro-optical modulator and Q switches.

KDP and KD*P(DKDP) Standard Orientation
Process (PM type) KDP KD*P (DKDP)
Orientation Deff(pm/V) Orientation Deff(pm/V)
SHG (II): 1064 nm -> 532 nm 58.9 0.34 53.5° 0.34
THG (II): 1064+532 -> 355 nm 58.4 0.37 59.4° 0.33
SFG (II): 1064+(421-1000 nm) -> 302-515 nm 61.0 0.36 63.7° 0.31
FHG (I): 532 nm -> 266nm 76.7 0.46 85.9° 0.43
NCPM FHG (I): 532 -> 266 nm 90°(T=250°C) 0.47 90°(T=55°C) 0.43
SHG (I): 1064 nm -> 532 nm 41.1 0.26 36.6° 0.22
THG(I): 1064+532 -> 355 nm 47.4 0.32 46.8° 0.29
