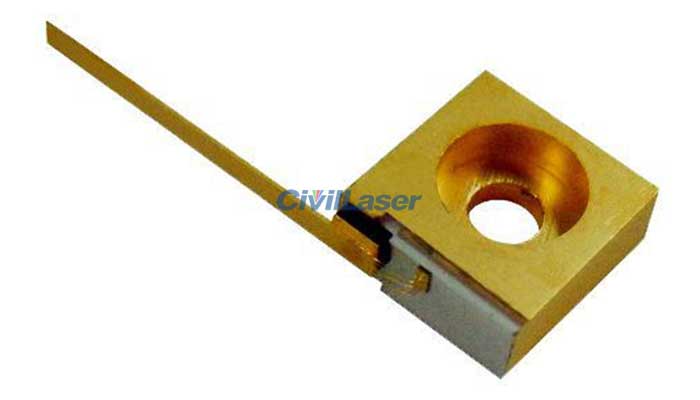

980nm 3W C-mount High Output Power Infrared Laser Diode JDSU

$153.00

Add to Cart:


  980nm 3W C-mount High Output Power Infrared Laser Diode JDSU

[Specifications]
Brand: JDSU
Wavelength: 980nm±10nm
Output Power: <3.1W
Reverse Voltage: 1.8V
Working current:<3400mA
Service Life: >10000hours
PD: without
Operating Temperature: -10 ~ +50ºC
Storage Temperature: -20 ~ +80ºC
Shell material: Metal
Surface treatment: gold plating
Package Type: C-mount



Category

Parameters

Unit

Minimum value

Typical value

Maximum value

Optical parameters

Output power

W

-

3



Lasing wavelength

nm

970

980

990

Spectral width

nm

-

2.3

3.0

Width of luminous zone

μm

-

150

-

temperature coefficient

nm/°C

-

0.30

-

Divergence angle of fast axis

deg

-

37

40

Divergence angle of slow axis

deg

-

8

10

Electrical Parameters

slope efficiency

W/A

1.00





Threshold current

A

-

0.64

0.75

Working current

A

-

3.40

3.60

Working voltage

V

-

1.75

2.00

Other parameters

Packaging method

-

C-mount/TO3

working temperature

°C

10~35

Storage temperature

°C

-10~60
