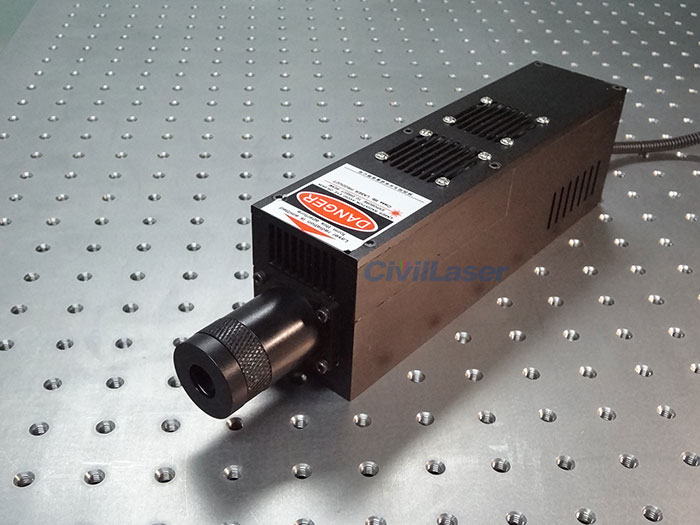

532nm 1.5W Software Control Laser System Green Laser Head and Power Supply One Machine
[Feature]
1. Computer instruction control
2. Electromechanical design
3. Compact structure
4. Excellent shock resistance
[Application]
1. Laser glare, glare deterrence
2. Environmental testing
3. Laser array
4. Special lighting

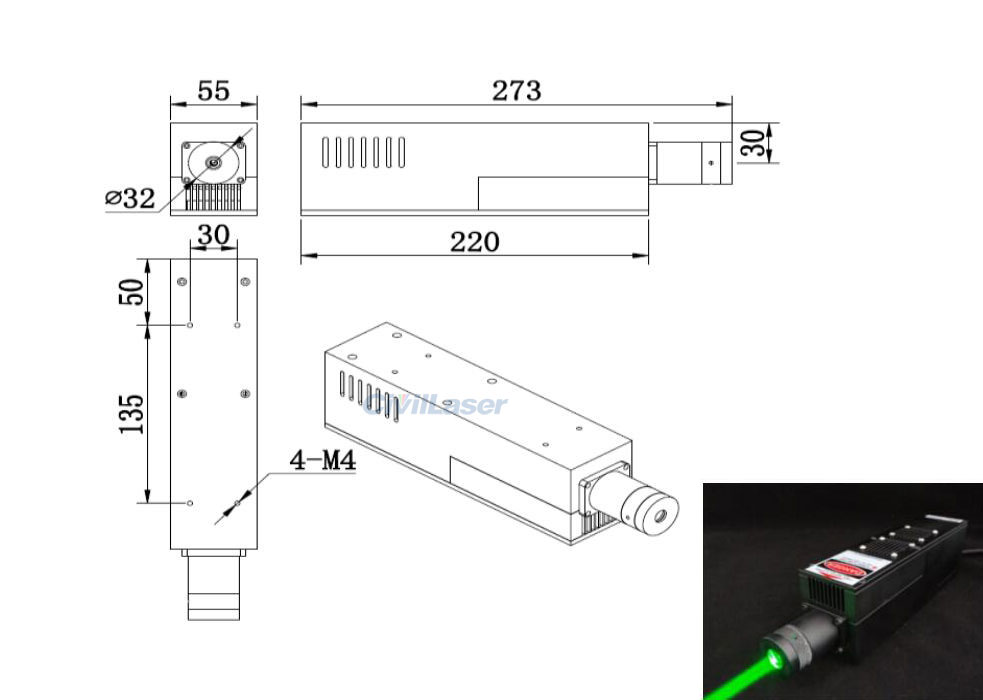

[Structural parameters]
Size: 273 (±0.5) × 55 (± 0.5) × 70 (± 0.5) (mm)
Weight: 1.5±0.1kg (including power supply)
Mounting Hole Position: 30 × 135 (mm)
Installation Suggestion: 4-M4; squat 8mm
Focusing Stroke: 5mm (corresponding to 0.2~10mrad divergence angle)
Light Height: 30mm (distance from the bottom plate)
[Specification]
| Parameter |
Unit |
Value |
| Wavelength |
nm |
532nm |
| Output Power |
mW |
≦1500 |
| Line Width |
△λ(nm) |
≦0.1 |
| Transverse Mode |
|
TEM00 |

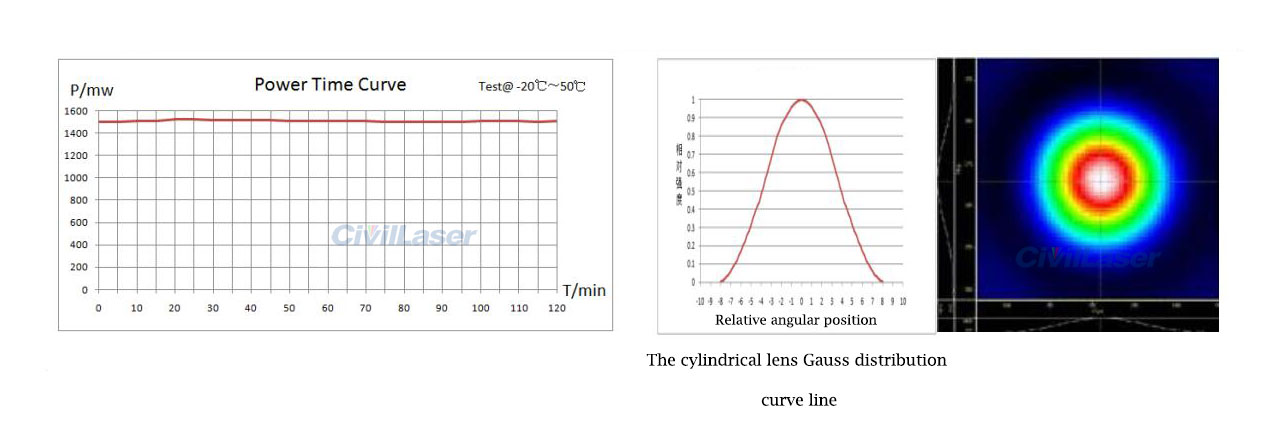

| Power Stability |
RMS |
≦3% (25°C & 4 hours test data) |
| Spot Stability |
mrad |
≦±0.05(25°C & 4 hours test data) |
| Spot Diameter |
mm@1/e2 |
≦10.0mm（1.2M&1000M） |
| Divergence Angle |
mrad |
≦0.2 (0.2-10mrad adjustable)） |
| M2 Factor |
|
≦3.0 |
| Power Density |
mW/cm2 |
0.2～2 |
| Polarization Ratio |
|
≧100:1 |
| Spot Roundness |
X% |
≧95% |
| Effective Working Distance |
M |
≧1000 |
| Adapter Power Supply |
|
Built-in SP-DC24V05A power supply |
| Operating Voltage |
V |
24V ±2VDC |
| Average Power Consumption |
W |
≦45.0 (25°C & 60 minutes) |
| Control Method |
|
RS 232 (computer control, V1.0 interactive interface) |
| Operation Mode |
|
CW (10-speed output)/ PW (with 1-20Hz) |
| Temperature Control Mode |
℃ |
TEC cooling / heating bidirectional thermostat (temperature control accuracy: 0.1°C) |
| Preheat Time |
min |
≦1 |
| Ambient Temperature |
℃ |
-10°C~+50°C |
| Environment Humidity |
X% |
20-85% RH-non-condensing |
| Storage Temperature |
°C |
-30℃~+70℃ |
| Storage Humidity |
X% |
10～95%RH |
| Vibration Test |
|
GBT 2423.43-2008/-15m/s2 5-200Hz |
| Impact Resistance |
|
IEC 60068-2-47:2005/-150 m/s2 11ms |
| Amplitude Noise |
rms |
≦1% （1～20MHz） |
| Service Life |
hrs |
≧10000 |
| Warranty Period |
year |
1 |
