Laser module power Supply DC 3V / 5V / 12V

$12.00

Please Choose:



Add to Cart:


Laser module power Supply DC 3V~12V


Input Characteristics‘
1, Voltage: operating voltage range of 100V ~ 240V AC voltage
2, Frequency: AC input voltage range of 47 ~ 63 Hz frequency
3, Current: maximum input current ≤ 20mA
4, The impact of current: Inrush current ≤ 50A
5, Protection: over voltage, over current, over temperature protection

Output Characteristics‘
1, The maximum output current: ≤ 2A ,Different voltage and current are different.
2, Power: Output Power Rating 4W
3, Ripple and noise: Ripple and noise: 30mV MAX.
4, Boot delay time: boot delay time ≤ 3S
5, Efficiency: ≥ 68% Power Efficiency


Reliability‘
At nominal input voltage, full load, ambient temperature of 40 degrees under the conditions of the supply MTBF is not less than 50,000 hours.

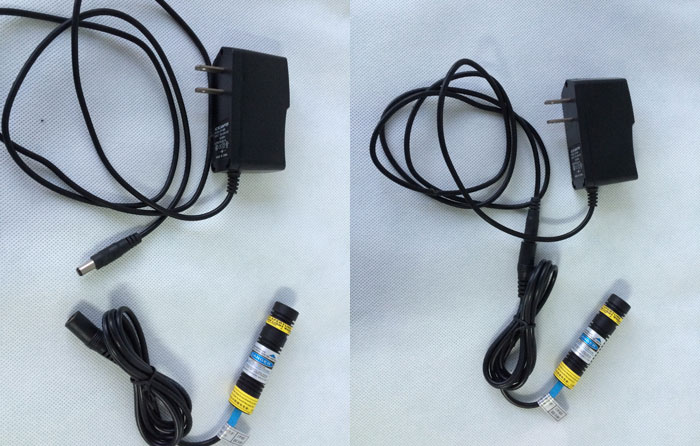

Input and output wiring‘
AC input line: flat head two plug input wire, cable length ≥ 1m;
DC output cable: 5.5mm DC plug wire, cable length ≥ 1m

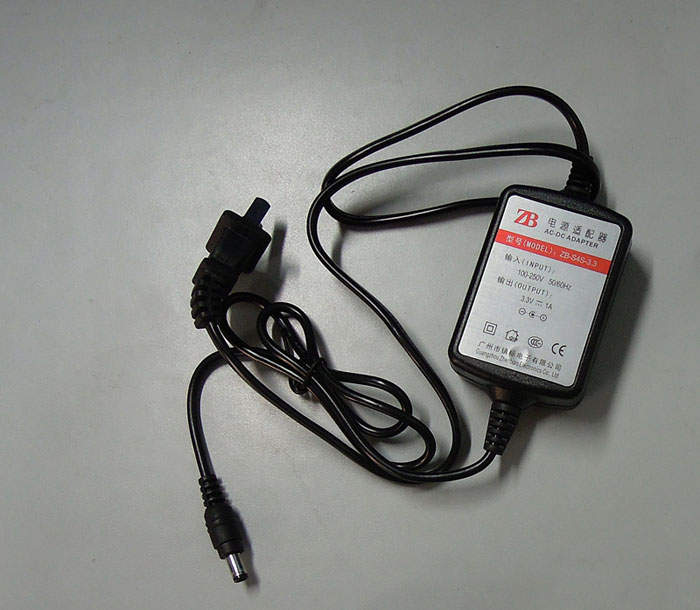

5V, 6V transformer style


3.3V transformer style
