QSI 850nm 5mW Laser Diode IR Laser QL85D6SX TO-18 5.6mm

QSI 850nm 5mW Laser Diode IR Laser QL85D6SX TO-18 5.6mm

QL85D6SA is a MOCVD grown 850nm band AlGaAs laser diode with quantum well structure. It's an attractive light source, with a typical light output power of 5mW for industrial optical module and sensor applications.

[Features]
1. Wavelength: 850nm(typ.)
2. Optical Power Output: 5mW CW
3. Package Type: TO-18 (5.6mm)
4. Built-in Photo Diode for Monitoring Laser Diode

[Applications]
1. Motion Recognition Sensor
2. Industrial Optical Module

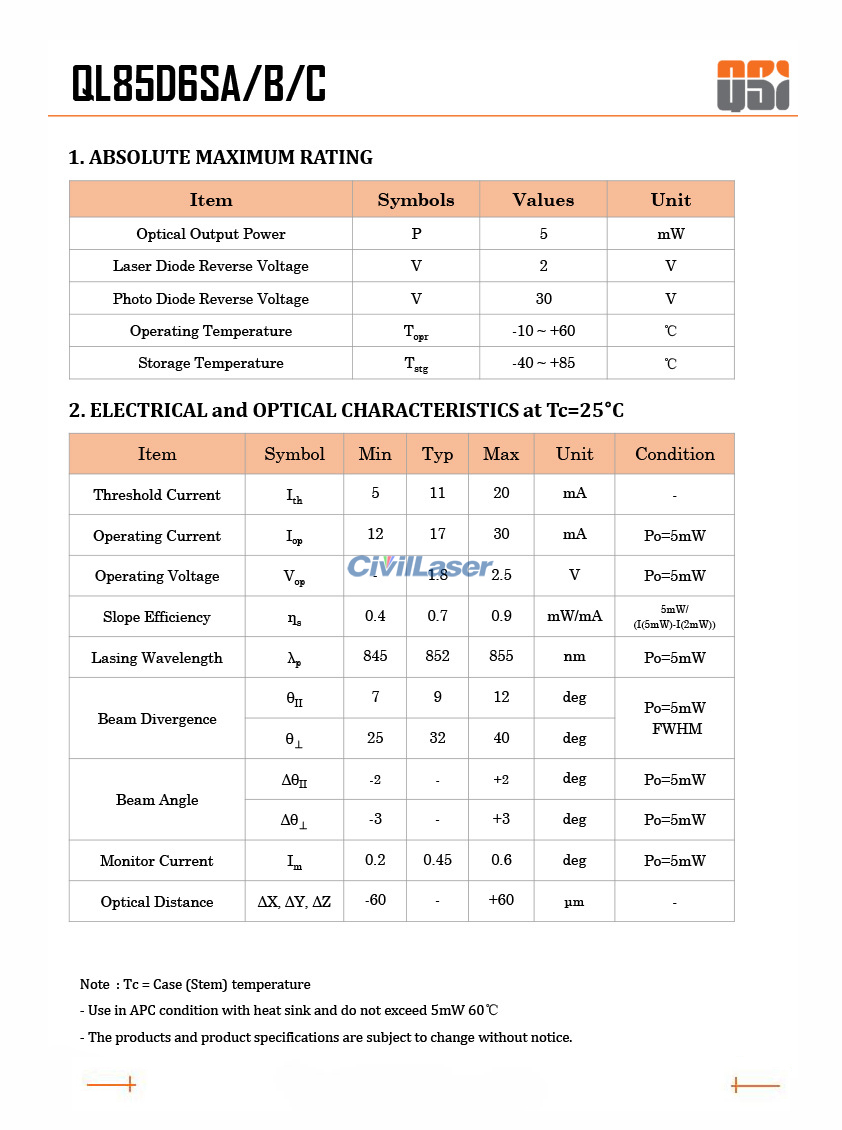

[Specification]
Product Name: Laser Diode
Model: QL85D6SX
Wavelength: 850nm
Output Power: 5mW
Laser Diode Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Operating Current: 17mA
Operating Voltage: 1.8V
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃

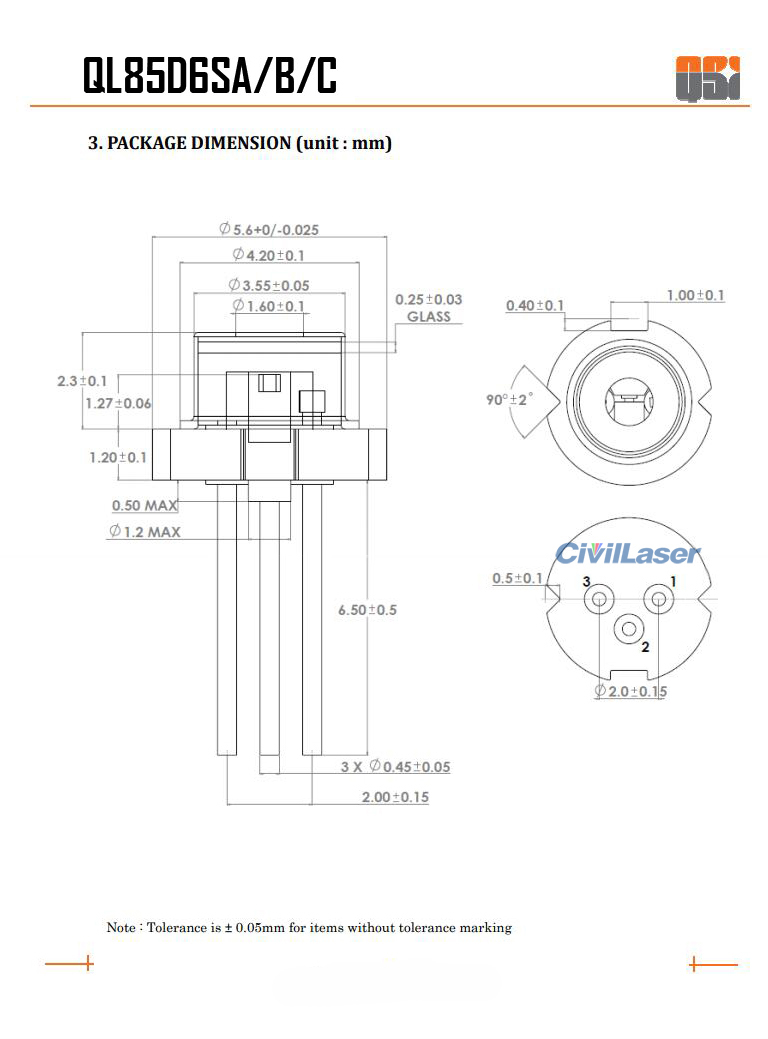

Package: TO18 (Φ5.6mm)
