QSI QL78M6SX LD 780nm 90mW Infrared Laser Diode For Sale

QSI QL78M6SX LD 780nm 90mW Infrared Laser Diode For Sale

[Features]
780nm infrared laser.
CW laser(Continuous wave).
Single transvers / TE mode laser.
5.6mm packages.

[Application]
Senor
Industrial optical module

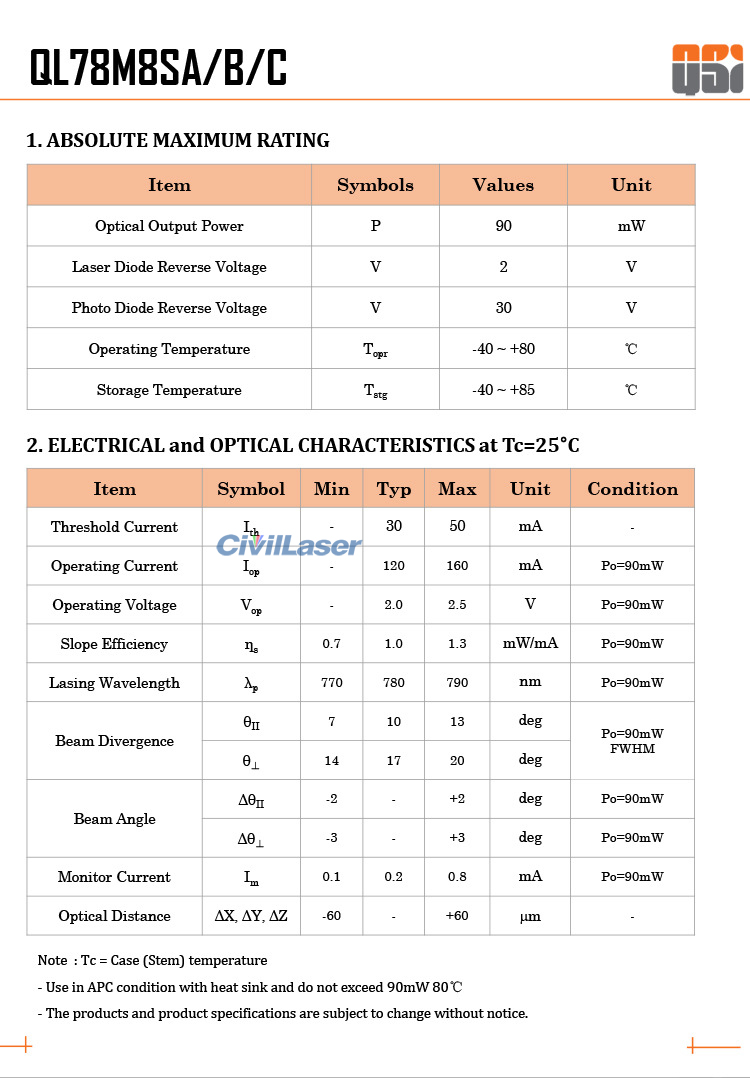

[Specification]
Product Name: Laser Diode
Model: QL78M6SX
Wavelength: 780nm
Output Power: 90mW
Laser Diode Reverse Voltage: 2V
Photo Diode Reverse Voltage: 30V
Operating Current: 120mA
Operating Voltage: 2.2V
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃

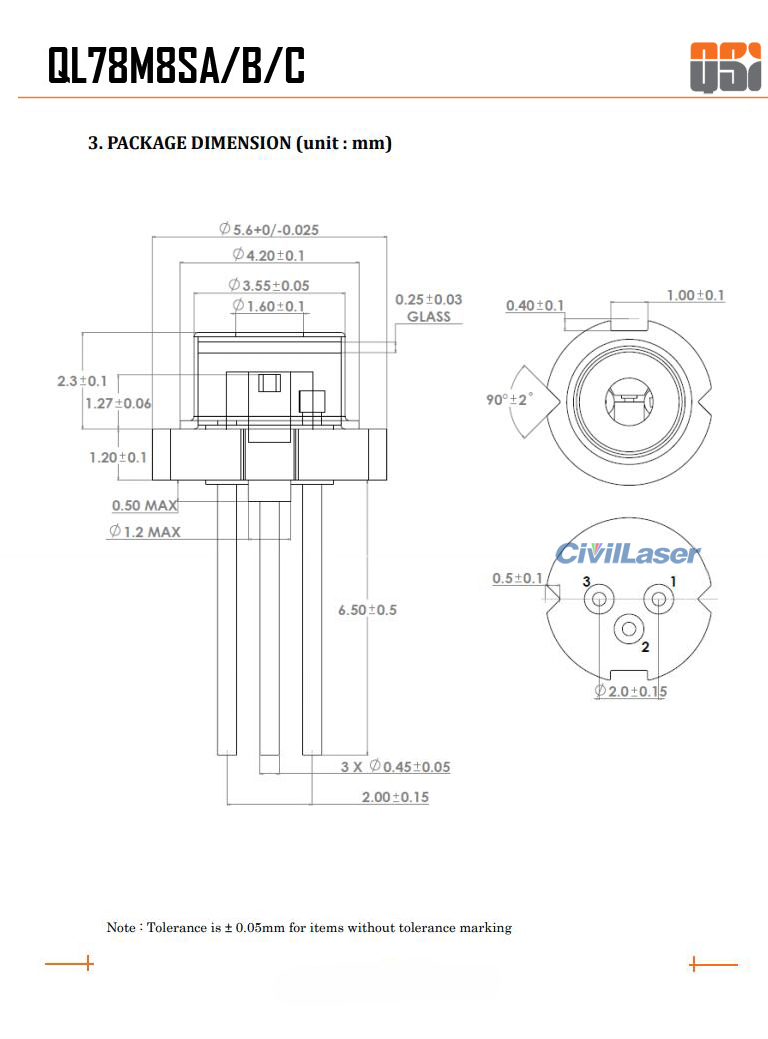

Package: TO18 (Φ5.6mm)

Note: There are other models of this diode, QL78M6SX, QL78M8SX ... If you need to contact us.
